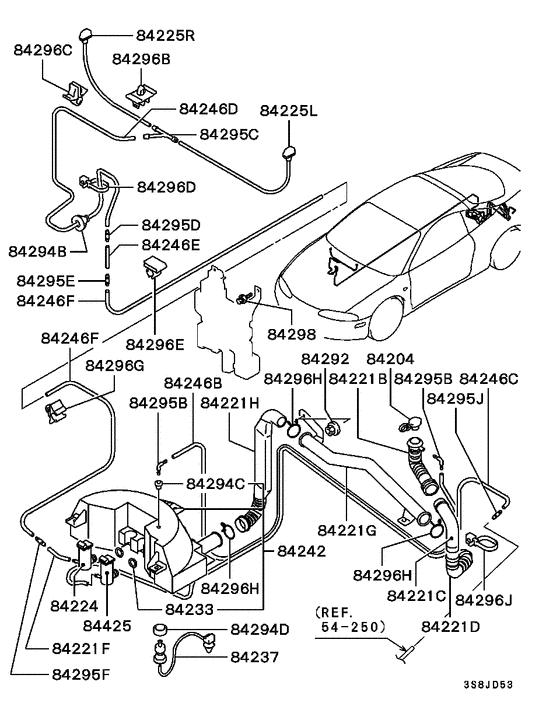

Windshield wiper & washer (WASHER TANK,NOZZLE,HOSE ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1996
- Sales region
- MMNA
- Note
- DOHC-TURBO,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84204
|
84204
MR155673
CAP, RR WINDOW WASHER TANK FILLER
|
MR155673 |
— | ||
|
84221B
|
84221B
MR191271 HOSE, WINDSHIELD WASHER TANK FILLER |
MR191271 |
US $2.96 |
||
|
84221C
|
84221C
MR191270 HOSE, WINDSHIELD WASHER TANK FILLER |
MR191270 |
US $2.96 |
||
|
84221D
|
84221D
MR191381 HOSE, WINDSHIELD WASHER TANK FILLER |
MR191381 |
US $3.40 |
||
|
84221F
|
84221F
MR191040 HOSE, WINDSHIELD WASHER TANK FILLER |
MR191040 |
US $7.70 |
||
|
84221G
|
84221G
MR191004 HOSE, WINDSHIELD WASHER TANK FILLER |
MR191004 |
US $10.51 |
||
|
84221H
|
84221H
MR191267
HOSE, WINDSHIELD WASHER TANK FILLER
|
MR191267 |
— | ||
|
84224
|
84224
MR155254
MOTOR, WINDSHIELD WASHER
|
MR155254 |
— | ||
|
84225L
|
84225L
MB882697 NOZZLE, WINDSHIELD WASHER, LH |
MB882697 |
US $38.99 |
||
|
84225R
|
84225R
MB882698
NOZZLE, WINDSHIELD WASHER, RH
|
MB882698 |
— | ||
|
84233
|
84233
MB617937
GASKET, RR WINDOW WASHER TANK
|
MB617937 |
— | ||
| replacement | |||||
|
84233
|
84233
MC845482 GASKET, WINDSHIELD WASHER MOTOR |
MC845482 |
from US $0.96 |
||
|
84237
|
84237
MR191065
SWITCH, WINDSHIELD WASHER TANK FLUID LEVEL
|
MR191065 |
— | ||
|
84242
|
84242
MR155253 TANK ASSY, WINDSHIELD WASHER |
MR155253 |
US $105.08 |
||
|
84246B
|
84246B
MR192158 TUBE, WINDSHIELD WASHER |
MR192158 |
US $13.47 |
||
|
84246C
|
84246C
MR191007 TUBE, WINDSHIELD WASHER |
MR191007 |
US $8.14 |
||
|
84246D
|
84246D
MR191055 TUBE, WINDSHIELD WASHER |
MR191055 |
US $2.52 |
||
|
84246E
|
84246E
MR191056 TUBE, WINDSHIELD WASHER |
MR191056 |
US $14.80 |
||
|
84246F
|
84246F
MR191057 TUBE, WINDSHIELD WASHER |
MR191057 |
US $25.16 |
||
|
84292
|
84292
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
84294B
|
84294B
MR191058 GROMMET, WINDSHIELD WASHER |
MR191058 |
US $2.52 |
||
|
84294C
|
84294C
MR191067 GROMMET, WINDSHIELD WASHER |
MR191067 |
US $5.92 |
||
|
84294D
|
84294D
MR191066
GROMMET, WINDSHIELD WASHER
|
MR191066 |
— | ||
|
84295B
|
84295B
MB330645 JOINT, HOOD LOCK |
MB330645 |
US $5.20 |
||
|
84295C
|
84295C
MR191054 JOINT, WINDSHIELD WASHER |
MR191054 |
US $2.74 |
||
|
84295D
|
84295D
MB229708 JOINT, WINDSHIELD WASHER |
MB229708 |
from US $1.63 |
||
|
84295D
|
84295D
MR191060 JOINT, WINDSHIELD WASHER |
MR191060 |
US $3.26 |
||
|
84295E
|
84295E
MB229708 JOINT, WINDSHIELD WASHER |
MB229708 |
from US $1.63 |
||
|
84295E
|
84295E
MR191060 JOINT, WINDSHIELD WASHER |
MR191060 |
US $3.26 |
||
|
84295F
|
84295F
MR191069 JOINT, WINDSHIELD WASHER |
MR191069 |
US $2.37 |
||
|
84295J
|
84295J
MB083730 JOINT, RR WINDOW WASHER |
MB083730 |
from US $1.07 |
||
|
84296B
|
84296B
MU481137 CLIP, WINDSHIELD WASHER6x2 |
MU481137 |
US $7.39 |
||
|
84296C
|
84296C
MU481009 CLIP, WINDSHIELD WASHER8 |
MU481009 |
US $2.60 |
||
|
84296D
|
84296D
MB875330 CLIP, WINDSHIELD WASHER |
MB875330 |
US $3.40 |
||
|
84296E
|
84296E
MB952413 CLIP, WINDSHIELD WASHER |
MB952413 |
US $4.74 |
||
|
84296G
|
84296G
MB952475 CLIP, WINDSHIELD WASHER7 |
MB952475 |
US $3.11 |
||
|
84296H
|
84296H
MB337922 CLIP, WINDSHIELD WASHER |
MB337922 |
US $4.10 |
||
|
84296J
|
84296J
MB875330 CLIP, WINDSHIELD WASHER |
MB875330 |
US $3.40 |
||
|
84298
|
84298
MS240143 BOLT, FUEL LINEWasher assembled,6x25 |
MS240143 |
US $3.83 |
||
|
84425
|
84425
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $69.83 |
||
|
54 250
|
Rear window wiper & washer
54 250
|
||||
