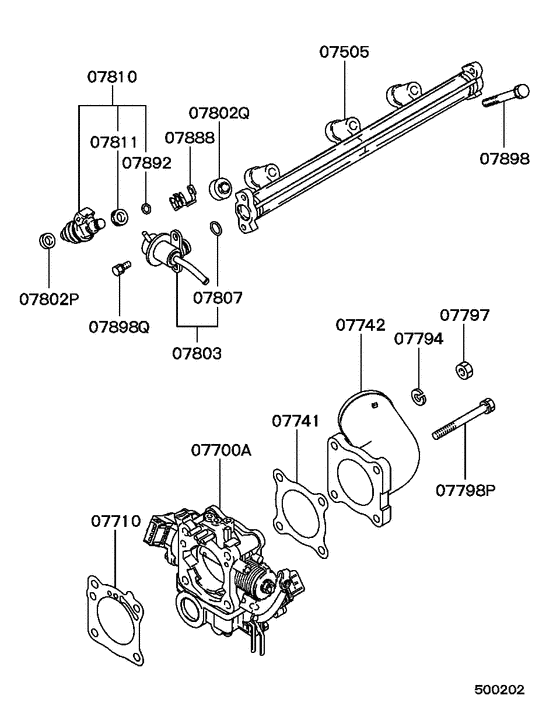

Injector & throttle body (ALL (ASSEMBLY)) Diagram Mitsubishi ECLIPSE
- Year
- 1994 - 1999
- Sales region
- MMNA/MMNA
- Note
- GSX,5FM/T FED
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GSX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD185372 PIPE, FUEL DELIVERY |
MD185372 |
US $342.16 |
||
|
07505
|
07505
MD322834 PIPE, FUEL DELIVERY |
MD322834 |
US $279.72 |
||
|
07700A
|
07700A
MD312463
Throttle Body Assy
|
MD312463 |
— | ||
|
07700A
|
07700A
MD345759
Throttle Body Assy
|
MD345759 |
— | ||
|
07710
|
07710
MD180360
GASKET, THROTTLE BODY
|
MD180360 |
— | ||
| replacement | |||||
|
07710
|
07710
MD184046 GASKET, THROTTLE BODY |
MD184046 |
from US $2.81 |
||
|
07741
|
07741
MD302262 GASKET, THROTTLE BODY AIR FITTING |
MD302262 |
US $8.76 |
||
|
07742
|
07742
MD302260 FITTING, THROTTLE BODY AIR HOSE |
MD302260 |
US $106.56 |
||
|
07794
|
07794
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
07797
|
07797
MD614305 NUT, THROTTLE BODY |
MD614305 |
US $2.74 |
||
|
07797
|
07797
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
07798P
|
07798P
MF241268 BOLT, ENG OIL PANWasher assembled,8x75 |
MF241268 |
US $1.37 |
||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07803
|
07803
MD315315 REGULATOR, MPI DELIVERY PIPE PRESSURE |
MD315315 |
US $126.54 |
||
|
07807
|
07807
MD604696 O-RING, FUEL REGULATOR7.8 |
MD604696 |
US $6.43 |
||
|
07810
|
07810
MD186379
INJECTOR KIT, FUEL
|
MD186379 |
— | ||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07888
|
07888
MD148971
SUPPORT, FUEL INJECTOR
|
MD148971 |
— | ||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07898
|
07898
MF240066 BOLT, FUEL INJECTORWasher assembled,8x65 |
MF240066 |
US $2.46 |
||
|
07898Q
|
07898Q
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
