Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
87012	87012 MB899051 BRACKET, A/C RECEIVER	MB899051	US $42.18
87012	87012 MR315858 BRACKET, A/C RECEIVER	MR315858	US $46.62
87035	87035 MB899044 HOSE, A/C COMPRESSOR DISCHARGE	MB899044	—
87035	87035 MR315085 HOSE, A/C COMPRESSOR DISCHARGE	MR315085	—
87036	87036 MB899043 HOSE, A/C COMPRESSOR SUCTION	MB899043	US $170.20
87036	87036 MR270769 HOSE,A/C COMPRESSOR SUCTION	MR270769	—
87036	87036 MR315083 HOSE, A/C COMPRESSOR SUCTION	MR315083	—
87039	87039 MB380842 INSULATOR, A/C CONDENSER	MB380842	—
87051	87051 MB899045 PIPE, A/C CONDENSER OUTLET	MB899045	—
87051	87051 MR315818 PIPE, A/C CONDENSER OUTLET	MR315818	—
87054B	87054B MB899046 PIPE, A/C RECEIVER OUTLET	MB899046	US $39.96
87054B	87054B MR315819 PIPE, A/C RECEIVER OUTLET	MR315819	US $40.70
87054C	87054C MB899047 PIPE, A/C RECEIVER OUTLET	MB899047	—
87065A	87065A MR270457 RECEIVER ASSY,A/C	MR270457	—
87582C	87582C MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
87582C	87582C MS440518 NUT, ENG OIL COOLER Washer assembled,8	MS440518	from US $0.82
87585	87585 MU481044 CLIP, WINDSHIELD WASHER 8	MU481044	from US $1.87
87586C	87586C MB917485 CLAMP, A/C PIPING	MB917485	—
87587	87587 MB917487 BRACKET, A/C PIPING	MB917487	—
87588C	87588C MF243628 BOLT, CONNROD Washer assembled,6x25	MF243628	US $0.55
87588C	87588C MF244228 BOLT, A/C PIPING Washer assembled,6x25	MF244228	US $1.92
87588D	87588D MF243630 BOLT, FUEL TANK Washer assembled,6x30	MF243630	US $2.33
87588D	87588D MF244230 BOLT, A/C CONDENSER Washer assembled,6x30	MF244230	US $4.59
87588E	87588E MF243655 BOLT, ROCKER COVER Washer assembled,8x30	MF243655	from US $1.46
87588E	87588E MF244255 BOLT, A/C PIPING Washer assembled,8x30	MF244255	US $2.96
87588F	87588F MS240144 BOLT, FUEL LINE Washer assembled,6x30	MS240144	US $2.07
87588G	87588G MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
87588G	87588G MS240581 BOLT, BRAKE FLUID LINE Washer assembled,6x16	MS240581	US $2.60
87588H	87588H MF243626 BOLT, ENG WIRING Washer assembled,6x20	MF243626	US $2.60
87668B	87668B MB946605 O-RING, RR A/C 1/2	MB946605	from US $1.56
87668B	87668B MR117054 O-RING, A/C PIPING	MR117054	US $2.44
	replacement
87668B	87668B 9491420020 O-RING, A/C PIPING	9491420020	US $3.01
87668C	87668C MR117055 O-RING, A/C PIPING	MR117055	US $2.63
	replacement
87668C	87668C 9491420030 O-RING, A/C PIPING	9491420030	US $3.28
87668C	87668C MR117263 O-RING, A/C PIPING 3/4	MR117263	from US $1.60
87668C	87668C MR146634 O-RING, A/C PIPING 5/8	MR146634	from US $0.92
87668D	87668D MB946604 O-RING, RR A/C	MB946604	from US $0.82
87668E	87668E MB946604 O-RING, RR A/C	MB946604	from US $0.82
87668F	87668F MB946604 O-RING, RR A/C	MB946604	from US $0.82
87698	87698 MB380841 BUSHING, A/C CONDENSER	MB380841	—

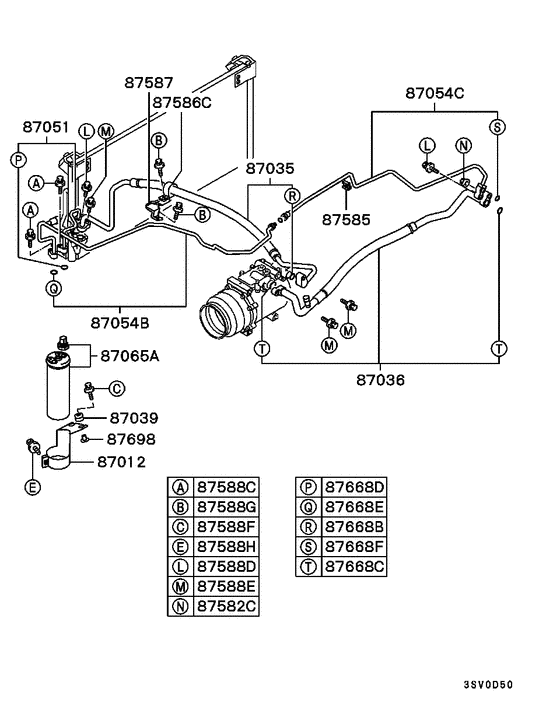

A/c condenser, piping (A/C PIPING) Diagram Mitsubishi ECLIPSE MMNA/MMNA 1876583-164409

A/c condenser, piping (A/C PIPING) Diagram Mitsubishi ECLIPSE MMNA/MMNA 1876583-164409
