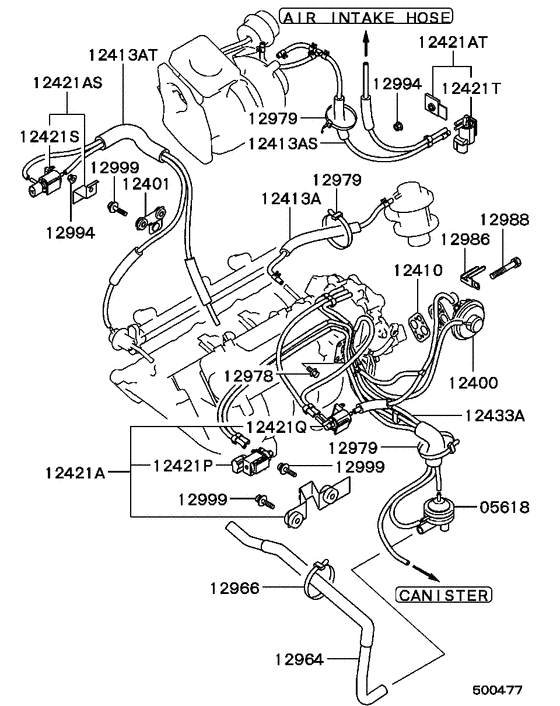

Emission control (-9706.3) Diagram Mitsubishi ECLIPSE
- Year
- 1994 - 1999
- Sales region
- MMNA/MMNA
- Note
- GSX,5FM/T CAL
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GSX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD011227
VALVE, PURGE CONTROL
|
MD011227 |
— | ||
|
12400
|
12400
MD199373
VALVE,EGR
|
MD199373 |
— | ||
|
12401
|
12401
MR126454 BRACKET, EMISSION CONTROL EQUIP |
MR126454 |
US $19.98 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD126566 HOSE ASSY, EMISSION VACUUM CONTROL |
MD126566 |
US $39.22 |
||
|
12413A
|
12413A
MR204301
HOSE ASSY,EMISSION VACUUM CONTROL
|
MR204301 |
— | ||
|
12413AS
|
12413AS
MR127538
HOSE ASSY, EMISSION VACUUM CONTROL
|
MR127538 |
— | ||
|
12413AT
|
12413AT
MR127550
HOSE ASSY, EMISSION VACUUM CONTROL
|
MR127550 |
— | ||
|
12421A
|
12421A
MB924421 VALVE ASSY,EMISSION SOLENOID |
MB924421 |
US $156.88 |
||
|
12421A
|
12421A
MR312542
VALVE ASSY,EMISSION SOLENOID
|
MR312542 |
— | ||
|
12421A
|
12421A
MR312748
VALVE ASSY,EMISSION SOLENOID
|
MR312748 |
— | ||
|
12421AS
|
12421AS
MR126455 VALVE ASSY, EMISSION SOLENOID |
MR126455 |
US $72.52 |
||
|
12421AT
|
12421AT
MR127560
VALVE ASSY, EMISSION SOLENOID
|
MR127560 |
— | ||
|
12421P
|
12421P
MB925799
VALVE,EMISSION SOLENOID
|
MB925799 |
— | ||
| replacement | |||||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421P
|
12421P
MR323106
VALVE,EMISSION SOLENOID
|
MR323106 |
— | ||
|
12421Q
|
12421Q
MB957046
VALVE, EMISSION SOLENOID
|
MB957046 |
— | ||
|
12421Q
|
12421Q
MR187000
VALVE,EMISSION SOLENOID
|
MR187000 |
— | ||
|
12421S
|
12421S
MD113721 VALVE, EMISSION SOLENOID |
MD113721 |
US $78.66 |
||
|
12421T
|
12421T
MD145201 VALVE, EMISSION SOLENOID |
MD145201 |
US $82.76 |
||
|
12433A
|
12433A
MR126451
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR126451 |
— | ||
|
12433A
|
12433A
MR323386
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR323386 |
— | ||
|
12964
|
12964
MR160451
HOSE,FUEL VAPOR CONTROL
|
MR160451 |
— | ||
|
12966
|
12966
MD107115 BAND, AIR CLEANER320 |
MD107115 |
US $4.92 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978
|
12978
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12979
|
12979
MD107115 BAND, AIR CLEANER320 |
MD107115 |
US $4.92 |
||
|
12986
|
12986
MB043630 CLIP, CRUISE CONTROL EQUIP8.5-40/55 |
MB043630 |
US $2.96 |
||
| replacement | |||||
|
12986
|
12986
MB305867 CLIP, SPEEDOMETER CABLE8.5-50/65 |
MB305867 |
US $4.65 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12994
|
12994
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
12999
|
12999
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
