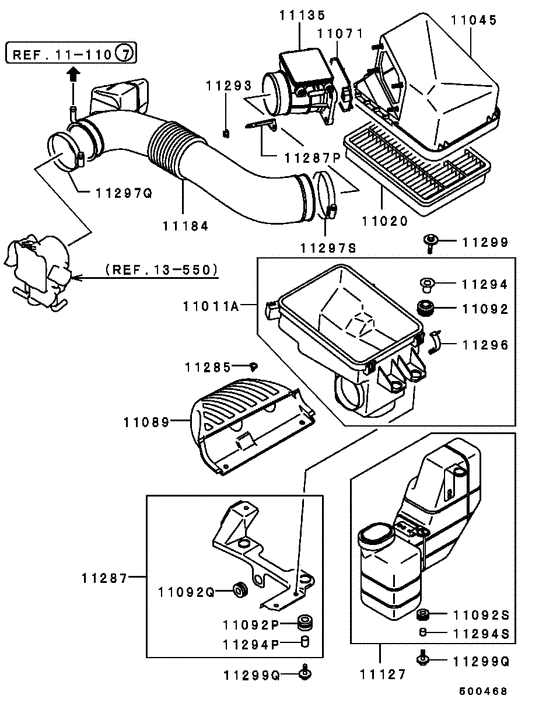

Air cleaner (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1999 - 2005
- Sales region
- MMNA/MMNA
- Note
- M-LINE(RS),5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MR450010
BODY ASSY,AIR CLEANER
|
MR450010 |
— | ||
|
11020
|
11020
MB906051 ELEMENT, AIR CLEANERNon woven |
MB906051 |
US $71.14 |
||
|
11045
|
11045
MR597284
COVER,AIR CLEANER
|
MR597284 |
— | ||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $7.16 |
||
|
11089
|
11089
MR355476
DUCT,AIR CLEANER INTAKE
|
MR355476 |
— | ||
|
11092
|
11092
MR450011 INSULATOR, AIR CLEANER SUPPORT |
MR450011 |
US $4.59 |
||
|
11092P
|
11092P
MD620591 INSULATOR, AIR CLEANER SUPPORT |
MD620591 |
US $5.20 |
||
|
11092Q
|
11092Q
MR431992 INSULATOR, AIR CLEANER SUPPORT |
MR431992 |
US $4.14 |
||
|
11092S
|
11092S
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11127
|
11127
MR355480
RESONATOR,AIR CLEANER
|
MR355480 |
— | ||
|
11135
|
11135
MD336501 SENSOR, AIR CLEANER AIR FLOW |
MD336501 |
from US $613.81 |
||
|
11184
|
11184
MR323263
DUCT,AIR CLEANER TO THROTTLE BODY
|
MR323263 |
— | ||
|
11285
|
11285
MB345544 CLIP, RADIATOR GRILLE6.5-7.5 |
MB345544 |
from US $2.69 |
||
|
11285
|
11285
MB476821 CLIP, SPLASH SHIELD |
MB476821 |
from US $1.17 |
||
|
11287
|
11287
MR340991 BRACKET, AIR CLEANER |
MR340991 |
US $34.78 |
||
|
11287P
|
11287P
MD365766 BRACKET, AIR CLEANER |
MD365766 |
US $6.07 |
||
|
11293
|
11293
M945407 NUT, CRUISE CONTROL EQUIPFlange,6 |
M945407 |
US $2.19 |
||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
11294
|
11294
MR450012 COLLAR, AIR CLEANER |
MR450012 |
US $3.55 |
||
|
11294P
|
11294P
MR431130 COLLAR, AIR CLEANER |
MR431130 |
US $3.26 |
||
|
11294S
|
11294S
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11296
|
11296
MD620849 CLAMP, AIR CLEANER INR |
MD620849 |
US $3.55 |
||
|
11297Q
|
11297Q
MR464827 CLAMP, AIR CLEANER81 |
MR464827 |
from US $2.96 |
||
|
11297S
|
11297S
MR464828 CLAMP, AIR CLEANER91 |
MR464828 |
US $5.18 |
||
|
11299
|
11299
MD305640 BOLT, AIR CLEANERWasher assembled,6x35 |
MD305640 |
from US $1.70 |
||
|
11299Q
|
11299Q
MS240603 BOLT, RR BUMPERWasher assembled,6x25 |
MS240603 |
US $2.74 |
||
|
