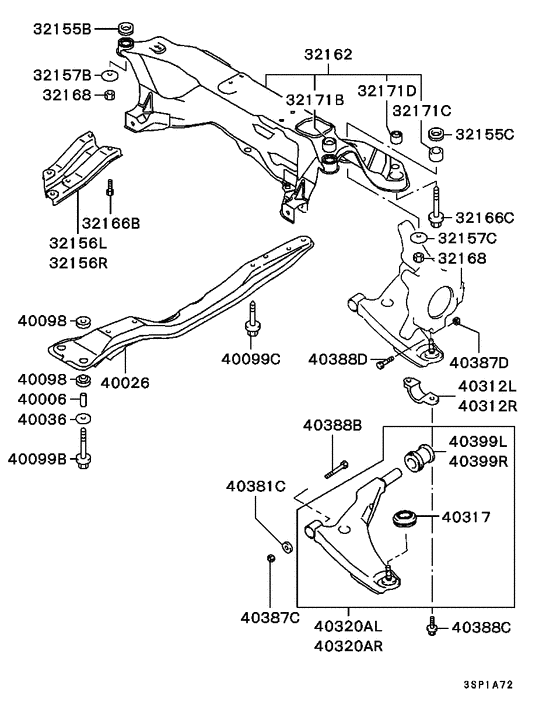

Front susp arm & member (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1999 - 2005
- Sales region
- MMNA/MMNA
- Note
- M-LINE(RS),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32155B
|
32155B
MB910464
STOPPER, FR AXLE CROSSMEMBER
|
MB910464 |
— | ||
|
32155C
|
32155C
MB910170
STOPPER, FR AXLE CROSSMEMBER
|
MB910170 |
— | ||
|
32156L
|
32156L
MR297605
STAY,FR AXLE CROSSMEMBER,LH
|
MR297605 |
— | ||
|
32156R
|
32156R
MR297606
STAY,FR AXLE CROSSMEMBER,RH
|
MR297606 |
— | ||
|
32157B
|
32157B
MB303625 PLATE, FR AXLE CROSSMEMBER MOUNTING |
MB303625 |
US $8.21 |
||
|
32157C
|
32157C
MB303624
PLATE, FR AXLE CROSSMEMBER MOUNTING
|
MB303624 |
— | ||
|
32162
|
32162
MR333609
CROSSMEMBER,FR AXLE,NO.1
|
MR333609 |
— | ||
|
32162
|
32162
MR554604
CROSSMEMBER,FR AXLE,NO.1
|
MR554604 |
— | ||
|
32166B
|
32166B
MN101117
BOLT,FR AXLE CROSSMEMBER
|
MN101117 |
— | ||
|
32166B
|
32166B
MU240137 BOLT, FR AXLE CROSSMEMBERWasher assembled,10x22 |
MU240137 |
US $7.66 |
||
|
32166C
|
32166C
MR198095 BOLT, FR AXLE CROSSMEMBERFlange,12x90 |
MR198095 |
US $7.99 |
||
|
32168
|
32168
MB242260 NUT, FR AXLE CROSSMEMBERSelf locking,12 |
MB242260 |
from US $3.56 |
||
|
32171B
|
32171B
MB870742 BUSHING, FR AXLE CROSSMEMBER |
MB870742 |
US $17.76 |
||
|
32171C
|
32171C
MB871921
BUSHING, FR AXLE CROSSMEMBER
|
MB871921 |
— | ||
|
32171D
|
32171D
MB949518
BUSHING, FR AXLE CROSSMEMBER
|
MB949518 |
— | ||
| replacement | |||||
|
32171D
|
32171D
MR244103
BUSHING, FR AXLE CROSSMEMBER
|
MR244103 |
— | ||
|
40006
|
40006
MB303651 COLLAR, FR AXLE CROSSMEMBER |
MB303651 |
from US $6.90 |
||
|
40026
|
40026
MR403010
MEMBER,FR SUSP,CTR
|
MR403010 |
— | ||
|
40036
|
40036
MB303652 STOPPER, FR AXLE CROSSMEMBER |
MB303652 |
US $6.16 |
||
|
40098
|
40098
MR311113
BUSHING, FR SUSP CTR MEMBER
|
MR311113 |
— | ||
|
40099B
|
40099B
MB176061 BOLT, ENG SUPPORT RODFlange,12x90 |
MB176061 |
US $10.94 |
||
|
40099C
|
40099C
MU240023
BOLT, FR AXLE CROSSMEMBER
|
MU240023 |
— | ||
|
40312L
|
40312L
MR297476
BRACKET,FR SUSP LWR ARM,RR LH
|
MR297476 |
— | ||
|
40312R
|
40312R
MR297477
BRACKET,FR SUSP LWR ARM,RR RH
|
MR297477 |
— | ||
|
40317
|
40317
MR369807
COVER, FR SUSP LWR ARM BALL JOINT
|
MR369807 |
— | ||
|
40320AL
|
40320AL
MR455737
ARM ASSY,FR SUSP,LWR LH
|
MR455737 |
— | ||
|
40320AL
|
40320AL
MR554375 ARM ASSY, FR SUSP, LWR LH |
MR554375 |
US $284.16 |
||
|
40320AR
|
40320AR
MR455738
ARM ASSY,FR SUSP,LWR RH
|
MR455738 |
— | ||
|
40320AR
|
40320AR
MR554376 ARM ASSY, FR SUSP, LWR RH |
MR554376 |
US $284.16 |
||
|
40381C
|
40381C
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
40387C
|
40387C
MB288463 NUT, FR WHEEL HUBFlange self locking,12 |
MB288463 |
US $3.42 |
||
|
40387C
|
40387C
MU000634 NUT, FR AXLE CROSSMEMBERFlange self locking,12 |
MU000634 |
US $3.11 |
||
|
40387C
|
40387C
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.21 |
||
|
40387D
|
40387D
MB288463 NUT, FR WHEEL HUBFlange self locking,12 |
MB288463 |
US $3.42 |
||
|
40387D
|
40387D
MU000634 NUT, FR AXLE CROSSMEMBERFlange self locking,12 |
MU000634 |
US $3.11 |
||
|
40388B
|
40388B
MB242334 BOLT, FR SUSP LWR ARM12x135 |
MB242334 |
US $7.93 |
||
|
40388C
|
40388C
MF140281 BOLT, A/SUSP AIR LINEFlange,12x20 |
MF140281 |
from US $1.44 |
||
|
40388D
|
40388D
MU140029 BOLT, FR SUSP LWR ARM |
MU140029 |
from US $2.59 |
||
|
40399L
|
40399L
MR455736 BUSHING,FR SUSP LWR ARM,LH |
MR455736 |
US $13.86 |
||
|
40399L
|
40399L
MR554381 BUSHING, FR SUSP LWR ARM, LH |
MR554381 |
US $131.72 |
||
|
40399R
|
40399R
MR455736 BUSHING,FR SUSP LWR ARM,LH |
MR455736 |
US $13.86 |
||
|
40399R
|
40399R
MR554382 BUSHING, FR SUSP LWR ARM, RH |
MR554382 |
US $131.72 |
||
