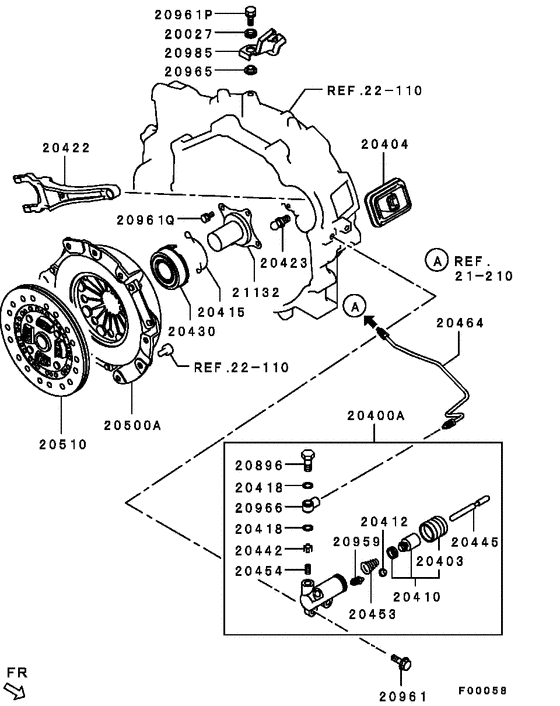

Clutch & clutch release (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 2006 - 2008
- Sales region
- MMNA/MMNA
- Note
- H-LINE(SE),5FM/T FED
- transmission
- 5FM/T
- grade
- H-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20027
|
20027
MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET |
MD724003 |
US $5.06 |
||
|
20400A
|
20400A
2324A007
CYLINDER ASSY,CLUTCH RELEASE
|
2324A007 |
— | ||
|
20403
|
20403
MD621006 BOOT, CLUTCH RELEASE CYLINDER |
MD621006 |
from US $4.80 |
||
|
20404
|
20404
MD747413 BOOT, CLUTCH RELEASE FORK |
MD747413 |
from US $5.54 |
||
|
20410
|
20410
MD978907 CYLINDER KIT, CLUTCH RELEASE |
MD978907 |
from US $15.70 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.79 |
||
|
20422
|
20422
MD747524 FORK, CLUTCH RELEASE |
MD747524 |
from US $58.97 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20430
|
20430
MD722744 BEARING, CLUTCH RELEASEBall,65.6 |
MD722744 |
from US $52.67 |
||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD621021 PLATE, CLUTCH RELEASE CYLINDER VALVE |
MD621021 |
US $5.92 |
||
|
20445
|
20445
MD621009 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD621009 |
from US $11.76 |
||
|
20453
|
20453
MD621008 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD621008 |
US $4.10 |
||
|
20454
|
20454
MD621022 SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE |
MD621022 |
from US $1.46 |
||
|
20464
|
20464
2348A023
TUBE,CLUTCH RELEASE CYLINDER
|
2348A023 |
— | ||
|
20500A
|
20500A
2304A006
COVER ASSY,CLUTCH
|
2304A006 |
— | ||
|
20510
|
20510
2301A011
DISC,CLUTCH
|
2301A011 |
— | ||
|
20896
|
20896
MR453155 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MR453155 |
US $4.88 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961
|
20961
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
20961P
|
20961P
MF244852 BOLT, A/T CASEWasher assembled,8x22 |
MF244852 |
US $1.50 |
||
|
20961Q
|
20961Q
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
20965
|
20965
MD724004 WASHER, M/T CLUTCH CONTROL EQUIP8.4 |
MD724004 |
US $3.56 |
||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
20985
|
20985
MN168828
BRACKET,M/T CLUTCH CONTROL EQUIP
|
MN168828 |
— | ||
|
21132
|
21132
MD747279 RETAINER, M/T CASE FR BEARING |
MD747279 |
from US $7.43 |
||
|
21 210
|
Clutch control
21 210
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
