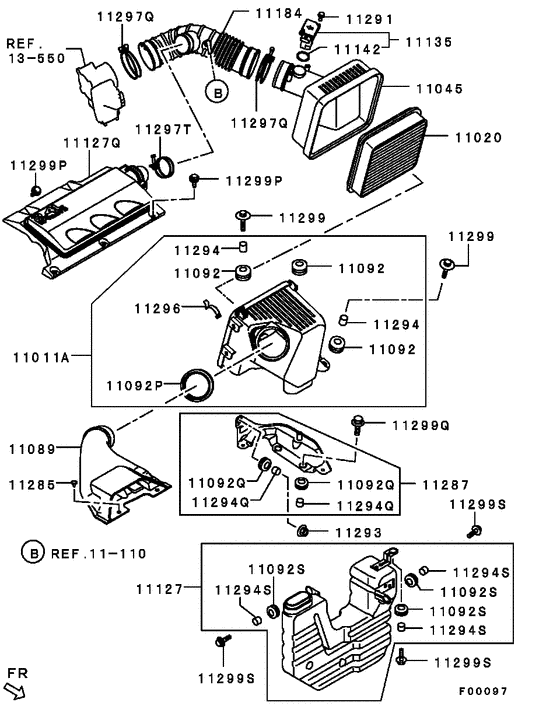

Air cleaner (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 2005 - 2009
- Sales region
- MMNA/MMNA
- Note
- H-LINE(GS/SINGLE MUFFLER),S4FA/T FED
- transmission
- S4FA/T
- grade
- H-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MN180007 BODY ASSY,AIR CLEANER |
MN180007 |
US $123.44 |
||
|
11020
|
11020
MR571396 ELEMENT,AIR CLEANER |
MR571396 |
US $34.48 |
||
|
11045
|
11045
1500A323
COVER,AIR CLEANER
|
1500A323 |
— | ||
|
11045
|
11045
MN180005
COVER,AIR CLEANER
|
MN180005 |
— | ||
|
11089
|
11089
MN156483
DUCT,AIR CLEANER INTAKE
|
MN156483 |
— | ||
|
11092
|
11092
MR404532 INSULATOR, AIR CLEANER SUPPORT |
MR404532 |
from US $2.75 |
||
|
11092P
|
11092P
MN156868
INSULATOR,AIR CLEANER SUPPORT
|
MN156868 |
— | ||
|
11092Q
|
11092Q
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11092S
|
11092S
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11127
|
11127
1502A029
RESONATOR,AIR CLEANER
|
1502A029 |
— | ||
|
11127
|
11127
MN156773
RESONATOR,AIR CLEANER
|
MN156773 |
— | ||
| replacement | |||||
|
11127
|
11127
1502A029
RESONATOR,AIR CLEANER
|
1502A029 |
— | ||
|
11127Q
|
11127Q
MN115519
RESONATOR,AIR CLEANER
|
MN115519 |
— | ||
|
11135
|
11135
MR985187 SENSOR, AIR CLEANER AIR FLOW |
MR985187 |
from US $354.56 |
||
|
11142
|
11142
MN137122 O-RING, AIR CLEANER AIR FLOW SENSOR |
MN137122 |
from US $2.85 |
||
|
11184
|
11184
MN180104
DUCT,AIR CLEANER TO THROTTLE BODY
|
MN180104 |
— | ||
|
11285
|
11285
MB345544 CLIP, RADIATOR GRILLE6.5-7.5 |
MB345544 |
from US $2.69 |
||
|
11287
|
11287
1500A108
BRACKET,AIR CLEANER
|
1500A108 |
— | ||
|
11291
|
11291
1865A063 SCREW, AIR CLEANERTapping,4x18 |
1865A063 |
US $1.37 |
||
|
11291
|
11291
MS350266 SCREW, A/SUSPWasher assembled,4x10 |
MS350266 |
US $1.92 |
||
|
11293
|
11293
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
11294
|
11294
MD620599 COLLAR, AIR CLEANER |
MD620599 |
US $2.33 |
||
|
11294Q
|
11294Q
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11294S
|
11294S
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11296
|
11296
MD620849 CLAMP, AIR CLEANER INR |
MD620849 |
US $3.55 |
||
|
11297Q
|
11297Q
MF661137 CLAMP, AIR CLEANER80 |
MF661137 |
from US $3.78 |
||
|
11297T
|
11297T
MF661126 CLAMP, AIR CLEANER56 |
MF661126 |
US $3.40 |
||
|
11299
|
11299
MD305640 BOLT, AIR CLEANERWasher assembled,6x35 |
MD305640 |
from US $1.70 |
||
|
11299P
|
11299P
MD318212 BOLT, ACCEL CABLE SUPPORTWasher assembled, 6x19.5 |
MD318212 |
from US $1.99 |
||
|
11299Q
|
11299Q
MS240147 BOLT, GLOW CONTROL EQUIPWasher assembled,8x30 |
MS240147 |
from US $1.44 |
||
|
11299S
|
11299S
MS240143 BOLT, FUEL LINEWasher assembled,6x25 |
MS240143 |
US $3.83 |
||
|
11299S
|
11299S
MS240603 BOLT, RR BUMPERWasher assembled,6x25 |
MS240603 |
US $2.74 |
||
|
