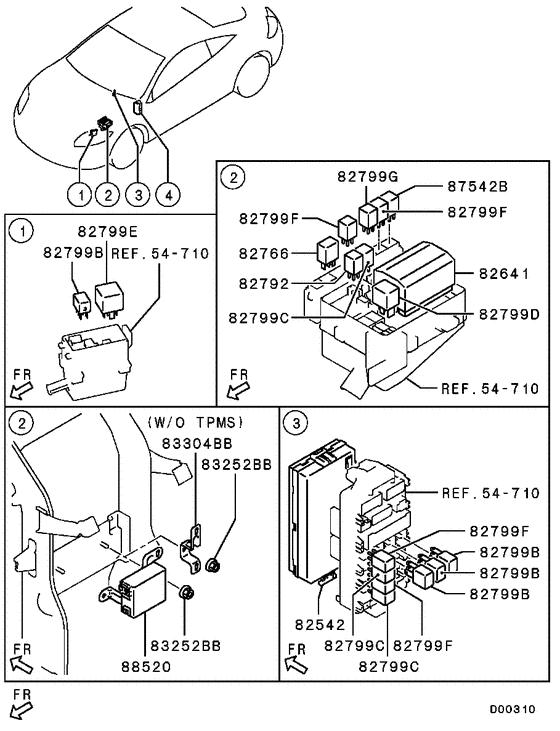

Relay,flasher & sensor (RELAY,ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 2007 - 2008
- Sales region
- PUERTO RICO&GUAM/MMNA
- Note
- SPECIAL(GT),6FM/T FED
- transmission
- 6FM/T
- grade
- SPECIAL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82542
|
82542
8637A067
CONTROL UNIT,TIME & ALARM
|
8637A067 |
— | ||
|
82542
|
82542
8637A378
CONTROL UNIT,TIME & ALARM
|
8637A378 |
— | ||
|
82542
|
82542
MN141321
CONTROL UNIT,TIME & ALARM
|
MN141321 |
— | ||
|
82641
|
82641
8638A021
CONTROL UNIT,RELAY
|
8638A021 |
— | ||
|
82641
|
82641
MR587807
CONTROL UNIT,RELAY
|
MR587807 |
— | ||
|
82766
|
82766
MR409996
RELAY
|
MR409996 |
— | ||
|
82792
|
82792
MR538851
RELAY, A/T FAIL SAFE CONTROL
|
MR538851 |
— | ||
| replacement | |||||
|
82792
|
82792
8627A008 RELAY |
8627A008 |
from US $6.90 |
||
|
82799B
|
82799B
MR515993 RELAY, DEFOGGERG8hl-1a4t-r-n58 |
MR515993 |
US $8.29 |
||
| replacement | |||||
|
82799B
|
82799B
8627A030 RELAY |
8627A030 |
from US $5.97 |
||
|
82799C
|
82799C
MR538851
RELAY, A/T FAIL SAFE CONTROL
|
MR538851 |
— | ||
| replacement | |||||
|
82799C
|
82799C
8627A008 RELAY |
8627A008 |
from US $6.90 |
||
|
82799D
|
82799D
MR400709 RELAY |
MR400709 |
from US $16.79 |
||
|
82799F
|
82799F
MR538851
RELAY, A/T FAIL SAFE CONTROL
|
MR538851 |
— | ||
| replacement | |||||
|
82799F
|
82799F
8627A008 RELAY |
8627A008 |
from US $6.90 |
||
|
83252BB
|
83252BB
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
83304BB
|
83304BB
8558A082
BRACKET,HARNESS
|
8558A082 |
— | ||
|
87542B
|
87542B
MR538851
RELAY, A/T FAIL SAFE CONTROL
|
MR538851 |
— | ||
| replacement | |||||
|
87542B
|
87542B
8627A008 RELAY |
8627A008 |
from US $6.90 |
||
|
88520
|
88520
8670A015
RECEIVER,TIRE PRESSURE MONITOR
|
8670A015 |
— | ||
| replacement | |||||
|
88520
|
88520
8670A023
RECEIVER,TIRE PRESSURE MONITOR
|
8670A023 |
— | ||
|
88520
|
88520
8670A023
RECEIVER,TIRE PRESSURE MONITOR
|
8670A023 |
— | ||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
