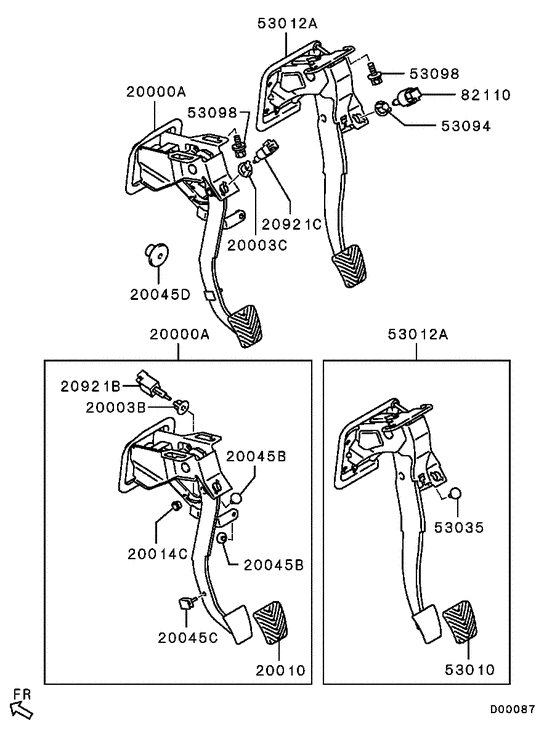

Brake & clutch pedal (M/T) Diagram Mitsubishi ECLIPSE
- Year
- 2005 - 2008
- Sales region
- MMNA/MMNA
- Note
- SPECIAL(GT),6FM/T FED
- transmission
- 6FM/T
- grade
- SPECIAL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000A
|
20000A
2340A062
PEDAL ASSY,CLUTCH
|
2340A062 |
— | ||
|
20003B
|
20003B
MR569454 CLIP, CLUTCH PEDAL |
MR569454 |
US $2.96 |
||
|
20003C
|
20003C
MR510883 CLIP, BRAKE PEDAL |
MR510883 |
US $2.52 |
||
|
20010
|
20010
MN184248
PAD,CLUTCH PEDAL
|
MN184248 |
— | ||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MB599166 STOPPER, CLUTCH PEDAL |
MB599166 |
US $2.37 |
||
|
20045D
|
20045D
MR527683
STOPPER, CLUTCH PEDAL
|
MR527683 |
— | ||
| replacement | |||||
|
20045D
|
20045D
5240C267 limiter |
5240C267 |
from US $1.17 |
||
|
20921B
|
20921B
MR329955 SWITCH, CLUTCH |
MR329955 |
US $10.53 |
||
|
20921C
|
20921C
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $14.08 |
||
|
53010
|
53010
MN184248
PAD,CLUTCH PEDAL
|
MN184248 |
— | ||
|
53012A
|
53012A
MN184246
PEDAL ASSY,BRAKE
|
MN184246 |
— | ||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR569538
CLIP,BRAKE PEDAL
|
MR569538 |
— | ||
|
53098
|
53098
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
82110
|
82110
8614A041
SWITCH,CLUTCH
|
8614A041 |
— | ||
