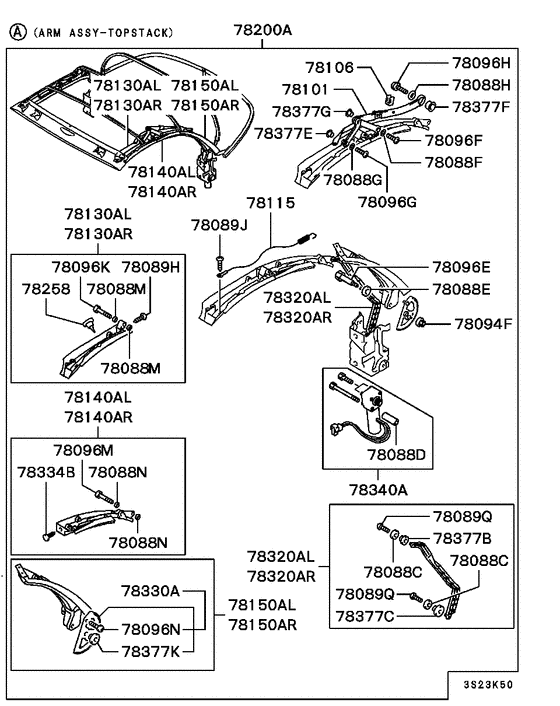

Folding top (ARM ASSY,RAIL ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS-T,5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS-T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78088C
|
78088C
MR264639 WASHER, FOLDING TOP |
MR264639 |
from US $3.40 |
||
|
78088D
|
78088D
MR264620 WASHER, FOLDING TOP |
MR264620 |
US $3.11 |
||
|
78088E
|
78088E
MR264637 GROMMET, ROOF GARNISH |
MR264637 |
US $3.26 |
||
|
78088F
|
78088F
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088G
|
78088G
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088H
|
78088H
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088M
|
78088M
MR264626
WASHER,FOLDING TOP
|
MR264626 |
— | ||
|
78088N
|
78088N
MR264626
WASHER,FOLDING TOP
|
MR264626 |
— | ||
|
78089H
|
78089H
MR264618 SCREW, FOLDING TOP |
MR264618 |
US $3.15 |
||
|
78089J
|
78089J
MR264610 SCREW, FOLDING TOP |
MR264610 |
US $3.26 |
||
|
78089Q
|
78089Q
MR264617
SCREW, FOLDING TOP
|
MR264617 |
— | ||
|
78094F
|
78094F
MR264638 NUT, FOLDING TOP8 |
MR264638 |
US $5.62 |
||
|
78096E
|
78096E
MR264636 BOLT, FOLDING TOP |
MR264636 |
US $19.24 |
||
|
78096F
|
78096F
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78096G
|
78096G
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78096H
|
78096H
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78096K
|
78096K
MR264625
BOLT,FOLDING TOP
|
MR264625 |
— | ||
|
78096M
|
78096M
MR264625
BOLT,FOLDING TOP
|
MR264625 |
— | ||
|
78096N
|
78096N
MR375425 BOLT, FOLDING TOP |
MR375425 |
US $2.37 |
||
|
78101
|
78101
MR328561
ARM, TOP CONTROL LINK
|
MR328561 |
— | ||
|
78101
|
78101
MR328562
ARM, TOP CONTROL LINK
|
MR328562 |
— | ||
|
78106
|
78106
MR264634 STOPPER, TOP CONTROL LINK ARM |
MR264634 |
US $5.92 |
||
|
78115
|
78115
MR375431
CABLE,TOP
|
MR375431 |
— | ||
|
78130AL
|
78130AL
MR375455
RAIL ASSY,TOP,FR LH
|
MR375455 |
— | ||
|
78130AR
|
78130AR
MR375454
RAIL ASSY,TOP,FR RH
|
MR375454 |
— | ||
|
78140AL
|
78140AL
MR375448
RAIL ASSY,TOP,CTR LH
|
MR375448 |
— | ||
|
78140AR
|
78140AR
MR375447
RAIL ASSY,TOP,CTR RH
|
MR375447 |
— | ||
|
78150AL
|
78150AL
MR375446
RAIL ASSY,TOP,RR LH
|
MR375446 |
— | ||
|
78150AR
|
78150AR
MR375445
RAIL ASSY,TOP,RR RH
|
MR375445 |
— | ||
|
78200A
|
78200A
MR264597 TOP ASSY |
MR264597 |
US $13,824 |
||
|
78200A
|
78200A
MR328484
TOP ASSY
|
MR328484 |
— | ||
|
78258
|
78258
MR264621 DAMPER, FOLDING TOP FRAME |
MR264621 |
US $6.81 |
||
|
78320AL
|
78320AL
MR264595 LINK ASSY, TOP, LH |
MR264595 |
US $465.92 |
||
|
78320AR
|
78320AR
MR264596 LINK ASSY, TOP, RH |
MR264596 |
US $465.92 |
||
|
78330A
|
78330A
MR264599 GEAR ASSY, TOP |
MR264599 |
US $296 |
||
|
78334B
|
78334B
MR264628 RETAINER, FOLDING TOP CTR SIDE |
MR264628 |
US $3.85 |
||
|
78340A
|
78340A
MR264592 MOTOR ASSY, TOP |
MR264592 |
US $486.30 |
||
|
78377B
|
78377B
MR264623
BUSHING, FOLDING TOP
|
MR264623 |
— | ||
|
78377C
|
78377C
MR264640
BUSHING, FOLDING TOP
|
MR264640 |
— | ||
|
78377E
|
78377E
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78377F
|
78377F
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78377G
|
78377G
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78377K
|
78377K
MR375426 BUSHING, FOLDING TOP |
MR375426 |
US $4.14 |
