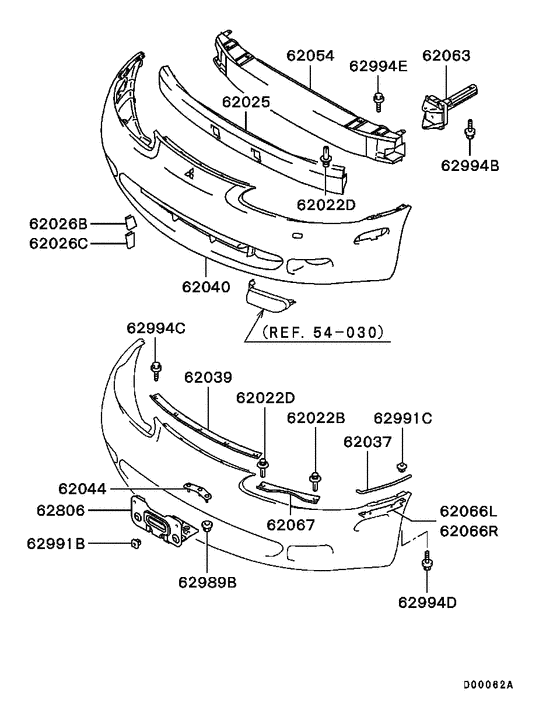

Front bumper & support (-'96MODEL) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS-T,5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS-T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62022B
|
62022B
MB888869
CLIP, FR BUMPER
|
MB888869 |
— | ||
|
62022D
|
62022D
MR138807 CLIP, FR BUMPER8x25.5 |
MR138807 |
from US $1.76 |
||
|
62025
|
62025
MB909301 CORE, FR BUMPER |
MB909301 |
US $104.34 |
||
|
62025
|
62025
MR236497 CORE, FR BUMPER |
MR236497 |
US $108.04 |
||
|
62026B
|
62026B
MR199327 COVER, FR BUMPER |
MR199327 |
US $5.18 |
||
|
62026C
|
62026C
MR199328 COVER, FR BUMPER |
MR199328 |
US $5.18 |
||
|
62037
|
62037
MB866504 PAD, FR BUMPER FACE |
MB866504 |
US $5.75 |
||
|
62039
|
62039
MB908399
PLATE, FR BUMPER, CTR UPR
|
MB908399 |
— | ||
|
62040
|
62040
MR178172
FACE, FR BUMPER
|
MR178172 |
— | ||
|
62040
|
62040
MR296443
FACE, FR BUMPER
|
MR296443 |
— | ||
|
62044
|
62044
MB909991
PLATE, FR BUMPER, CTR LWR
|
MB909991 |
— | ||
|
62054
|
62054
MB913814 REINFORCEMENT, FR BUMPER |
MB913814 |
US $464.46 |
||
|
62063
|
62063
MB913804 STAY, FR BUMPER |
MB913804 |
US $174.64 |
||
|
62066L
|
62066L
MB935767
PLATE, FR BUMPER CORNER, LH
|
MB935767 |
— | ||
|
62066R
|
62066R
MB935768
PLATE, FR BUMPER CORNER, RH
|
MB935768 |
— | ||
|
62067
|
62067
MB913810 PLATE, FR BUMPER SIDE |
MB913810 |
US $12.45 |
||
|
62806
|
62806
MB631285
BRACKET,FR LICENSE PLATE
|
MB631285 |
— | ||
|
62989B
|
62989B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62991B
|
62991B
MU480007 GROMMET, RR BODY GATE6 |
MU480007 |
US $4.51 |
||
|
62991C
|
62991C
MU480001 GROMMET, FR BUMPERScrew,4 |
MU480001 |
US $4.10 |
||
|
62994B
|
62994B
MU240156 BOLT, FR BUMPERWasher assembled,10x25 |
MU240156 |
US $3.70 |
||
|
62994C
|
62994C
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
62994D
|
62994D
MS240157 BOLT, FR BUMPERWasher assembled,6x25 |
MS240157 |
US $2.46 |
||
|
62994E
|
62994E
MS240176 BOLT, FR BUMPERWasher assembled,8x30 |
MS240176 |
from US $1.05 |
||
|
54 030
|
Front exterior lamp
54 030
|
||||
|
54 030
|
Front exterior lamp
54 030
|
||||
