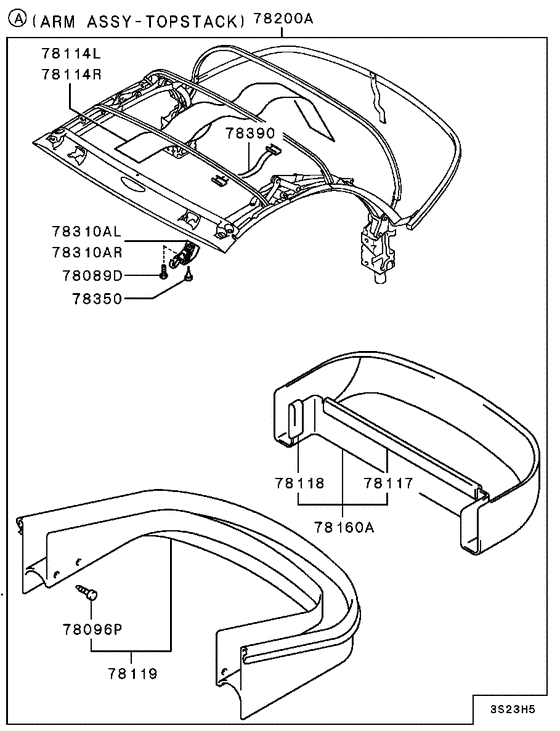

Folding top (ARM ASSY,DISASSEMBLIED PARTS) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS-T,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS-T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78089D
|
78089D
MR264617
SCREW, FOLDING TOP
|
MR264617 |
— | ||
|
78096P
|
78096P
MR287532
BOLT,FOLDING TOP
|
MR287532 |
— | ||
|
78114L
|
78114L
MR375452
PAD,TOP,LH
|
MR375452 |
— | ||
|
78114R
|
78114R
MR375451
PAD,TOP,RH
|
MR375451 |
— | ||
|
78117
|
78117
MR375439
RETAINER,TOP TRAY,FR
|
MR375439 |
— | ||
|
78118
|
78118
MR375440
RETAINER,TOP TRAY SIDE
|
MR375440 |
— | ||
|
78119
|
78119
MR375453
GUIDE,TOP DRAIN
|
MR375453 |
— | ||
|
78160A
|
78160A
MR375450
TRAY ASSY,TOP
|
MR375450 |
— | ||
|
78200A
|
78200A
MR264597 TOP ASSY |
MR264597 |
US $13,824 |
||
|
78200A
|
78200A
MR328484
TOP ASSY
|
MR328484 |
— | ||
|
78310AL
|
78310AL
MR264587
LATCH ASSY, TOP, LH
|
MR264587 |
— | ||
|
78310AR
|
78310AR
MR264588 LATCH ASSY, TOP, RH |
MR264588 |
US $805.17 |
||
|
78350
|
78350
MR264590
DAMPER, FOLDING TOP LATCH
|
MR264590 |
— | ||
|
78390
|
78390
MR328559
STRAP, FOLDING TOP ROOF
|
MR328559 |
— |
