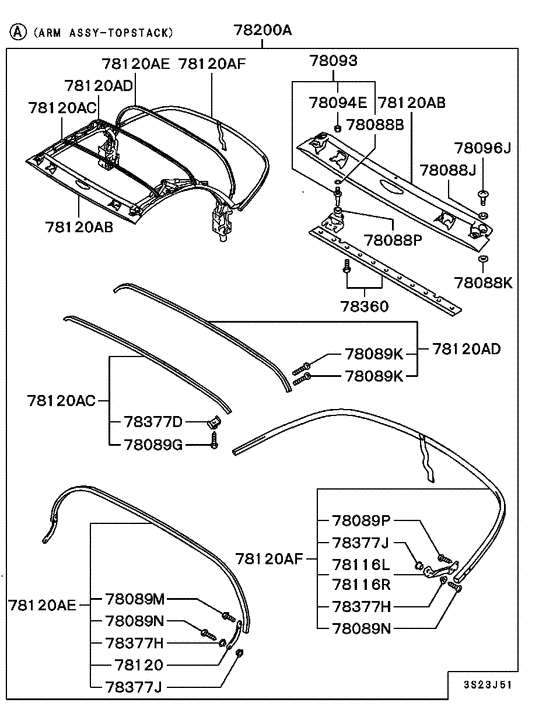

Folding top (ARM ASSY,BOW ROOF ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS-T,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS-T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78088B
|
78088B
MR264641 WASHER, FOLDING TOP |
MR264641 |
US $3.26 |
||
|
78088J
|
78088J
MR264627
WASHER,FOLDING TOP
|
MR264627 |
— | ||
|
78088K
|
78088K
MR375430
WASHER,FOLDING TOP
|
MR375430 |
— | ||
|
78088P
|
78088P
MR311124 WASHER, FOLDING TOP |
MR311124 |
US $3.26 |
||
|
78089G
|
78089G
MR264618 SCREW, FOLDING TOP |
MR264618 |
US $3.15 |
||
|
78089K
|
78089K
MR264635
SCREW,FOLDING TOP
|
MR264635 |
— | ||
|
78089M
|
78089M
MR264617
SCREW, FOLDING TOP
|
MR264617 |
— | ||
|
78089N
|
78089N
MR264618 SCREW, FOLDING TOP |
MR264618 |
US $3.15 |
||
|
78089P
|
78089P
MR264617
SCREW, FOLDING TOP
|
MR264617 |
— | ||
|
78093
|
78093
MR264600 PIN, FOLDING TOP |
MR264600 |
US $96.94 |
||
|
78093
|
78093
MR311123 PIN, FOLDING TOP |
MR311123 |
US $96.20 |
||
|
78094E
|
78094E
MR264642 NUT, FOLDING TOP8 |
MR264642 |
US $3.11 |
||
|
78096J
|
78096J
MR264619
BOLT,FOLDING TOP
|
MR264619 |
— | ||
|
78116L
|
78116L
MR375429
EXTENSION,TOP BOW,LH
|
MR375429 |
— | ||
|
78116R
|
78116R
MR375428
EXTENSION,TOP BOW,RH
|
MR375428 |
— | ||
|
78120
|
78120
MR375427
BOW,TOP
|
MR375427 |
— | ||
|
78120AB
|
78120AB
MR375441
BOW ASSY,TOP
|
MR375441 |
— | ||
|
78120AC
|
78120AC
MR375442
BOW ASSY,TOP
|
MR375442 |
— | ||
|
78120AD
|
78120AD
MR375443
BOW ASSY,TOP
|
MR375443 |
— | ||
|
78120AE
|
78120AE
MR375444
BOW ASSY,TOP
|
MR375444 |
— | ||
|
78120AF
|
78120AF
MR375449
BOW ASSY,TOP
|
MR375449 |
— | ||
|
78200A
|
78200A
MR264597 TOP ASSY |
MR264597 |
US $13,824 |
||
|
78200A
|
78200A
MR328484
TOP ASSY
|
MR328484 |
— | ||
|
78360
|
78360
MR264601 RETAINER, FOLDING TOP, FR |
MR264601 |
US $275.28 |
||
|
78377D
|
78377D
MR264633 BUSHING, FOLDING TOP |
MR264633 |
US $5.77 |
||
|
78377H
|
78377H
MR264632
BUSHING,FOLDING TOP
|
MR264632 |
— | ||
|
78377J
|
78377J
MR264631
BUSHING,FOLDING TOP
|
MR264631 |
— |
