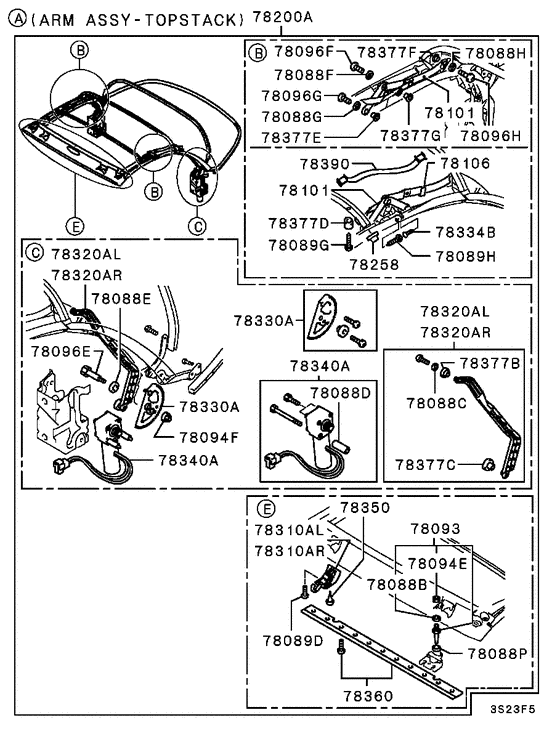

Folding top (TOP STACK ARM DISASSEMBLED PARTS) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78088B
|
78088B
MR264641 WASHER, FOLDING TOP |
MR264641 |
US $3.26 |
||
|
78088C
|
78088C
MR264639 WASHER, FOLDING TOP |
MR264639 |
from US $3.40 |
||
|
78088D
|
78088D
MR264620 WASHER, FOLDING TOP |
MR264620 |
US $3.11 |
||
|
78088E
|
78088E
MR264637 GROMMET, ROOF GARNISH |
MR264637 |
US $3.26 |
||
|
78088F
|
78088F
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088G
|
78088G
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088H
|
78088H
MR264624 WASHER, FOLDING TOP |
MR264624 |
US $3.26 |
||
|
78088P
|
78088P
MR311124 WASHER, FOLDING TOP |
MR311124 |
US $3.26 |
||
|
78089D
|
78089D
MR264617
SCREW, FOLDING TOP
|
MR264617 |
— | ||
|
78089G
|
78089G
MR264618 SCREW, FOLDING TOP |
MR264618 |
US $3.15 |
||
|
78089H
|
78089H
MR264618 SCREW, FOLDING TOP |
MR264618 |
US $3.15 |
||
|
78093
|
78093
MR264600 PIN, FOLDING TOP |
MR264600 |
US $96.94 |
||
|
78093
|
78093
MR311123 PIN, FOLDING TOP |
MR311123 |
US $96.20 |
||
|
78094E
|
78094E
MR264642 NUT, FOLDING TOP8 |
MR264642 |
US $3.11 |
||
|
78094F
|
78094F
MR264638 NUT, FOLDING TOP8 |
MR264638 |
US $5.62 |
||
|
78096E
|
78096E
MR264636 BOLT, FOLDING TOP |
MR264636 |
US $19.24 |
||
|
78096F
|
78096F
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78096G
|
78096G
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78096H
|
78096H
MR264622 BOLT, FOLDING TOP8x24 |
MR264622 |
US $3.85 |
||
|
78101
|
78101
MR328561
ARM, TOP CONTROL LINK
|
MR328561 |
— | ||
|
78101
|
78101
MR328562
ARM, TOP CONTROL LINK
|
MR328562 |
— | ||
|
78106
|
78106
MR264634 STOPPER, TOP CONTROL LINK ARM |
MR264634 |
US $5.92 |
||
|
78200A
|
78200A
MR264597 TOP ASSY |
MR264597 |
US $13,824 |
||
|
78258
|
78258
MR264621 DAMPER, FOLDING TOP FRAME |
MR264621 |
US $6.81 |
||
|
78310AL
|
78310AL
MR264587
LATCH ASSY, TOP, LH
|
MR264587 |
— | ||
|
78310AR
|
78310AR
MR264588 LATCH ASSY, TOP, RH |
MR264588 |
US $805.17 |
||
|
78320AL
|
78320AL
MR264595 LINK ASSY, TOP, LH |
MR264595 |
US $465.92 |
||
|
78320AR
|
78320AR
MR264596 LINK ASSY, TOP, RH |
MR264596 |
US $465.92 |
||
|
78330A
|
78330A
MR264599 GEAR ASSY, TOP |
MR264599 |
US $296 |
||
|
78334B
|
78334B
MR264628 RETAINER, FOLDING TOP CTR SIDE |
MR264628 |
US $3.85 |
||
|
78340A
|
78340A
MR264592 MOTOR ASSY, TOP |
MR264592 |
US $486.30 |
||
|
78350
|
78350
MR264590
DAMPER, FOLDING TOP LATCH
|
MR264590 |
— | ||
|
78360
|
78360
MR264601 RETAINER, FOLDING TOP, FR |
MR264601 |
US $275.28 |
||
|
78377B
|
78377B
MR264623
BUSHING, FOLDING TOP
|
MR264623 |
— | ||
|
78377C
|
78377C
MR264640
BUSHING, FOLDING TOP
|
MR264640 |
— | ||
|
78377D
|
78377D
MR264633 BUSHING, FOLDING TOP |
MR264633 |
US $5.77 |
||
|
78377E
|
78377E
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78377F
|
78377F
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78377G
|
78377G
MR288357 BUSHING, FOLDING TOP |
MR288357 |
US $4 |
||
|
78390
|
78390
MR328559
STRAP, FOLDING TOP ROOF
|
MR328559 |
— |
