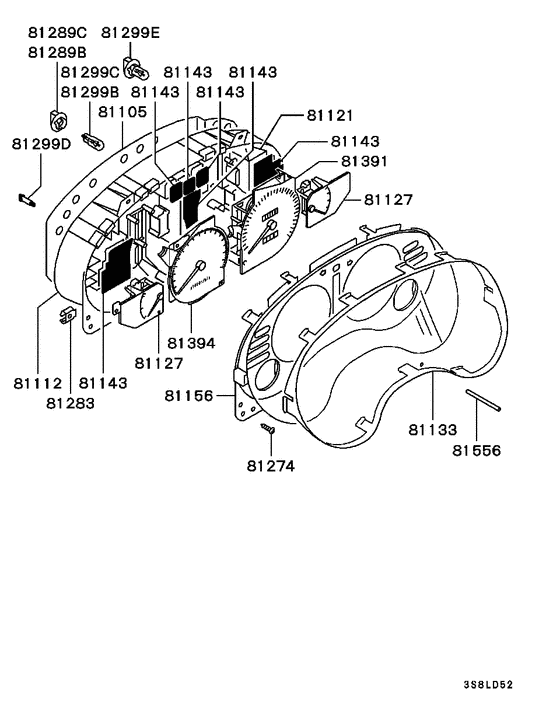

Meter,gauge & clock (COMBINATION METER) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MR149334 BOARD, INSTRUMENT PANEL PRINTED CIRCUIT |
MR149334 |
US $80.66 |
||
|
81105
|
81105
MR381588 BOARD, INSTRUMENT PANEL PRINTED CIRCUIT |
MR381588 |
US $88.80 |
||
|
81112
|
81112
MR114681 CASE, COMBINATION METER |
MR114681 |
US $57.72 |
||
|
81121
|
81121
MR114710 COVER, COMBINATION METER BULB |
MR114710 |
US $16.28 |
||
|
81127
|
81127
MR149301 GAUGE, COMBINATION METER |
MR149301 |
US $130.24 |
||
|
81127
|
81127
MR149303 GAUGE, COMBINATION METER |
MR149303 |
US $130.24 |
||
|
81133
|
81133
MR114696 GLASS, COMBINATION METER |
MR114696 |
US $45.88 |
||
|
81143
|
81143
MR149317 LENS, COMBINATION METER INDICATOR |
MR149317 |
US $7.70 |
||
|
81143
|
81143
MR149318 LENS, COMBINATION METER INDICATOR |
MR149318 |
US $7.70 |
||
|
81143
|
81143
MR149320 LENS, COMBINATION METER INDICATOR |
MR149320 |
US $13.91 |
||
|
81143
|
81143
MR149322 LENS, COMBINATION METER INDICATOR |
MR149322 |
US $13.91 |
||
|
81143
|
81143
MR149325 LENS, COMBINATION METER INDICATOR |
MR149325 |
US $8.14 |
||
|
81143
|
81143
MR149326 LENS, COMBINATION METER INDICATOR |
MR149326 |
US $8.14 |
||
|
81143
|
81143
MR149327 LENS, COMBINATION METER INDICATOR |
MR149327 |
US $7.99 |
||
|
81143
|
81143
MR250569 LENS, COMBINATION METER INDICATOR |
MR250569 |
US $8.14 |
||
|
81156
|
81156
MR114690 PLATE, COMBINATION METER WINDOW |
MR114690 |
US $71.04 |
||
|
81274
|
81274
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289B
|
81289B
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
81289C
|
81289C
MB562980
SOCKET, INSTRUMENT PANEL METER
|
MB562980 |
— | ||
|
81299B
|
81299B
MB066068 BULB, INSTRUMENT PANEL METER14v-1.4w |
MB066068 |
from US $2.87 |
||
|
81299C
|
81299C
MR149329 BULB, INSTRUMENT PANEL METER14v-3.0w |
MR149329 |
US $3.56 |
||
|
81299D
|
81299D
MB849560 BULB, INSTRUMENT PANEL METER12v-1.12w |
MB849560 |
US $8.12 |
||
|
81299E
|
81299E
MR149328 BULB, INSTRUMENT PANEL METER14v-1.4w |
MR149328 |
US $5.33 |
||
|
81391
|
81391
MR149332 Speedometer |
MR149332 |
US $675.58 |
||
|
81394
|
81394
MR114707 TACHOMETER |
MR114707 |
US $601.33 |
||
|
81556
|
81556
MR114711 KNOB, TRIP METER |
MR114711 |
US $5.77 |
