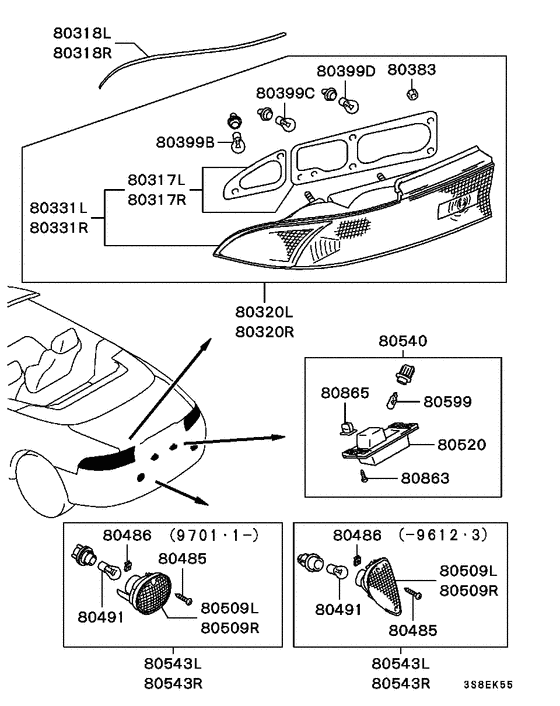

Rear exterior lamp (COMBINATION LAMP LAMP,ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317L
|
80317L
MR154701
GASKET, RR COMBINATION LAMP
|
MR154701 |
— | ||
|
80317R
|
80317R
MR155613 GASKET, RR COMBINATION LAMP, RH |
MR155613 |
US $20.72 |
||
|
80318L
|
80318L
MR472537 PROTECTOR, RR COMBINATION LAMP EDGE, LH |
MR472537 |
US $7.70 |
||
|
80318R
|
80318R
MR472538 PROTECTOR, RR COMBINATION LAMP EDGE, RH |
MR472538 |
US $7.70 |
||
|
80320L
|
80320L
MR241015 LAMP KIT, COMBINATION, RR LH12v-21/5w |
MR241015 |
US $417.77 |
||
|
80320R
|
80320R
MR241016
LAMP KIT, COMBINATION, RR RH
|
MR241016 |
— | ||
|
80331L
|
80331L
MR221399
LAMP UNIT, COMBINATION, RR LH
|
MR221399 |
— | ||
|
80331R
|
80331R
MR221400
LAMP UNIT, COMBINATION, RR RH
|
MR221400 |
— | ||
|
80383
|
80383
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
80399B
|
80399B
MS820040 BULB, RR END PANEL GARNISH12v-21/5w |
MS820040 |
US $4.37 |
||
| replacement | |||||
|
80399B
|
80399B
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80399C
|
80399C
MS820040 BULB, RR END PANEL GARNISH12v-21/5w |
MS820040 |
US $4.37 |
||
| replacement | |||||
|
80399C
|
80399C
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80399D
|
80399D
MS820040 BULB, RR END PANEL GARNISH12v-21/5w |
MS820040 |
US $4.37 |
||
| replacement | |||||
|
80399D
|
80399D
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80485
|
80485
MR155641 SCREW, BACKUP LAMPTapping,4x35 |
MR155641 |
US $3.26 |
||
|
80485
|
80485
MR322508
SCREW, BACKUP LAMP
|
MR322508 |
— | ||
|
80486
|
80486
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80491
|
80491
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80509L
|
80509L
MR154561
LAMP UNIT, BACKUP, LH
|
MR154561 |
— | ||
|
80509L
|
80509L
MR300588
LAMP UNIT, BACKUP
|
MR300588 |
— | ||
|
80509R
|
80509R
MR154562 LAMP UNIT, BACKUP, RH |
MR154562 |
US $57.46 |
||
|
80509R
|
80509R
MR300588
LAMP UNIT, BACKUP
|
MR300588 |
— | ||
|
80520
|
80520
MR191070
LENS, LICENSE PLATE LAMP
|
MR191070 |
— | ||
|
80540
|
80540
MR162486 LAMP KIT, LICENSE PLATE12v-5w |
MR162486 |
US $57.72 |
||
|
80543L
|
80543L
MR162483 LAMP KIT, BACKUP, LH12v-21w |
MR162483 |
US $65.12 |
||
|
80543L
|
80543L
MR296693 LAMP KIT, BACKUP12v-21w |
MR296693 |
US $62.24 |
||
|
80543R
|
80543R
MR162484 LAMP KIT, BACKUP, RH12v-21w |
MR162484 |
US $65.12 |
||
|
80543R
|
80543R
MR296693 LAMP KIT, BACKUP12v-21w |
MR296693 |
US $62.24 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80863
|
80863
MR191071 SCREW, LICENSE PLATE LAMPTapping,4x10 |
MR191071 |
US $2.37 |
||
|
80865
|
80865
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
||
