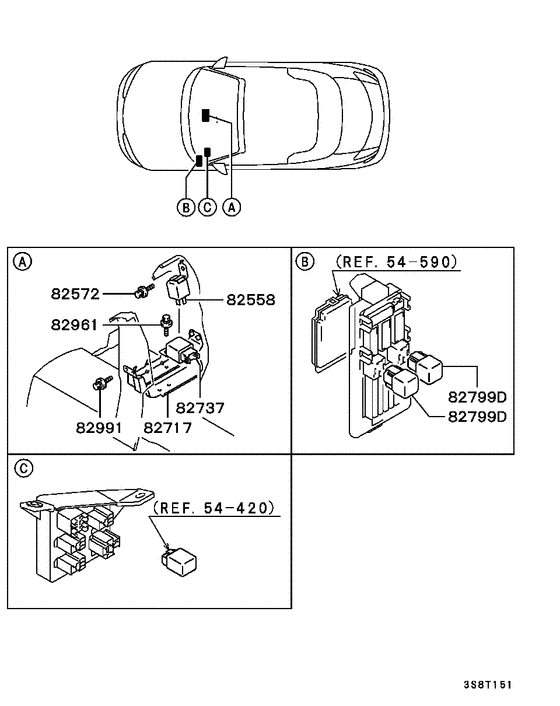

Relay,flasher & sensor (RELAY..CONSOLE,COWL SIDE) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- body
- SPYDER
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82558
|
82558
MR172080 FLASHER UNIT, HAZARD & TURN SIGNAL LAMP |
MR172080 |
US $108.04 |
||
|
82572
|
82572
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82717
|
82717
MB920249 BRACKET, RELAY |
MB920249 |
US $34.78 |
||
|
82737
|
82737
MB543648 RELAY, AUTO DOOR LOCK CONTROLG8r-27m-b |
MB543648 |
US $64.98 |
||
|
82799D
|
82799D
MB629080 RELAY, SPECIAL LAMP156700-0110 |
MB629080 |
US $43.66 |
||
|
82799D
|
82799D
MR301971 RELAYG8j-1c21t-r |
MR301971 |
from US $37.62 |
||
|
82961
|
82961
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82991
|
82991
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
54 420
|
Switch & cigar lighter
54 420
|
||||
|
54 420
|
Switch & cigar lighter
54 420
|
||||
|
54 590
|
Horn & buzzer
54 590
|
||||
