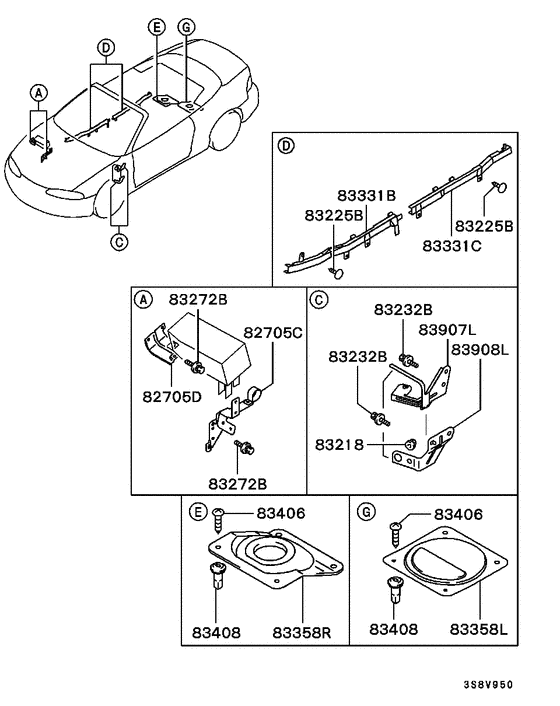

Wiring & attaching parts (HARNESS,BRACKET ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER,4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82705C
|
82705C
MB943247 BRACKET, RELAY BOX |
MB943247 |
US $18.50 |
||
|
82705D
|
82705D
MB943248
BRACKET, RELAY BOX
|
MB943248 |
— | ||
|
83218
|
83218
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
83225B
|
83225B
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
83232B
|
83232B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83272B
|
83272B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83331B
|
83331B
MR173128 PROTECTOR, HARNESSSide sill(fr rh) |
MR173128 |
US $9.77 |
||
|
83331C
|
83331C
MR173130 PROTECTOR, HARNESSSide sill(rr rh) |
MR173130 |
US $10.51 |
||
|
83358L
|
83358L
MR142543 COVER, FUEL GAUGE UNIT TOOLING HOLE |
MR142543 |
US $21.46 |
||
|
83358R
|
83358R
MB863850 COVER, FUEL GAUGE UNIT TOOLING HOLE, RH |
MB863850 |
US $21.89 |
||
|
83406
|
83406
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83408
|
83408
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
83907L
|
83907L
MB943249 BRACKET, JUNCTION BLOCK, UPR LH |
MB943249 |
US $11.69 |
||
|
83908L
|
83908L
MB943250 BRACKET, JUNCTION BLOCK, LWR LH |
MB943250 |
US $9.47 |
