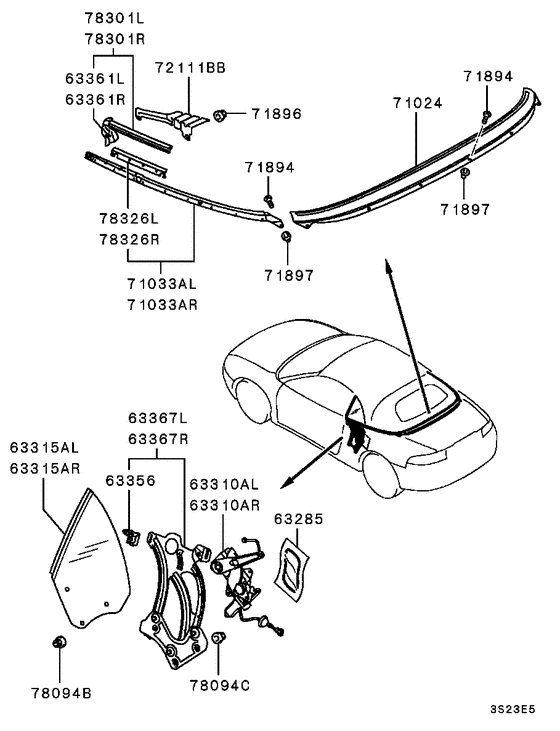

Folding top (QTR WINDOW & QTR BELT MOULDING ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63285
|
63285
MR169067 FILM, QTR PANEL WATERPROOF |
MR169067 |
US $19.24 |
||
|
63310AL
|
63310AL
MR170747 REGULATOR ASSY, QTR WINDOW |
MR170747 |
US $586.77 |
||
|
63310AR
|
63310AR
MR170748 REGULATOR ASSY, QTR WINDOW |
MR170748 |
US $586.77 |
||
|
63315AL
|
63315AL
MR264603 GLASS, QTR WINDOW, LH |
MR264603 |
US $776.05 |
||
|
63315AR
|
63315AR
MR264604 GLASS ASSY, QTR WINDOW, RH |
MR264604 |
US $776.05 |
||
|
63356
|
63356
MR264609 STOPPER, QTR WINDOW GLASS |
MR264609 |
US $16.28 |
||
|
63361L
|
63361L
MR169073
WEATHERSTRIP, QTR WINDOW, LH
|
MR169073 |
— | ||
|
63361R
|
63361R
MR169074
WEATHERSTRIP, QTR WINDOW, RH
|
MR169074 |
— | ||
|
63367L
|
63367L
MR264605 GUIDE, QTR WINDOW GLASS, LH |
MR264605 |
US $295.57 |
||
|
63367R
|
63367R
MR264606
GUIDE, QTR WINDOW GLASS, RH
|
MR264606 |
— | ||
|
71024
|
71024
MR155227 MOULDING, BACK BELT |
MR155227 |
US $352.35 |
||
|
71033AL
|
71033AL
MR155225 MOULDING ASSY, QTR BELT, LH |
MR155225 |
US $339.25 |
||
|
71033AR
|
71033AR
MR155226 MOULDING ASSY, QTR BELT, RH |
MR155226 |
US $285.64 |
||
|
71894
|
71894
MF455511 SCREW, PARKING BRAKE LEVERTapping,5x12 |
MF455511 |
US $2.74 |
||
|
71894
|
71894
MF455512 SCREW, SCUFF PLATETapping,5x14 |
MF455512 |
US $3.15 |
||
|
71896
|
71896
MS440521 NUT, FUEL FILLER LID PANELWasher assembled,5 |
MS440521 |
US $2.60 |
||
|
71897
|
71897
MB888561 GROMMET, FR DOOR |
MB888561 |
US $2.19 |
||
|
71897
|
71897
MR328096 GROMMET, QTR WINDOW MOULDING |
MR328096 |
US $2.22 |
||
|
72111BB
|
72111BB
MR201491 BRACKET, QTR TRIM, LH |
MR201491 |
US $40.70 |
||
|
72111BB
|
72111BB
MR201492 BRACKET, QTR TRIM, RH |
MR201492 |
US $40.70 |
||
|
78094B
|
78094B
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
78094C
|
78094C
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
78301L
|
78301L
MR287185 WEATHERSTRIP, QTR BELT, INR LH |
MR287185 |
US $72.52 |
||
|
78301R
|
78301R
MR287186 WEATHERSTRIP, QTR BELT, INR RH |
MR287186 |
US $72.52 |
||
|
78326L
|
78326L
MR264607
WEATHERSTRIP, QTR BELT, OTR LH
|
MR264607 |
— | ||
|
78326R
|
78326R
MR264608
WEATHERSTRIP, QTR BELT, OTR RH
|
MR264608 |
— |
