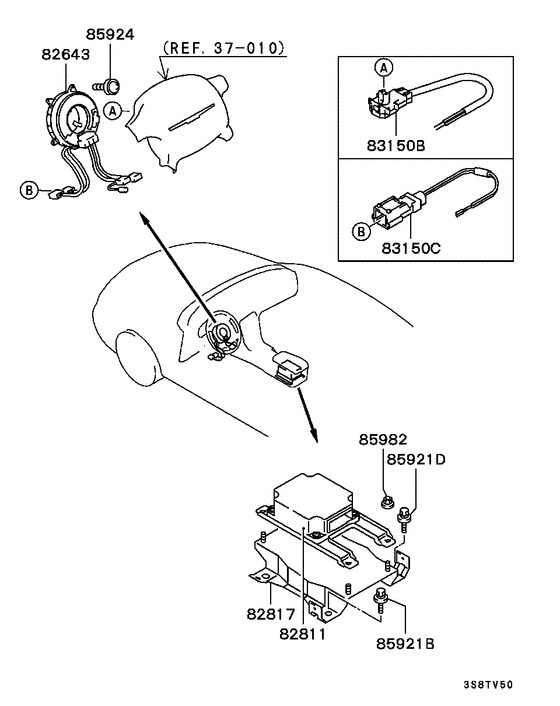

Relay,flasher & sensor (AIR BAG MODULE,SENSOR,ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82643
|
82643
MR228111 SPRING, AIR BAG SENSOR |
MR228111 |
US $211.64 |
||
|
82643
|
82643
MR228112
SPRING, AIR BAG SENSOR
|
MR228112 |
— | ||
|
82811
|
82811
MR243891 CONTROL UNIT, SRS DIAGNOSISX6t39682 (x6t39672) |
MR243891 |
US $960.96 |
||
|
82817
|
82817
MB903906 BRACKET, AIR BAG CONTROL UNIT |
MB903906 |
US $39.96 |
||
|
83150B
|
83150B
MR203491
HARNESS, SRS AIR BAG ADAPTER
|
MR203491 |
— | ||
|
83150C
|
83150C
MB686560
HARNESS, SRS AIR BAG ADAPTER
|
MB686560 |
— | ||
| replacement | |||||
|
83150C
|
83150C
MB686560V HARNESS, SRS AIR BAG ADAPTER |
MB686560V |
US $53.28 |
||
|
85921B
|
85921B
MB133472 BOLT, FUEL TANKWasher assembled,8x20 |
MB133472 |
from US $2.18 |
||
|
85921D
|
85921D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
85924
|
85924
MF456805 SCREW, CONSOLE METERTapping,3x12 |
MF456805 |
US $2.19 |
||
|
85982
|
85982
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
37 010
|
Steering wheel
37 010
|
||||
