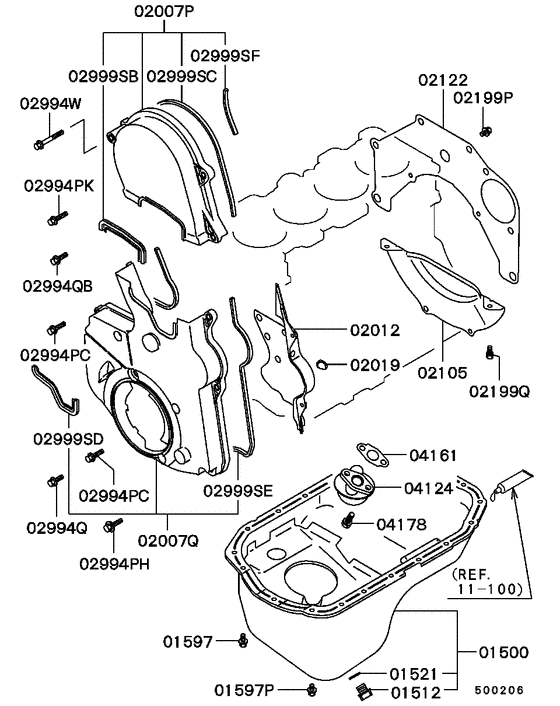

Cover,rear plate & oil pan (ALL) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01500
|
01500
MD332039
OIL PAN, ENG
|
MD332039 |
— | ||
|
01512
|
01512
MD050316 PLUG, ENG OIL PAN... |
MD050316 |
from US $5.30 |
||
|
01521
|
01521
MD050317 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MD050317 |
from US $1.23 |
||
|
01597
|
01597
MD097012 BOLT, ENG OIL PANFlange,6x10 |
MD097012 |
from US $1.01 |
||
|
01597P
|
01597P
MF140201 BOLT, ENG RR PLATEFlange,6x8 |
MF140201 |
from US $0.72 |
||
|
02007P
|
02007P
MD314242
COVER,TIMING BELT
|
MD314242 |
— | ||
|
02007Q
|
02007Q
MD332867 COVER, TIMING BELT |
MD332867 |
US $157.32 |
||
|
02012
|
02012
MD193751
COVER,TIMING BELT UNDER
|
MD193751 |
— | ||
|
02019
|
02019
MD129345
PLUG, TIMING BELT COVER
|
MD129345 |
— | ||
| replacement | |||||
|
02019
|
02019
MD181864 PLUG, TIMING BELT COVERRubber,9 |
MD181864 |
US $6.70 |
||
|
02105
|
02105
MD316627 COVER, FLYWHEEL HOUSING, FR LWR |
MD316627 |
US $15.05 |
||
|
02122
|
02122
MD167356 PLATE, CYLINDER BLOCK, RR |
MD167356 |
US $29.41 |
||
|
02199P
|
02199P
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
02199Q
|
02199Q
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
02994PC
|
02994PC
MF140209 BOLT, ROCKER COVERFlange,6x25 |
MF140209 |
from US $0.84 |
||
|
02994PH
|
02994PH
MF247868 BOLT, TIMING BELT COVERWasher assembled,6x25 |
MF247868 |
US $2.60 |
||
|
02994PK
|
02994PK
MF140031 BOLT, CYLINDER HEADFlange,8x35 |
MF140031 |
US $2.37 |
||
|
02994Q
|
02994Q
MF140206 BOLT, CYLINDER HEADFlange,6x18 |
MF140206 |
from US $0.78 |
||
|
02994QB
|
02994QB
MF140028 BOLT, ENG MECHANICAL GOVERNORFlange,8x28 |
MF140028 |
from US $1.74 |
||
|
02994W
|
02994W
MF140035 BOLT, THROTTLE BODYFlange,8x50 |
MF140035 |
US $3.11 |
||
|
02999SB
|
02999SB
MD171346 GASKET, TIMING BELT COVER |
MD171346 |
US $5.18 |
||
|
02999SC
|
02999SC
MD188128 GASKET, TIMING BELT COVER |
MD188128 |
US $4.74 |
||
|
02999SD
|
02999SD
MD171345 GASKET, TIMING BELT COVER |
MD171345 |
US $5.88 |
||
|
02999SE
|
02999SE
MD188833 GASKET, TIMING BELT COVER |
MD188833 |
US $5.77 |
||
|
02999SF
|
02999SF
MD188122 GASKET, TIMING BELT COVER |
MD188122 |
from US $4.51 |
||
|
04124
|
04124
MD181210 STRAINER, ENG OIL PAN |
MD181210 |
US $40.70 |
||
|
04161
|
04161
MD183240 GASKET, OIL STRAINER |
MD183240 |
from US $1.89 |
||
|
04178
|
04178
MS241071 BOLT, OIL STRAINERWasher assembled,8x20 |
MS241071 |
from US $1.21 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
