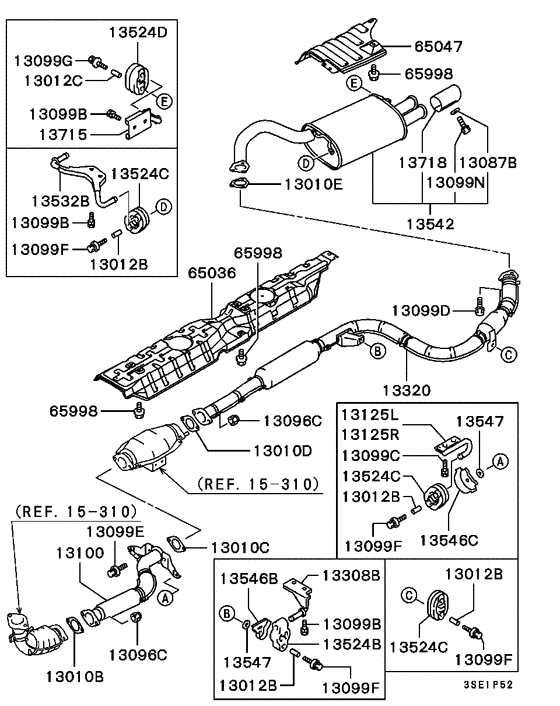

Exhaust pipe & muffler (W/FCC) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 1995 - 1999
- Sales region
- MMNA/MMNA
- Note
- GS,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010B
|
13010B
MR323623
GASKET,EXHAUST PIPE
|
MR323623 |
— | ||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010C
|
13010C
MR323617
GASKET, EXHAUST PIPE
|
MR323617 |
— | ||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MR323617
GASKET, EXHAUST PIPE
|
MR323617 |
— | ||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.79 |
||
|
13087B
|
13087B
MS450024 WASHER, EXHAUST PIPEPlain,6 |
MS450024 |
US $3.97 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099B
|
13099B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099C
|
13099C
MB298412 BOLT, ABS EQUIPWasher assembled,8x35 |
MB298412 |
US $7.25 |
||
|
13099C
|
13099C
MF240057 BOLT, CYLINDER HEADWasher assembled,8x30 |
MF240057 |
from US $1.21 |
||
|
13099D
|
13099D
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099E
|
13099E
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099G
|
13099G
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099N
|
13099N
MU240115 BOLT, EXHAUST PIPE6x10 |
MU240115 |
US $3.28 |
||
|
13100
|
13100
MB924404
PIPE,EXHAUST,FR
|
MB924404 |
— | ||
|
13100
|
13100
MR299658
PIPE,EXHAUST,FR
|
MR299658 |
— | ||
|
13125L
|
13125L
MB957594 HANGER, EXHAUST FR PIPE, LH |
MB957594 |
US $48.84 |
||
|
13125R
|
13125R
MB957595 HANGER, EXHAUST FR PIPE, RH |
MB957595 |
US $54.76 |
||
|
13308B
|
13308B
MB890586 HANGER, EXHAUST CTR PIPE |
MB890586 |
US $26.64 |
||
|
13320
|
13320
MB906632
PIPE,EXHAUST,CTR
|
MB906632 |
— | ||
|
13320
|
13320
MR188102
PIPE,EXHAUST,CTR
|
MR188102 |
— | ||
|
13524B
|
13524B
MB890225 HANGER, EXHAUST MUFFLER |
MB890225 |
from US $10.40 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB924316 HANGER, EXHAUST MUFFLER |
MB924316 |
from US $14.06 |
||
|
13532B
|
13532B
MB925823 HANGER, EXHAUST MUFFLER, RR |
MB925823 |
US $62.16 |
||
|
13542
|
13542
MR239331
MUFFLER,EXHAUST MAIN
|
MR239331 |
— | ||
|
13542
|
13542
MR239906
MUFFLER,EXHAUST MAIN
|
MR239906 |
— | ||
|
13546B
|
13546B
MB313866 PROTECTOR, EXHAUST MUFFLER HANGER |
MB313866 |
US $16.28 |
||
|
13546C
|
13546C
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13715
|
13715
MB957898 HANGER, EXHAUST TAIL PIPE |
MB957898 |
US $84.13 |
||
|
13718
|
13718
MR160624 DIFFUSER, EXHAUST TAIL PIPE |
MR160624 |
US $79.18 |
||
|
65036
|
65036
MB913340 PROTECTOR, UNDER FR FLOOR HEAT |
MB913340 |
US $224.96 |
||
|
65047
|
65047
MB913342 PROTECTOR, UNDER RR FLOOR HEAT |
MB913342 |
US $61.42 |
||
|
65998
|
65998
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
