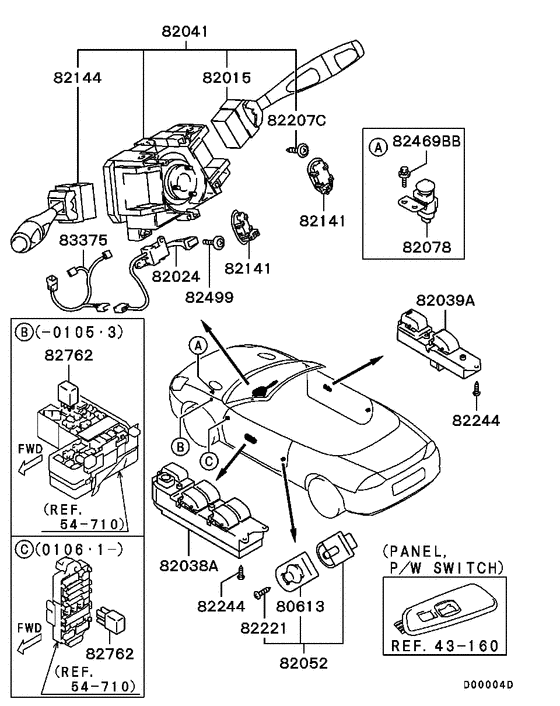

Switch & cigar lighter (SWITCH..COLUMN,P/W,DOOR LAMP,ETC.) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 2000 - 2003
- Sales region
- P&G/MMNA
- Note
- SPYDER S-LINE(GT),5FM/T(01M-) FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- S-LINE
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80613
|
80613
MR342930 CAP, DOOR LAMP SWITCH |
MR342930 |
from US $4.10 |
||
|
80613
|
80613
MR342931
CAP,DOOR LAMP SWITCH
|
MR342931 |
— | ||
|
82015
|
82015
MR558804 SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER |
MR558804 |
US $142.08 |
||
|
82024
|
82024
MB943716
SWITCH, CRUISE CONTROL
|
MB943716 |
— | ||
|
82038A
|
82038A
MR368945 SWITCH ASSY, FR DOOR POWER WINDOW DRIVER SIDE |
MR368945 |
US $323.23 |
||
|
82039A
|
82039A
MR400713
SWITCH ASSY, FR DOOR POWER WINDOW ASSISTANT SIDE
|
MR400713 |
— | ||
|
82041
|
82041
MR558802 SWITCH, STEERING COLUMN |
MR558802 |
US $327.60 |
||
|
82052
|
82052
MR271892 SWITCH, DOOR LAMP |
MR271892 |
US $9.77 |
||
| replacement | |||||
|
82052
|
82052
8608A145 SWITCH, DOOR LAMP |
8608A145 |
from US $8.40 |
||
|
82052
|
82052
MR348658
SWITCH,DOOR LAMP
|
MR348658 |
— | ||
| replacement | |||||
|
82052
|
82052
8608A145 SWITCH, DOOR LAMP |
8608A145 |
from US $8.40 |
||
|
82078
|
82078
MB606356 SWITCH, HORN |
MB606356 |
US $40.70 |
||
|
82141
|
82141
MR588144 SWITCH, STEERING WHEEL REMOTE CONTROL |
MR588144 |
US $8.76 |
||
|
82141
|
82141
MR588145 SWITCH, STEERING WHEEL REMOTE CONTROL |
MR588145 |
US $8.76 |
||
|
82144
|
82144
MR558806 SWITCH, TURN SIGNAL LAMP & LIGHTING |
MR558806 |
US $142.08 |
||
|
82207C
|
82207C
MS350047 SCREW, STEERING COLUMN COVERWasher assembled,5x25 |
MS350047 |
US $2.07 |
||
|
82221
|
82221
MB383490 SCREW, RR PILLAR GARNISHTapping,5x14 |
MB383490 |
US $2.60 |
||
|
82221
|
82221
MN106320 SCREW, DOOR LAMP SWITCH5x13.5 |
MN106320 |
US $1.92 |
||
|
82244
|
82244
MF456457 SCREW, FR DOOR ARMRESTTapping,4x12 |
MF456457 |
US $1.63 |
||
|
82469BB
|
82469BB
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82499
|
82499
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.46 |
||
|
82762
|
82762
MR122409 RELAY, SPECIAL LAMPG8h-ua-007500 |
MR122409 |
US $41.72 |
||
|
82762
|
82762
MR515993 RELAY, DEFOGGERG8hl-1a4t-r-n58 |
MR515993 |
US $8.29 |
||
| replacement | |||||
|
82762
|
82762
8627A030 RELAY |
8627A030 |
from US $5.97 |
||
|
83375
|
83375
MR587311 HARNESS, STEERING WHEEL REMOTE CONTROL |
MR587311 |
US $84.36 |
||
