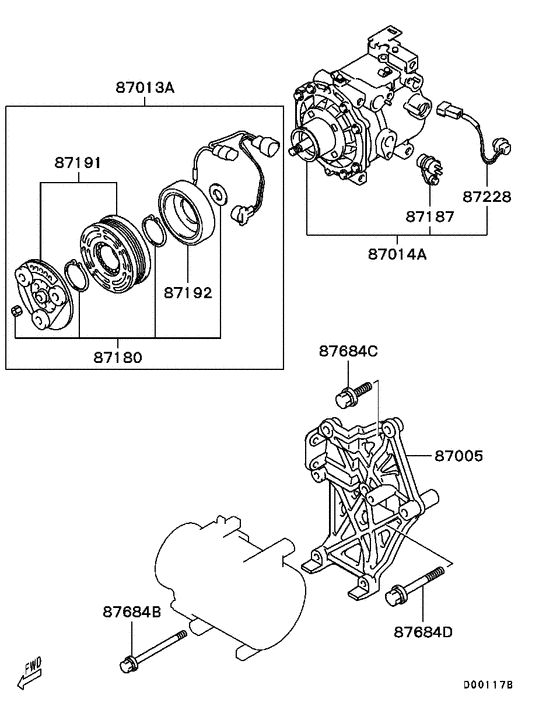

A/c condenser, piping (COMPRESSOR,BRACKET) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER GTS,S4FA/T
- drive
- 2WD
- transmission
- S4FA/T
- grade
- GTS
- body
- SPYDER
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87005
|
87005
MR500908
BRACKET, A/C COMPRESSOR
|
MR500908 |
— | ||
|
87013A
|
87013A
MR500339 CLUTCH ASSY, A/C COMPRESSOR |
MR500339 |
US $438.26 |
||
|
87014A
|
87014A
MR500325
COMPRESSOR ASSY, A/C
|
MR500325 |
— | ||
| replacement | |||||
|
87014A
|
87014A
7813A200 COMPRESSOR ASSY, A/C |
7813A200 |
US $1,373.01 |
||
|
87180
|
87180
MR315936
CLUTCH KIT, A/C COMPRESSOR SERVICE
|
MR315936 |
— | ||
| replacement | |||||
|
87180
|
87180
AKC006A202B
CLUTCH KIT, A/C COMPRESSOR SERVICE
|
AKC006A202B |
— | ||
|
87187
|
87187
MR398301
SENSOR KIT, A/C COMPRESSOR
|
MR398301 |
— | ||
|
87191
|
87191
MR500233
ROTOR & ARMATURE KIT, A/C COMPRESSOR
|
MR500233 |
— | ||
|
87192
|
87192
MR500338 COIL, A/C COMPRESSOR |
MR500338 |
US $162.80 |
||
|
87228
|
87228
MR500326
SWITCH, A/C COMPRESSOR REFRIGERANT TEMPERATURE
|
MR500326 |
— | ||
|
87684B
|
87684B
MU240026 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MU240026 |
US $9.58 |
||
|
87684C
|
87684C
MF303369 BOLT, OIL FILTERWasher assembled,10x40 |
MF303369 |
US $2.19 |
||
|
87684D
|
87684D
MF303377
BOLT, ENG MOUNTING
|
MF303377 |
— | ||
