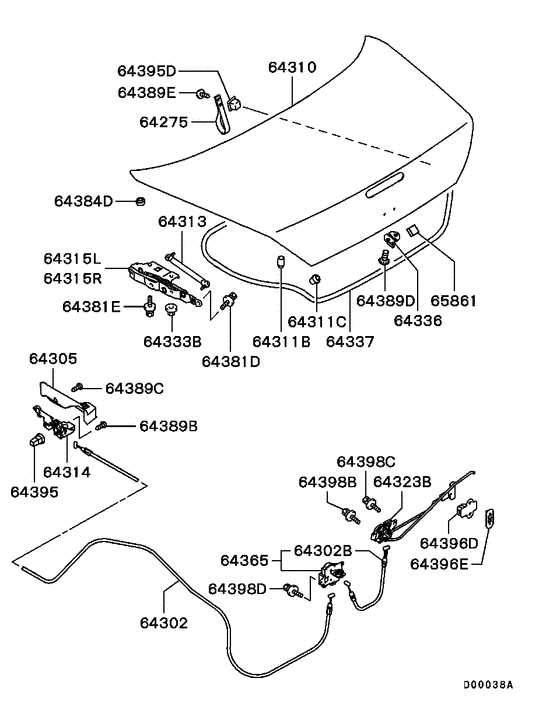

Trunk lid & lock Diagram Mitsubishi ECLIPSE SPYDER
- Year
- -
- Sales region
- MMNA
- Note
- SPYDER GTS,S4FA/T
- drive
- 2WD
- transmission
- S4FA/T
- grade
- GTS
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64275
|
64275
MR573759 STRAP, TRUNK LID |
MR573759 |
US $10.95 |
||
|
64302
|
64302
MR959963 CABLE, TRUNK LID LOCK RELEASE |
MR959963 |
US $37.74 |
||
|
64302B
|
64302B
MR959999 CABLE, TRUNK LID LOCK RELEASE |
MR959999 |
US $10.06 |
||
|
64305
|
64305
MR462914 COVER, TRUNK LID LOCK RELEASE HANDLE |
MR462914 |
US $11.84 |
||
|
64310
|
64310
MR439669 PANEL, TRUNK LID |
MR439669 |
US $669.76 |
||
|
64311B
|
64311B
MB021320
DAMPER, HOOD
|
MB021320 |
— | ||
| replacement | |||||
|
64311B
|
64311B
MR473473 DAMPER, TAILGATE |
MR473473 |
from US $2.75 |
||
|
64311C
|
64311C
MB402060 DAMPER, TRUNK LID |
MB402060 |
from US $2.73 |
||
|
64313
|
64313
MR375705 GAS SPRING, TRUNK LID |
MR375705 |
US $149.48 |
||
|
64314
|
64314
MR503839 HANDLE, TRUNK LID LOCK RELEASE |
MR503839 |
US $48.84 |
||
|
64315L
|
64315L
MR375703 HINGE, TRUNK LID, LH |
MR375703 |
US $79.92 |
||
|
64315R
|
64315R
MR375704 HINGE, TRUNK LID, RH |
MR375704 |
US $79.92 |
||
|
64323B
|
64323B
MR599605 LATCH, TRUNK LID |
MR599605 |
US $60.68 |
||
|
64333B
|
64333B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
64336
|
64336
MB888650 STRIKER, TRUNK LID LATCH |
MB888650 |
US $14.36 |
||
|
64337
|
64337
MR375709 WEATHERSTRIP, TRUNK LID |
MR375709 |
US $125.80 |
||
|
64365
|
64365
MR959998 ACTUATOR, TRUNK LID LOCK RELEASE |
MR959998 |
US $125.80 |
||
|
64381D
|
64381D
MF243653 BOLT, ENG OIL COOLER LINEWasher assembled,8x25 |
MF243653 |
from US $1.07 |
||
|
64381E
|
64381E
MS240137 BOLT, STEERING COLUMNWasher assembled,8x22 |
MS240137 |
US $1.92 |
||
|
64384D
|
64384D
MB021552 DAMPER, HOODRubber |
MB021552 |
US $2.37 |
||
|
64389B
|
64389B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
64389C
|
64389C
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
64389D
|
64389D
MF360792 SCREW, M/T CASEWasher assembled,6x16 |
MF360792 |
US $3.97 |
||
|
64389E
|
64389E
MS450169 SCREW, RR SEATTapping,6x25 |
MS450169 |
US $2.66 |
||
|
64395
|
64395
MU480032 GROMMET, SIDE AIR DAM5 |
MU480032 |
from US $0.96 |
||
|
64395D
|
64395D
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
||
|
64396D
|
64396D
MR599746 CLIP, TRUNK LID LOCKING |
MR599746 |
US $4.14 |
||
|
64396E
|
64396E
MR599748 CLIP, TRUNK LID LOCKING |
MR599748 |
US $3.26 |
||
|
64398B
|
64398B
MS240033 BOLT, TAILGATE LOCKINGWasher assembled,6x14 |
MS240033 |
US $2.05 |
||
|
64398C
|
64398C
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
64398D
|
64398D
MS240033 BOLT, TAILGATE LOCKINGWasher assembled,6x14 |
MS240033 |
US $2.05 |
||
|
65861
|
65861
MR512076 CUSHION, TAILGATE LOCK |
MR512076 |
US $2.66 |
||
