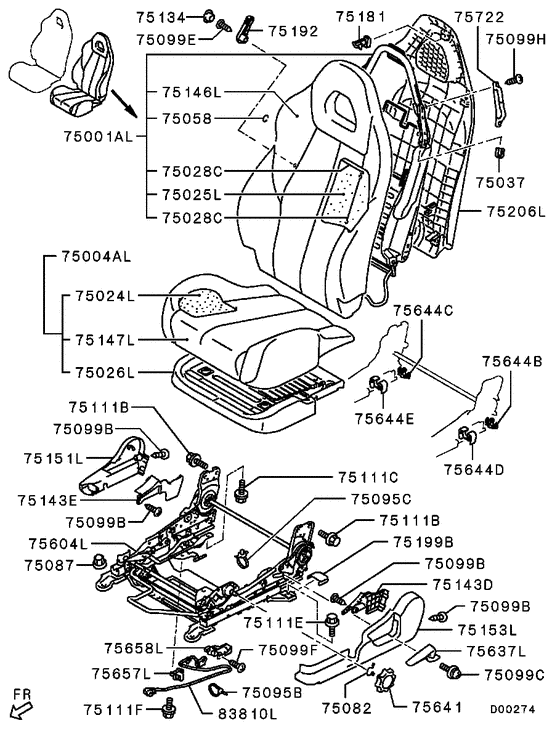

Front seat (LH) Diagram Mitsubishi ECLIPSE SPYDER
- Year
- 2006 - 2009
- Sales region
- P&G/MMNA
- Note
- SPYDER H-LINE,5FM/T FED
- transmission
- 5FM/T
- grade
- H-LINE
- body
- SPYDER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
6901A019HA
BACK ASSY,FR SEAT,LH
|
6901A019HA |
— | ||
|
75001AL
|
75001AL
6901A019HB
BACK ASSY,FR SEAT,LH
|
6901A019HB |
— | ||
|
75001AL
|
75001AL
6901A019HC
BACK ASSY,FR SEAT,LH
|
6901A019HC |
— | ||
|
75001AL
|
75001AL
6901A927HA
BACK ASSY,FR SEAT,LH
|
6901A927HA |
— | ||
|
75004AL
|
75004AL
6911A289HA
CUSHION ASSY,FR SEAT,LH
|
6911A289HA |
— | ||
|
75004AL
|
75004AL
6911A289HB
CUSHION ASSY,FR SEAT,LH
|
6911A289HB |
— | ||
|
75004AL
|
75004AL
6911A289HC
CUSHION ASSY,FR SEAT,LH
|
6911A289HC |
— | ||
|
75024L
|
75024L
MN177431
PAD,FR SEAT CUSHION,LH
|
MN177431 |
— | ||
|
75025L
|
75025L
6901A035
PAD,FR SEAT BACK,LH
|
6901A035 |
— | ||
|
75025L
|
75025L
6901A939
PAD,FR SEAT BACK,LH
|
6901A939 |
— | ||
|
75026L
|
75026L
MR595781
FRAME,FR SEAT CUSHION,LH
|
MR595781 |
— | ||
|
75028C
|
75028C
MB119164
WIRE,FR SEAT TRIMMING
|
MB119164 |
— | ||
|
75037
|
75037
6901A341
COVER,FR SEAT BACK FRAME
|
6901A341 |
— | ||
|
75058
|
75058
MR140172 RING, FR SEAT COVER |
MR140172 |
US $0.89 |
||
|
75082
|
75082
MR140827 SNAP RING, FR SEAT |
MR140827 |
US $1.92 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75095B
|
75095B
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75095C
|
75095C
MB953180 CLIP, WIRING, NO.2145.5 |
MB953180 |
US $2.05 |
||
|
75099B
|
75099B
MF455392 SCREW, HEADLAMPTapping,5x14 |
MF455392 |
US $2.60 |
||
|
75099B
|
75099B
MF455512 SCREW, SCUFF PLATETapping,5x14 |
MF455512 |
US $3.15 |
||
|
75099C
|
75099C
6979A208
SCREW,FR SEAT
|
6979A208 |
— | ||
|
75099C
|
75099C
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75099E
|
75099E
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
75099F
|
75099F
MF456470 SCREW, RR SEATTapping,5x10 |
MF456470 |
US $1.78 |
||
|
75099H
|
75099H
6901A038
SCREW,FR SEAT
|
6901A038 |
— | ||
|
75111B
|
75111B
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
75111C
|
75111C
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
75111E
|
75111E
MN121296 BOLT, FR SEATWasher assembled,10x32 |
MN121296 |
US $2.66 |
||
|
75111F
|
75111F
MN121135
BOLT,FR SEAT
|
MN121135 |
— | ||
|
75134
|
75134
MR595755HC
CAP,FR SEAT LUMBAR SUPPORT LEVER
|
MR595755HC |
— | ||
|
75143D
|
75143D
MR595763HB
COVER,FR SEAT SIDE SHIELD,INR
|
MR595763HB |
— | ||
|
75143E
|
75143E
MR595765HB
COVER,FR SEAT SIDE SHIELD,INR
|
MR595765HB |
— | ||
|
75146L
|
75146L
6901A031HA
COVER,FR SEAT BACK,LH
|
6901A031HA |
— | ||
|
75146L
|
75146L
6901A031HB
COVER,FR SEAT BACK,LH
|
6901A031HB |
— | ||
|
75146L
|
75146L
6901A031HC
COVER,FR SEAT BACK,LH
|
6901A031HC |
— | ||
|
75146L
|
75146L
6901A945HA
COVER,FR SEAT BACK,LH
|
6901A945HA |
— | ||
|
75147L
|
75147L
6911A295HA
COVER,FR SEAT CUSHION,LH
|
6911A295HA |
— | ||
|
75147L
|
75147L
6911A295HB
COVER,FR SEAT CUSHION,LH
|
6911A295HB |
— | ||
|
75147L
|
75147L
6911A295HC
COVER,FR SEAT CUSHION,LH
|
6911A295HC |
— | ||
|
75151L
|
75151L
MR595761HB
COVER,FR SEAT HINGE,LH
|
MR595761HB |
— | ||
|
75153L
|
75153L
MR595757HB
COVER,FR SEAT SIDE SHIELD,LH
|
MR595757HB |
— | ||
|
75181
|
75181
6979A005
HOOK,FR SEAT
|
6979A005 |
— | ||
|
75192
|
75192
MR595754HC
LEVER,FR SEAT LUMBAR SUPPORT
|
MR595754HC |
— | ||
|
75199B
|
75199B
MR653092
COVER,FR SEAT ANCHOR,RR
|
MR653092 |
— | ||
|
75206L
|
75206L
MN177413HA
PANEL,FR SEAT BACK,LH
|
MN177413HA |
— | ||
|
75604L
|
75604L
6921A031
ADJUSTER,FR SEAT SLIDE,LH
|
6921A031 |
— | ||
|
75637L
|
75637L
MR653086
LEVER,FR SEAT RECLINING ADJUSTER,LH
|
MR653086 |
— | ||
|
75641
|
75641
MR653088
KNOB,FR SEAT HEIGHT ADJUSTER
|
MR653088 |
— | ||
|
75644B
|
75644B
MR562566 CAP, FR SEAT SLIDE ADJUSTER |
MR562566 |
US $6.16 |
||
|
75644C
|
75644C
MN162590
CAP,FR SEAT SLIDE ADJUSTER
|
MN162590 |
— | ||
|
75644D
|
75644D
MN162592
CAP,FR SEAT SLIDE ADJUSTER
|
MN162592 |
— | ||
|
75644E
|
75644E
MN162593
CAP,FR SEAT SLIDE ADJUSTER
|
MN162593 |
— | ||
|
75657L
|
75657L
6921A028
SENSOR,FR SEAT SLIDE,LH
|
6921A028 |
— | ||
|
75658L
|
75658L
MN177513
COVER,FR SEAT SLIDE SENSOR,LH
|
MN177513 |
— | ||
|
75722
|
75722
6901A037HA
GUIDE,FR SEAT BELT
|
6901A037HA |
— | ||
|
75722
|
75722
6901A037HB
GUIDE,FR SEAT BELT
|
6901A037HB |
— | ||
|
83810L
|
83810L
6979A080
HARNESS,FR SEAT SLIDE SENSOR,LH
|
6979A080 |
— |
