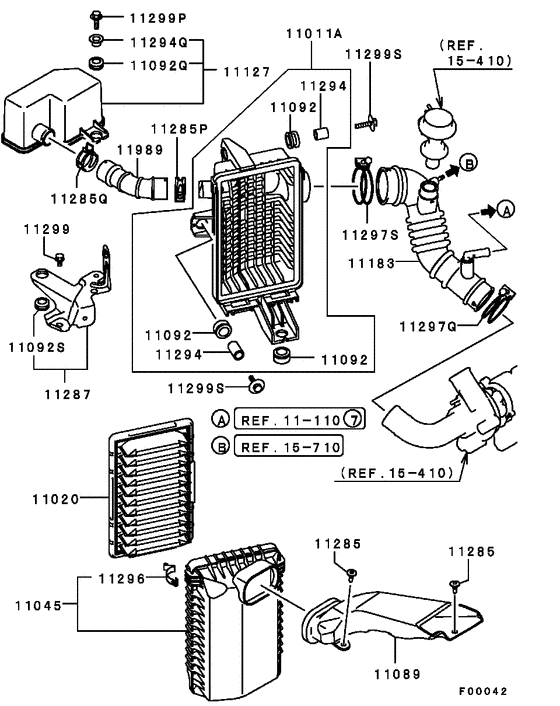

Air cleaner (W/ TURBO) Diagram Mitsubishi EK-SERIES
- Year
- 2002 - 2004
- Sales region
- Japan
- Note
- RS/SOUND BEAT R(2WD/TURBO),4CA/T<SPORT>
- drive
- 2WD
- transmission
- 4CA/T
- grade
- RS/SOUND BEAT R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MN135178 BODY ASSY, AIR CLEANER |
MN135178 |
US $125.06 |
||
|
11011A
|
11011A
MR968392 BODY ASSY, AIR CLEANER |
MR968392 |
US $152.44 |
||
|
11020
|
11020
MR968396 ELEMENT, AIR CLEANERNon woven |
MR968396 |
from US $33.83 |
||
|
11045
|
11045
MN135176 COVER, AIR CLEANER |
MN135176 |
US $68.82 |
||
|
11045
|
11045
MR968393 COVER, AIR CLEANER |
MR968393 |
US $56.24 |
||
|
11089
|
11089
MR597606 DUCT, AIR CLEANER INTAKE |
MR597606 |
US $96.94 |
||
|
11089
|
11089
MR993132 DUCT, AIR CLEANER INTAKE |
MR993132 |
US $34.78 |
||
|
11092
|
11092
MR450097 INSULATOR, AIR CLEANER SUPPORT |
MR450097 |
from US $1.29 |
||
|
11092
|
11092
MR968827 INSULATOR, AIR CLEANER SUPPORT |
MR968827 |
US $2.96 |
||
|
11092Q
|
11092Q
MR968827 INSULATOR, AIR CLEANER SUPPORT |
MR968827 |
US $2.96 |
||
|
11092S
|
11092S
MR968827 INSULATOR, AIR CLEANER SUPPORT |
MR968827 |
US $2.96 |
||
|
11127
|
11127
MR993910 RESONATOR, AIR CLEANER |
MR993910 |
US $37.74 |
||
|
11183
|
11183
MR993134 DUCT, AIR CLEANER TO T/C |
MR993134 |
US $67.34 |
||
|
11285
|
11285
MR975477HC CLIP, BACK DOOR TRIM |
MR975477HC |
from US $2.38 |
||
|
11285P
|
11285P
MB222298
CLIP, RADIATOR PIPING
|
MB222298 |
— | ||
| replacement | |||||
|
11285P
|
11285P
MR404537 CLIP, RADIATOR PIPINGD=31 |
MR404537 |
from US $3.26 |
||
|
11285Q
|
11285Q
MB222298
CLIP, RADIATOR PIPING
|
MB222298 |
— | ||
| replacement | |||||
|
11285Q
|
11285Q
MR404537 CLIP, RADIATOR PIPINGD=31 |
MR404537 |
from US $3.26 |
||
|
11287
|
11287
MN135177 BRACKET, AIR CLEANER |
MN135177 |
US $28.86 |
||
|
11294
|
11294
MR312769 COLLAR, AIR CLEANER |
MR312769 |
US $3.83 |
||
|
11294
|
11294
MR968828 COLLAR, AIR CLEANER |
MR968828 |
US $2.37 |
||
|
11294Q
|
11294Q
MR968828 COLLAR, AIR CLEANER |
MR968828 |
US $2.37 |
||
|
11296
|
11296
MR404331 CLAMP, AIR CLEANER INR |
MR404331 |
from US $6.38 |
||
|
11297Q
|
11297Q
MS660373 CLIP, RADIATOR PIPINGD=50 |
MS660373 |
US $2.81 |
||
|
11297S
|
11297S
MF661128 CLAMP, AIR CLEANER60 |
MF661128 |
from US $5.11 |
||
|
11299
|
11299
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
11299
|
11299
MU240157 BOLT, TAILGATE LOCKINGWasher assembled,6x25 |
MU240157 |
US $1.63 |
||
|
11299P
|
11299P
MF247868 BOLT, TIMING BELT COVERWasher assembled,6x25 |
MF247868 |
US $2.60 |
||
|
11299P
|
11299P
MS240199 BOLT, FR SEAT BELTWasher assembled,6x20 |
MS240199 |
US $1.92 |
||
|
11299P
|
11299P
MU240157 BOLT, TAILGATE LOCKINGWasher assembled,6x25 |
MU240157 |
US $1.63 |
||
|
11299S
|
11299S
MD161216 BOLT, AIR CLEANERWasher assembled,6x30 |
MD161216 |
from US $1.74 |
||
|
11989
|
11989
MR993911 HOSE, ENG AIR INTAKE LINERubber |
MR993911 |
US $42.18 |
||
|
