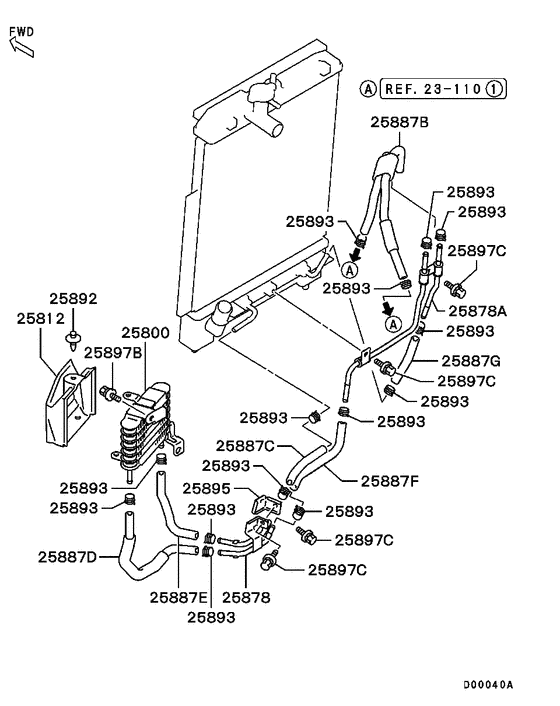

A/t oil cooler & tube (W/TURBO(EK ACTIVE)) Diagram Mitsubishi EK-SERIES
- Year
- 2002 - 2006
- Sales region
- Japan
- Note
- R/RECARO-ED(4WD/TURBO),4CA/T<SPORT>
- drive
- 4WD
- transmission
- 4CA/T
- grade
- R/RECARO-ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25800
|
25800
MN114161 OIL COOLER, T/M |
MN114161 |
US $416.42 |
||
|
25812
|
25812
MN114162 DUCT, T/M OIL COOLER, FR |
MN114162 |
US $19.24 |
||
|
25878
|
25878
2922A030 TUBE, T/M OIL COOLER LINE |
2922A030 |
US $12.58 |
||
|
25878
|
25878
MN114164 TUBE, T/M OIL COOLER |
MN114164 |
US $10.66 |
||
|
25878A
|
25878A
MN114165 TUBE, T/M OIL COOLER |
MN114165 |
US $20.72 |
||
|
25878A
|
25878A
MR597534 TUBE ASSY, T/M OIL COOLER LINE |
MR597534 |
US $10.95 |
||
|
25887B
|
25887B
MN114166 HOSE, T/M OIL COOLER LINE |
MN114166 |
US $45.14 |
||
|
25887B
|
25887B
MR597542 HOSE, T/M OIL COOLER LINE |
MR597542 |
US $37 |
||
|
25887C
|
25887C
2922A031 HOSE, T/M OIL COOLER LINE |
2922A031 |
US $10.06 |
||
|
25887C
|
25887C
MR481886 HOSE, T/M OIL COOLER LINE |
MR481886 |
US $8.29 |
||
|
25887D
|
25887D
MN114169 HOSE, T/M OIL COOLER LINE |
MN114169 |
US $19.24 |
||
|
25887D
|
25887D
MR597532 HOSE, T/M OIL COOLER LINE |
MR597532 |
US $15.54 |
||
|
25887E
|
25887E
MN114385 HOSE, T/M OIL COOLER LINE |
MN114385 |
US $10.06 |
||
|
25887E
|
25887E
MR481886 HOSE, T/M OIL COOLER LINE |
MR481886 |
US $8.29 |
||
|
25887F
|
25887F
2922A039 HOSE, T/M OIL COOLER LINE |
2922A039 |
US $19.24 |
||
|
25887F
|
25887F
MN114384 HOSE, T/M OIL COOLER LINE |
MN114384 |
US $15.54 |
||
|
25887G
|
25887G
MN114170 HOSE, T/M OIL COOLER LINE |
MN114170 |
US $8.29 |
||
|
25892
|
25892
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.68 |
||
|
25892
|
25892
MR204390
CLIP, T/M OIL COOLER LINE
|
MR204390 |
— | ||
| replacement | |||||
|
25892
|
25892
MR281416 CLIP, T/M OIL COOLER LINED=13.5 |
MR281416 |
from US $1.81 |
||
|
25893
|
25893
MR204390
CLIP, T/M OIL COOLER LINE
|
MR204390 |
— | ||
| replacement | |||||
|
25893
|
25893
MR281416 CLIP, T/M OIL COOLER LINED=13.5 |
MR281416 |
from US $1.81 |
||
|
25895
|
25895
MN114163 BRACKET, T/M OIL COOLER LINE |
MN114163 |
US $6.51 |
||
|
25897B
|
25897B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
25897B
|
25897B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
25897C
|
25897C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
23 110
|
A/t case
23 110
|
||||
|
23 110
|
A/t case
23 110
|
||||
|
23 110
|
A/t case
23 110
|
||||
