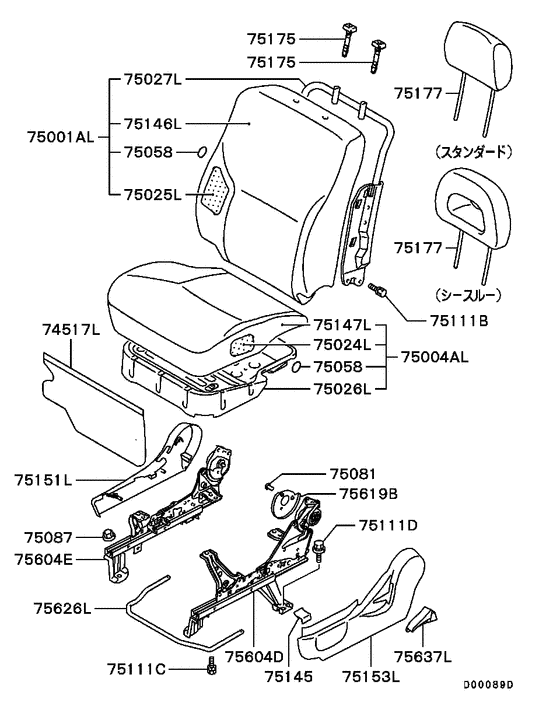

Front seat (LH..W/O UNDER BOX) Diagram Mitsubishi EK-SERIES
- Year
- 2004
- Sales region
- Japan
- Note
- VT COLOR-ED(2WD/TURBO),4CA/T<ACTIVE>
- drive
- 2WD
- transmission
- 4CA/T
- grade
- VT COLOR-ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MN192077HA BACK ASSY, FR SEAT, LH |
MN192077HA |
US $599.87 |
||
|
75004AL
|
75004AL
MN192073HA CUSHION ASSY, FR SEAT, LH |
MN192073HA |
US $599.87 |
||
|
75024L
|
75024L
MN112179 PAD, FR SEAT CUSHION, LH |
MN112179 |
US $179.08 |
||
|
75025L
|
75025L
MN112181 PAD, FR SEAT BACK, LH |
MN112181 |
US $179.08 |
||
|
75026L
|
75026L
MR347798 FRAME, FR SEAT CUSHION, LH |
MR347798 |
US $176.12 |
||
|
75027L
|
75027L
MR966529 FRAME, FR SEAT BACK, LH |
MR966529 |
US $186.48 |
||
|
75081
|
75081
MU000596 RIVET, FR SEAT |
MU000596 |
US $1.63 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75111B
|
75111B
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
75111C
|
75111C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
75111D
|
75111D
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111D
|
75111D
MS240283 BOLT, FR SEAT10x30 |
MS240283 |
US $2.96 |
||
|
75145
|
75145
MR617353 COVER, FR SEAT ANCHOR |
MR617353 |
US $1.63 |
||
|
75146L
|
75146L
MN192079HA COVER, FR SEAT BACK, LH |
MN192079HA |
US $287.12 |
||
|
75147L
|
75147L
MN192075HA COVER, FR SEAT CUSHION, LH |
MN192075HA |
US $287.12 |
||
|
75151L
|
75151L
MR787824 COVER, FR SEAT HINGE, LH |
MR787824 |
US $49.25 |
||
|
75153L
|
75153L
MR787822 COVER, FR SEAT SIDE SHIELD, LH |
MR787822 |
US $53.28 |
||
|
75175
|
75175
MR753562 GUIDE, FR SEAT HEADRESTW/lock |
MR753562 |
US $9.03 |
||
|
75175
|
75175
MR753563 GUIDE, FR SEAT HEADRESTW/o lock |
MR753563 |
US $9.17 |
||
|
75177
|
75177
6971A007HA HEADREST, FR SEATSee through type |
6971A007HA |
US $253.08 |
||
|
75604D
|
75604D
MR973961XA ADJUSTER, FR SEAT SLIDE |
MR973961XA |
US $153.92 |
||
|
75604E
|
75604E
MN189405 ADJUSTER, FR SEAT SLIDE |
MN189405 |
US $142.08 |
||
|
75619B
|
75619B
MR789472 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR789472 |
US $9.62 |
||
|
75626L
|
75626L
MR378019 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MR378019 |
US $27.38 |
||
|
75637L
|
75637L
MR784640 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR784640 |
US $12.04 |
