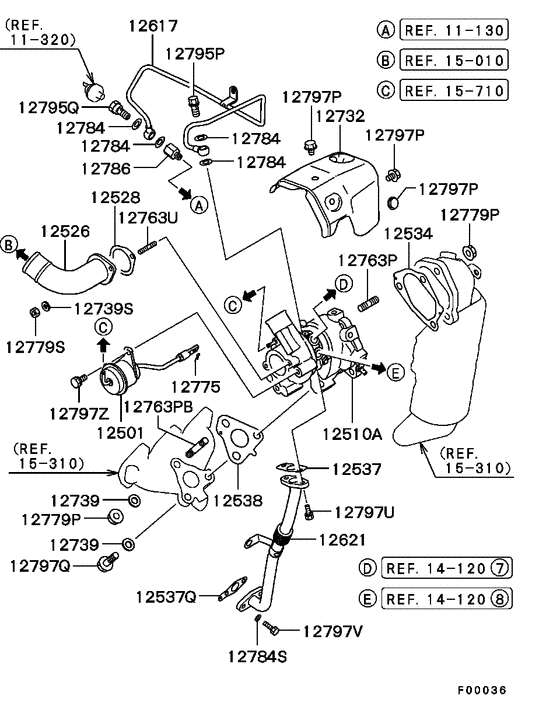

Turbocharger & supercharger (ALL (ASSEMBLY)) Diagram Mitsubishi EK-SERIES
- Year
- 2004 - 2005
- Sales region
- Japan
- Note
- LIMITED-ED VT(4WD/TURBO),4CA/T<ACTIVE>
- drive
- 4WD
- transmission
- 4CA/T
- grade
- LIMITED-ED VT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12501
|
12501
MN122087 ACTUATOR, T/C WASTE GATE |
MN122087 |
US $242.72 |
||
|
12510A
|
12510A
MN122086 TURBOCHARGER SUB ASSY |
MN122086 |
US $2,736 |
||
|
12526
|
12526
MR561876 FITTING, T/C AIR INLET |
MR561876 |
US $29.60 |
||
|
12528
|
12528
MD308425 GASKET, T/C AIR INLET FITTING |
MD308425 |
from US $3.39 |
||
|
12534
|
12534
MR464019 GASKET, T/C EXHAUST OUTLET FITTING |
MR464019 |
from US $8.66 |
||
|
12537
|
12537
MD151499 GASKET, T/C OIL RETURN TUBE, CTR |
MD151499 |
US $3.69 |
||
|
12537Q
|
12537Q
MR258477 GASKET, T/C OIL RETURN TUBE |
MR258477 |
from US $1.70 |
||
|
12538
|
12538
MR497479 GASKET, T/C EXHAUST GAS INLET HOLE |
MR497479 |
US $10.80 |
||
|
12617
|
12617
MN122430 TUBE, T/C OIL FEED |
MN122430 |
US $43.66 |
||
| replacement | |||||
|
12617
|
12617
1225A182 TUBE, T/C OIL FEED |
1225A182 |
US $33.30 |
||
|
12621
|
12621
MN122133 TUBE, T/C OIL RETURN |
MN122133 |
US $63.64 |
||
|
12732
|
12732
MN122115 PROTECTOR, T/C |
MN122115 |
US $31.08 |
||
|
12739
|
12739
MD050076 WASHER, EXHAUST MANIFOLDPlain,10 |
MD050076 |
from US $1.25 |
||
|
12739S
|
12739S
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
12763P
|
12763P
MD143890 STUD, T/C10x12 |
MD143890 |
US $6.66 |
||
|
12763PB
|
12763PB
MD302753 STUD, T/C10x60 |
MD302753 |
US $6.07 |
||
|
12763U
|
12763U
MS401402 STUD, T/C INR6x16 |
MS401402 |
US $1.78 |
||
|
12775
|
12775
MF472303 PIN, HOIST CONTROL LINKSnap,6x21.2 |
MF472303 |
from US $0.99 |
||
|
12779P
|
12779P
MD132930 NUT, T/CFlange,10 |
MD132930 |
from US $4.10 |
||
|
12779S
|
12779S
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
12784
|
12784
MF660063 GASKET, CYLINDER HEAD PLUGD=10 |
MF660063 |
from US $0.43 |
||
|
12784S
|
12784S
MF660031 GASKET, ENG MECHANICAL GOVERNORD=6 |
MF660031 |
US $1.92 |
||
|
12786
|
12786
MR212765 JOINT, T/C |
MR212765 |
US $9.92 |
||
|
12795P
|
12795P
MD199686 EYEBOLT, T/C10x20 |
MD199686 |
US $6.66 |
||
|
12795Q
|
12795Q
MD196129 EYEBOLT, T/C10x20 |
MD196129 |
US $6.66 |
||
|
12797P
|
12797P
MD067956 BOLT, EXHAUST MANIFOLDFlange,8x12 |
MD067956 |
from US $1.23 |
||
|
12797Q
|
12797Q
MD168601 BOLT, T/CFlange,10x35 |
MD168601 |
from US $8.90 |
||
|
12797U
|
12797U
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
12797V
|
12797V
MF101229 BOLT, TIMING POWER TRAIN CASE6x20 |
MF101229 |
US $3.28 |
||
|
12797Z
|
12797Z
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
