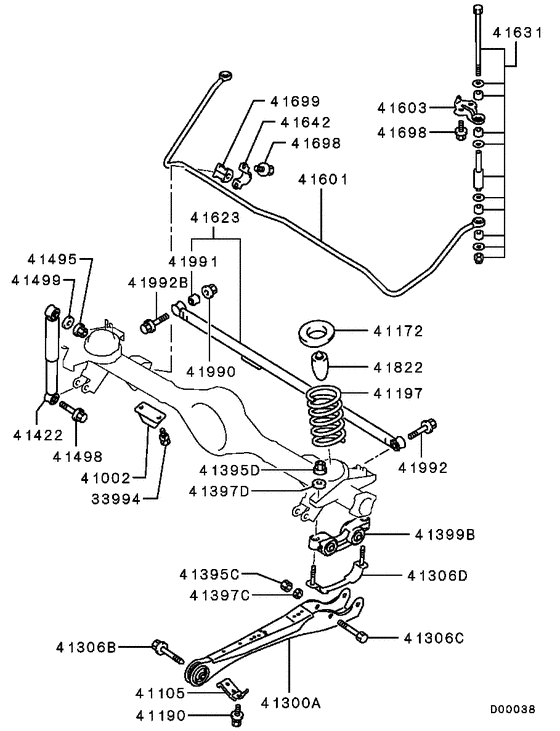

Rear susp (4WD..W/TURBO) Diagram Mitsubishi EK-SERIES
- Year
- 2004
- Sales region
- Japan
- Note
- VT COLOR-ED(4WD/TURBO),4CA/T<ACTIVE>
- drive
- 4WD
- transmission
- 4CA/T
- grade
- VT COLOR-ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33994
|
33994
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
41002
|
41002
MB002670 DAMPER, RR SUSP CROSSMEMBER DYNAMIC |
MB002670 |
US $11.69 |
||
|
41105
|
41105
MR961875 BRACKET, RR SUSP TRAILING ARM |
MR961875 |
US $11.40 |
||
|
41172
|
41172
MB242736 SHEET, RR SUSP SPRING, UPR |
MB242736 |
from US $5.75 |
||
|
41190
|
41190
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
41197
|
41197
MN113446 SPRING, RR SUSP COIL |
MN113446 |
US $67.34 |
||
|
41300A
|
41300A
MN110242 ARM ASSY, RR SUSP, LWR |
MN110242 |
US $119.70 |
||
|
41306B
|
41306B
MU001072 BOLT, RR SUSP TORSION AXLE |
MU001072 |
US $4.59 |
||
|
41306B
|
41306B
MU140035 BOLT, RR SUSP LWR ARM |
MU140035 |
from US $4.39 |
||
|
41306C
|
41306C
MU100045 BOLT, RR SUSP LWR ARM |
MU100045 |
US $5.88 |
||
|
41306D
|
41306D
MR319257 BOLT, RR SUSP LWR ARM |
MR319257 |
US $17.02 |
||
|
41395C
|
41395C
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.21 |
||
|
41395D
|
41395D
MR519248 NUT, RR SUSP LWR ARM |
MR519248 |
US $2.37 |
||
|
41397C
|
41397C
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
41397D
|
41397D
MD320625 WASHER, P/S OIL PUMPPlain,10.5 |
MD320625 |
US $2.60 |
||
|
41399B
|
41399B
MR319250 BUSHING, RR SUSP LWR ARM |
MR319250 |
from US $65.66 |
||
|
41422
|
41422
MN113448 SHOCK ABSORBER, RR SUSP |
MN113448 |
US $117.66 |
||
|
41495
|
41495
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
41498
|
41498
MU140046 BOLT, RR SWAY BAR |
MU140046 |
US $5.62 |
||
|
41499
|
41499
MD320625 WASHER, P/S OIL PUMPPlain,10.5 |
MD320625 |
US $2.60 |
||
|
41623
|
41623
MN110284 ROD, RR SUSP LATERAL |
MN110284 |
US $46.62 |
||
|
41822
|
41822
MB242737 STOPPER, RR SUSP LWR ARM BUMP |
MB242737 |
US $27.36 |
||
|
41822
|
41822
MN113450 STOPPER, RR SUSP LWR ARM BUMP |
MN113450 |
US $28.12 |
||
|
41990
|
41990
MH004161 NUT, CHASSIS FRAMEFlange,12 |
MH004161 |
from US $1.91 |
||
|
41991
|
41991
MT190817 BUSHING, RR SWAY BAR |
MT190817 |
US $3.42 |
||
|
41992
|
41992
MU140080 BOLT, FR SUSP CTR MEMBERFlange,12x56 |
MU140080 |
from US $2.65 |
||
|
41992B
|
41992B
MU140080 BOLT, FR SUSP CTR MEMBERFlange,12x56 |
MU140080 |
from US $2.65 |
