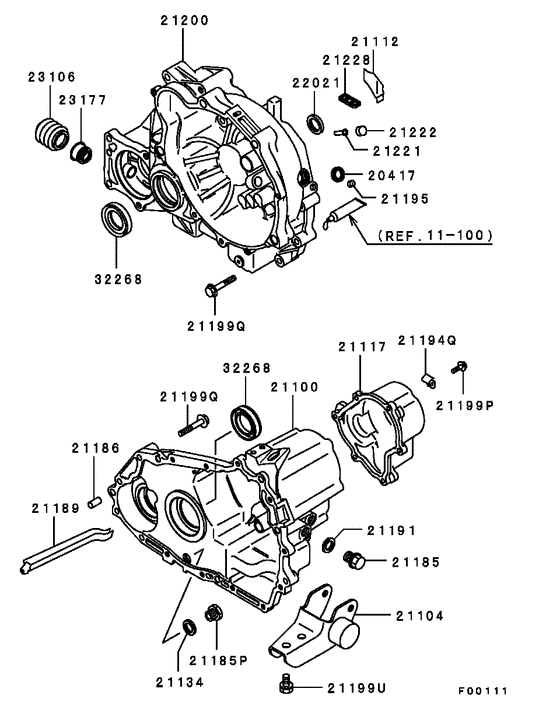

M/t case (4WD (T/M CASE)) Diagram Mitsubishi EK-SERIES
- Year
- 2004 - 2006
- Sales region
- Japan
- Note
- M(4WD),5FM/T<WAGON>
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20417
|
20417
MT209170 DUST SEAL, CLUTCH RELEASE FORK SHAFT |
MT209170 |
from US $3.10 |
||
|
21100
|
21100
MR166038 CASE, M/T |
MR166038 |
US $385.84 |
||
|
21104
|
21104
MR350434 BRACKET, M/T CASE MOUNTING |
MR350434 |
US $34.78 |
||
|
21112
|
21112
MD716700 COVER, M/T CASE BREATHER HOLE |
MD716700 |
US $4.44 |
||
|
21117
|
21117
MD741555 COVER, M/T CASE 5TH GEAR |
MD741555 |
US $68.08 |
||
|
21134
|
21134
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
21185
|
21185
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21185P
|
21185P
MB001293
PLUG, M/T CASE
|
MB001293 |
— | ||
| replacement | |||||
|
21185P
|
21185P
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
21186
|
21186
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21189
|
21189
MD722377 OIL GUIDE, M/T CASE |
MD722377 |
US $7.99 |
||
|
21191
|
21191
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21194Q
|
21194Q
MD949517 CLAMP, M/T CASE |
MD949517 |
US $6.51 |
||
|
21195
|
21195
MF665531 CAP, CYLINDER HEAD10 |
MF665531 |
US $2.22 |
||
|
21199P
|
21199P
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
21199Q
|
21199Q
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.40 |
||
|
21199U
|
21199U
MD730418 BOLT, M/T CASEFlange,12x25 |
MD730418 |
US $5.18 |
||
|
21200
|
21200
2315A014 HOUSING, CLUTCH |
2315A014 |
US $433.89 |
||
|
21221
|
21221
MT209220 PIPE, CLUTCH HOUSING BREATHER |
MT209220 |
US $3.11 |
||
|
21222
|
21222
MT209219 CAP, CLUTCH HOUSING BREATHER PIPE |
MT209219 |
US $2.37 |
||
|
21228
|
21228
2921A001 STRAINER, M/T CLUTCH HOUSING OIL |
2921A001 |
US $9.92 |
||
|
22021
|
22021
MN114457 OIL SEAL, M/T MAIN DRIVE PINION |
MN114457 |
US $4.65 |
||
|
23106
|
23106
MD740129 BOOT, M/T GEARSHIFT SHAFT |
MD740129 |
US $4.10 |
||
|
23177
|
23177
MR477996 OIL SEAL, M/T GEARSHIFT SHAFT |
MR477996 |
US $7.93 |
||
|
32268
|
32268
MD700604 OIL SEAL, FR AXLE JOINT |
MD700604 |
US $7.40 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
|
32268
|
32268
MN113514 OIL SEAL, T/M FR DIFF CASE |
MN113514 |
US $5.48 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
