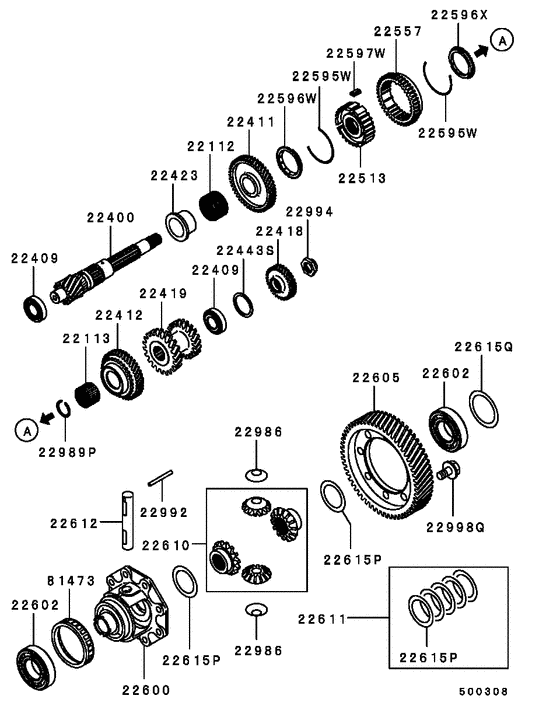

M/t gear (ALL (OUTPUT SHAFT,DIFF CASE)) Diagram Mitsubishi EK-SERIES
- Year
- 2004 - 2006
- Sales region
- Japan
- Note
- M(4WD),5FM/T<WAGON>
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22112
|
22112
MD739316 BEARING, M/T O/D GEARNeedle,42 |
MD739316 |
US $19.24 |
||
|
22113
|
22113
MD739317 BEARING, M/T O/D GEARNeedle,34 |
MD739317 |
US $17.02 |
||
|
22400
|
22400
MD741656 SHAFT, M/T OUTPUTN=13 |
MD741656 |
US $211.64 |
||
|
22409
|
22409
MD741658 BEARING, M/T OUTPUT SHAFTTaper roller,52 |
MD741658 |
US $20.52 |
||
|
22411
|
22411
MR331404 GEAR, M/T OUTPUT SHAFT 1ST SPEEDN=39 |
MR331404 |
US $119.88 |
||
|
22412
|
22412
MD744307 GEAR, M/T OUTPUT SHAFT 2ND SPEEDN=37 |
MD744307 |
US $140.60 |
||
|
22418
|
22418
MD741638 GEAR, M/T OUTPUT SHAFT 5TH SPEEDN=25 |
MD741638 |
US $110.26 |
||
|
22419
|
22419
MD741660 GEAR, M/T OUTPUT SHAFT 3RD & 4TH SPEED |
MD741660 |
US $116.92 |
||
|
22423
|
22423
MD739315 SLEEVE, M/T OUTPUT SHAFT 1ST SPEED GEAR |
MD739315 |
US $34.04 |
||
|
22443S
|
22443S
MD712653 SPACER, M/T INPUT SHAFT1.27 |
MD712653 |
US $5.18 |
||
|
22443S
|
22443S
MD712654 SPACER, A/T POWER TRAIN1.30 |
MD712654 |
US $5.18 |
||
|
22443S
|
22443S
MD712655 SPACER, A/T POWER TRAIN1.33 |
MD712655 |
US $5.18 |
||
|
22443S
|
22443S
MD712656 SPACER, M/T INPUT SHAFT1.36 |
MD712656 |
US $5.18 |
||
|
22443S
|
22443S
MD712657 SPACER, A/T POWER TRAIN1.39 |
MD712657 |
US $5.18 |
||
|
22443S
|
22443S
MD712658 SPACER, A/T POWER TRAIN1.42 |
MD712658 |
US $5.18 |
||
|
22443S
|
22443S
MD712659 SPACER, M/T INPUT SHAFT1.45 |
MD712659 |
US $5.18 |
||
|
22443S
|
22443S
MD712660 SPACER, A/T POWER TRAIN1.48 |
MD712660 |
US $5.18 |
||
|
22443S
|
22443S
MD712661 SPACER, A/T POWER TRAIN1.51 |
MD712661 |
US $5.18 |
||
|
22443S
|
22443S
MD712662 SPACER, M/T INPUT SHAFT1.54 |
MD712662 |
US $5.18 |
||
|
22443S
|
22443S
MD712663 SPACER, A/T POWER TRAIN1.57 |
MD712663 |
US $5.18 |
||
|
22443S
|
22443S
MD712664 SPACER, A/T POWER TRAIN1.60 |
MD712664 |
US $5.18 |
||
|
22443S
|
22443S
MD712665 SPACER, M/T INPUT SHAFT1.63 |
MD712665 |
US $5.18 |
||
|
22443S
|
22443S
MD712666 SPACER, A/T POWER TRAIN1.66 |
MD712666 |
US $5.18 |
||
|
22443S
|
22443S
MD712667 SPACER, A/T POWER TRAIN1.69 |
MD712667 |
US $5.18 |
||
|
22443S
|
22443S
MD722807 SPACER, M/T INPUT SHAFT1.72 |
MD722807 |
US $5.18 |
||
|
22443S
|
22443S
MD722808 SPACER, M/T INPUT SHAFT1.81 |
MD722808 |
US $5.18 |
||
|
22443S
|
22443S
MD737736 SPACER, M/T POWER TRAIN1.75 |
MD737736 |
US $5.18 |
||
|
22443S
|
22443S
MD741664 SPACER, M/T POWER TRAIN1.78 |
MD741664 |
US $7.99 |
||
|
22443S
|
22443S
MD741665 SPACER, M/T POWER TRAIN1.84 |
MD741665 |
US $7.99 |
||
|
22443S
|
22443S
MD741666 SPACER, M/T POWER TRAIN1.87 |
MD741666 |
US $7.99 |
||
|
22443S
|
22443S
MD741667 SPACER, M/T POWER TRAIN1.90 |
MD741667 |
US $7.99 |
||
|
22443S
|
22443S
MD741668 SPACER, M/T POWER TRAIN1.93 |
MD741668 |
US $7.99 |
||
|
22513
|
22513
MD739346 HUB, M/T 1ST & 2ND SYNCH |
MD739346 |
US $45.88 |
||
|
22513
|
22513
MD741011 HUB, M/T 1ST & 2ND SYNCH |
MD741011 |
US $48.10 |
||
|
22557
|
22557
MR222310 SLEEVE, M/T 1ST & 2ND SYNCH |
MR222310 |
US $71.04 |
||
|
22595W
|
22595W
MR477865 SPRING, M/T SYNCH KEY |
MR477865 |
US $3.55 |
||
|
22596W
|
22596W
MR331399 RING, M/T SYNCH |
MR331399 |
US $44.40 |
||
|
22596X
|
22596X
MD744304 RING, M/T SYNCH |
MD744304 |
US $44.40 |
||
|
22597W
|
22597W
MD740804 KEY, M/T SYNCH |
MD740804 |
US $5.03 |
||
|
22600
|
22600
MR446591 CASE, M/T DIFF |
MR446591 |
US $297.02 |
||
|
22602
|
22602
MD741659 BEARING, M/T DIFF CASEBall,66 |
MD741659 |
US $25.31 |
||
|
22605
|
22605
MR967056 GEAR, M/T DIFF DRIVEN=72 |
MR967056 |
US $187.96 |
||
|
22610
|
22610
MD741906 GEAR KIT, M/T DIFF |
MD741906 |
US $211.64 |
||
|
22611
|
22611
MD979053 SPACER SET, M/T DIFF SIDE GEAR |
MD979053 |
US $45.14 |
||
|
22612
|
22612
MB569049 SHAFT, RR DIFF PINION |
MB569049 |
US $17.76 |
||
|
22615Q
|
22615Q
3503A025 SPACER, M/T DIFF1.13 |
3503A025 |
US $5.18 |
||
|
22615Q
|
22615Q
MD741504 SPACER, M/T DIFF1.22 |
MD741504 |
US $6.96 |
||
|
22615Q
|
22615Q
MD741505 SPACER, A/T POWER TRAIN1.31 |
MD741505 |
US $5.48 |
||
|
22615Q
|
22615Q
MD741506 SPACER, A/T POWER TRAIN1.40 |
MD741506 |
US $5.48 |
||
|
22615Q
|
22615Q
MD741507 SPACER, A/T POWER TRAIN1.58 |
MD741507 |
US $5.48 |
||
|
22615Q
|
22615Q
MD741508 SPACER, A/T POWER TRAIN1.58 |
MD741508 |
US $5.48 |
||
|
22986
|
22986
MB569044 WASHER, RR DIFF16.3 |
MB569044 |
from US $3.35 |
||
|
22989P
|
22989P
MD739322 SNAP RING, M/T POWER TRAIN1.41 |
MD739322 |
US $4.44 |
||
|
22989P
|
22989P
MD739323 SNAP RING, M/T POWER TRAIN1.47 |
MD739323 |
US $4.59 |
||
|
22989P
|
22989P
MD739324 SNAP RING, M/T POWER TRAIN1.53 |
MD739324 |
US $4.59 |
||
|
22989P
|
22989P
MD739325 SNAP RING, M/T POWER TRAIN1.59 |
MD739325 |
US $4.59 |
||
|
22992
|
22992
MD711082 PIN, M/T POWER TRAINSplit,4x52 |
MD711082 |
US $3.55 |
||
|
22994
|
22994
MD739339 NUT, M/T POWER TRAINLock,18 |
MD739339 |
US $7.25 |
||
|
22998Q
|
22998Q
MD040557 BOLT, CRANKSHAFTFlange,12x22.5 |
MD040557 |
US $4.24 |
||
|
81473
|
81473
MR593590 ROTOR, T/M SPEED SENSOR |
MR593590 |
US $28.86 |
||
|
81473
|
81473
MR983362 ROTOR, T/M SPEED SENSOR |
MR983362 |
US $44.40 |
