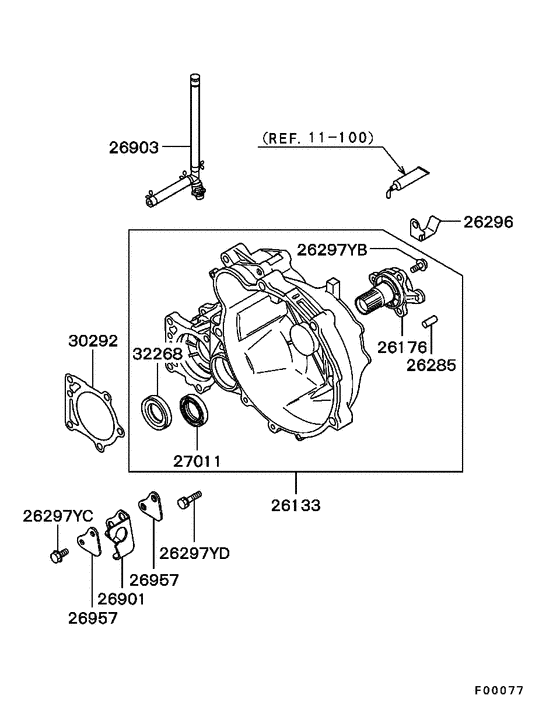

A/t case (3-SPEED 4WD (CONVERTER HOUSING ETC.)) Diagram Mitsubishi EK-SERIES
- Year
- 2001 - 2004
- Sales region
- Japan
- Note
- M X-PKG/SOUND BEAT M(4WD),3CA/T<WAGON>
- drive
- 4WD
- transmission
- 3CA/T
- grade
- M X-PKG/SOUND B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26133
|
26133
MN113885 HOUSING, A/T TORQUE CONVERTER |
MN113885 |
US $390.21 |
||
|
26133
|
26133
MR967035 HOUSING, A/T TORQUE CONVERTER |
MR967035 |
US $519.79 |
||
|
26176
|
26176
MR967037 SHAFT, A/T CONVERTER HOUSING REACTION |
MR967037 |
US $137.64 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26296
|
26296
MR483061 BRACKET, A/T CASE |
MR483061 |
US $1.92 |
||
|
26297YB
|
26297YB
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
26297YC
|
26297YC
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
26297YD
|
26297YD
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
26297YD
|
26297YD
MR110892 BOLT, A/T CASEWasher assmbled,8x28 |
MR110892 |
US $6.22 |
||
|
26901
|
26901
MR367335 BRACKET, A/T CONTROL CABLE SUPPORT |
MR367335 |
US $6.81 |
||
|
26903
|
26903
MR983235 HOSE, A/T BREATHER |
MR983235 |
US $41.44 |
||
|
26957
|
26957
MD735648 INSULATOR, A/T CONTROL CABLE SUPPORT BRACKET |
MD735648 |
US $10.80 |
||
|
27011
|
27011
MD707575 OIL SEAL, A/T OIL PUMP BODY |
MD707575 |
from US $10.51 |
||
| replacement | |||||
|
27011
|
27011
MR967673 OIL SEAL, A/T CONVERTER HOUSING |
MR967673 |
from US $8.29 |
||
|
30292
|
30292
MR110541 GASKET, T/F CASE |
MR110541 |
US $5.92 |
||
| replacement | |||||
|
30292
|
30292
3201A016 GASKET, T/F CASE |
3201A016 |
US $7.52 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
|
32268
|
32268
MN113514 OIL SEAL, T/M FR DIFF CASE |
MN113514 |
US $5.48 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
