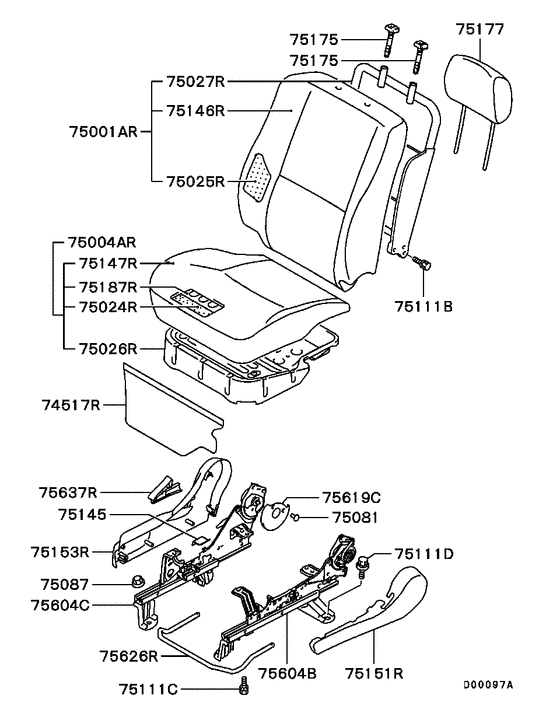

Front seat (RH..SEPARATE(W/O HEIGHT CONTROL)) Diagram Mitsubishi EK-SERIES
- Year
- 2002 - 2005
- Sales region
- Japan
- Note
- M BLACK INT/BLOOM-ED(4WD),3CA/T<WAGON>
- drive
- 4WD
- transmission
- 3CA/T
- grade
- M BLACK INT/BLO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74517R
|
74517R
MN118396 CARPET, SEAT PAN, RH |
MN118396 |
US $49.58 |
||
|
75001AR
|
75001AR
6901A368YA BACK ASSY, FR SEAT, RH |
6901A368YA |
US $661.02 |
||
|
75001AR
|
75001AR
MN157182YA BACK ASSY, FR SEAT, RH |
MN157182YA |
US $661.02 |
||
|
75001AR
|
75001AR
MR966524XA BACK ASSY, FR SEAT, RH |
MR966524XA |
US $599.87 |
||
|
75004AR
|
75004AR
6911A248YA CUSHION ASSY, FR SEAT, RH |
6911A248YA |
US $1,020.66 |
||
|
75004AR
|
75004AR
MN118440XA CUSHION ASSY, FR SEAT, RH |
MN118440XA |
US $927.47 |
||
|
75004AR
|
75004AR
MN157178YA CUSHION ASSY, FR SEAT, RH |
MN157178YA |
US $1,020.66 |
||
|
75004AR
|
75004AR
MR966522XA CUSHION ASSY, FR SEAT, RH |
MR966522XA |
US $716.35 |
||
|
75024R
|
75024R
MN157402 PAD, FR SEAT CUSHION, RH |
MN157402 |
US $216.08 |
||
|
75024R
|
75024R
MN157956 PAD, FR SEAT CUSHION, RH |
MN157956 |
US $216.08 |
||
|
75024R
|
75024R
MR966526 PAD, FR SEAT CUSHION, RH |
MR966526 |
US $216.08 |
||
|
75025R
|
75025R
MR986128 PAD, FR SEAT BACK, RH |
MR986128 |
US $179.08 |
||
|
75026R
|
75026R
MR562634 FRAME, FR SEAT CUSHION, RH |
MR562634 |
US $211.64 |
||
|
75027R
|
75027R
MR966530 FRAME, FR SEAT BACK, RH |
MR966530 |
US $186.48 |
||
|
75081
|
75081
MR378793 RIVET, FR SEAT |
MR378793 |
US $2.52 |
||
|
75081
|
75081
MU000596 RIVET, FR SEAT |
MU000596 |
US $1.63 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75111B
|
75111B
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
75111C
|
75111C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
75111D
|
75111D
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111D
|
75111D
MS240283 BOLT, FR SEAT10x30 |
MS240283 |
US $2.96 |
||
|
75145
|
75145
MR617353 COVER, FR SEAT ANCHOR |
MR617353 |
US $1.63 |
||
|
75145
|
75145
MR648688 COVER, FR SEAT ANCHOR |
MR648688 |
US $1.63 |
||
|
75146R
|
75146R
6901A374YA COVER, FR SEAT BACK, RH |
6901A374YA |
US $311.58 |
||
|
75146R
|
75146R
MN157184YA COVER, FR SEAT BACK, RH |
MN157184YA |
US $311.58 |
||
|
75146R
|
75146R
MR966532XA COVER, FR SEAT BACK, RH |
MR966532XA |
US $287.12 |
||
|
75147R
|
75147R
6911A254YA COVER, FR SEAT CUSHION, RH |
6911A254YA |
US $365.46 |
||
|
75147R
|
75147R
MN157180YA COVER, FR SEAT CUSHION, RH |
MN157180YA |
US $365.46 |
||
|
75147R
|
75147R
MR966528XA COVER, FR SEAT CUSHION, RH |
MR966528XA |
US $287.12 |
||
|
75151R
|
75151R
MR638806 COVER, FR SEAT HINGE, RH |
MR638806 |
US $34.78 |
||
|
75151R
|
75151R
MR648691 COVER, FR SEAT HINGE, RH |
MR648691 |
US $34.78 |
||
|
75151R
|
75151R
MR787825 COVER, FR SEAT HINGE, RH |
MR787825 |
US $34.78 |
||
|
75153R
|
75153R
MR618010 COVER, FR SEAT SIDE SHIELD, RH |
MR618010 |
US $53.28 |
||
|
75153R
|
75153R
MR638804 COVER, FR SEAT SIDE SHIELD, RH |
MR638804 |
US $53.28 |
||
|
75153R
|
75153R
MR648692 COVER, FR SEAT SIDE SHIELD, RH |
MR648692 |
US $53.28 |
||
|
75153R
|
75153R
MR787823 COVER, FR SEAT SIDE SHIELD, RH |
MR787823 |
US $53.28 |
||
|
75175
|
75175
MR648196 GUIDE, 2ND SEAT HEADRESTW/lock |
MR648196 |
US $9.62 |
||
|
75175
|
75175
MR648197 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR648197 |
from US $7.02 |
||
|
75175
|
75175
MR753562 GUIDE, FR SEAT HEADRESTW/lock |
MR753562 |
US $9.03 |
||
|
75175
|
75175
MR753563 GUIDE, FR SEAT HEADRESTW/o lock |
MR753563 |
US $9.17 |
||
|
75177
|
75177
MR644022 HEADREST, FR SEAT |
MR644022 |
US $189.44 |
||
|
75177
|
75177
MR648700 HEADREST, RR SEAT |
MR648700 |
US $189.44 |
||
|
75177
|
75177
MR652505 HEADREST, RR SEATSee through type |
MR652505 |
US $189.44 |
||
|
75187R
|
75187R
MN118393 HEATER, FR SEAT CUSHION, RH |
MN118393 |
US $183.52 |
||
|
75604B
|
75604B
MN189406 ADJUSTER, FR SEAT SLIDE |
MN189406 |
US $142.08 |
||
|
75604B
|
75604B
MR562624 ADJUSTER, FR SEAT SLIDE |
MR562624 |
US $156.88 |
||
|
75604B
|
75604B
MR966520 ADJUSTER, FR SEAT SLIDE |
MR966520 |
US $173.16 |
||
|
75604C
|
75604C
MR595936XA ADJUSTER, FR SEAT SLIDE |
MR595936XA |
US $205.72 |
||
|
75604C
|
75604C
MR595936YA ADJUSTER, FR SEAT SLIDE |
MR595936YA |
US $205.72 |
||
|
75604C
|
75604C
MR639848 ADJUSTER, FR SEAT SLIDE |
MR639848 |
US $257.52 |
||
|
75604C
|
75604C
MR648695 ADJUSTER, FR SEAT SLIDE |
MR648695 |
US $168.72 |
||
|
75619C
|
75619C
MR789473 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR789473 |
US $9.62 |
||
|
75626R
|
75626R
MR378020 LEVER, FR SEAT SLIDE ADJUSTER, RH |
MR378020 |
US $27.38 |
||
|
75637R
|
75637R
MR638812 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR638812 |
US $5.92 |
||
|
75637R
|
75637R
MR648697 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR648697 |
US $11.40 |
||
|
75637R
|
75637R
MR784641 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR784641 |
US $12.04 |
