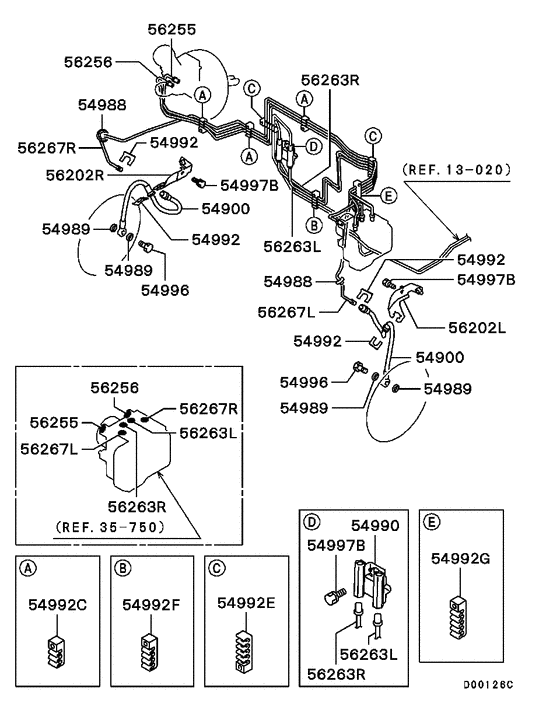

Brake line (FRONT..W/ABS 0208.1-) Diagram Mitsubishi EK-SERIES
- Year
- 2002 - 2003
- Sales region
- Japan
- Note
- Z(2WD),3CA/T<SPORT>
- drive
- 2WD
- transmission
- 3CA/T
- grade
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR370017 HOSE, FR BRAKE222+205 |
MR370017 |
US $25.90 |
||
|
54900
|
54900
MR977299 HOSE, FR BRAKE222+210 |
MR977299 |
US $39.22 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54990
|
54990
MR370785 JOINT, BRAKE FLUID LINE |
MR370785 |
US $14.80 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992C
|
54992C
MR128780 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MR128780 |
from US $1.52 |
||
|
54992E
|
54992E
MR129463 CLIP, BRAKE FLUID LINE4.76-4.76-4.76-4.76-4.76 |
MR129463 |
from US $3.06 |
||
|
54992F
|
54992F
MR205046 CLIP, BRAKE FLUID LINE4.8-4.8-4.8-4.8 |
MR205046 |
US $3.97 |
||
|
54992G
|
54992G
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
54992G
|
54992G
MR449542 CLIP, BRAKE FLUID LINE |
MR449542 |
US $3.40 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997B
|
54997B
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
56202L
|
56202L
MR334990 BRACKET, BRAKE HOSE, LH |
MR334990 |
US $8.58 |
||
|
56202L
|
56202L
MR334992 BRACKET, BRAKE HOSE, LH |
MR334992 |
US $10.95 |
||
|
56202R
|
56202R
MR334991 BRACKET, BRAKE HOSE, RH |
MR334991 |
US $8.58 |
||
|
56202R
|
56202R
MR334993 BRACKET, BRAKE HOSE, RH |
MR334993 |
US $10.95 |
||
|
56255
|
56255
MN110047 TUBE, BRAKE M/CYL PRIMARY |
MN110047 |
US $22.20 |
||
|
56256
|
56256
MN110048 TUBE, BRAKE M/CYL SECONDARY |
MN110048 |
US $22.20 |
||
|
56263L
|
56263L
MN110051 TUBE, BRAKE MAIN, FR LH |
MN110051 |
US $14.80 |
||
|
56263R
|
56263R
MN110052 TUBE, BRAKE MAIN, FR RH |
MN110052 |
US $15.54 |
||
|
56267L
|
56267L
MN110049 TUBE, FR BRAKE, LH |
MN110049 |
US $10.95 |
||
|
56267L
|
56267L
MR334975 TUBE, FR BRAKE, LH |
MR334975 |
US $22.20 |
||
|
56267R
|
56267R
MN110050 TUBE, FR BRAKE, RH |
MN110050 |
US $25.16 |
||
|
56267R
|
56267R
MR334976 TUBE, FR BRAKE, RH |
MR334976 |
US $9.77 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
35 750
|
Modulator
35 750
|
||||
|
35 750
|
Modulator
35 750
|
||||
