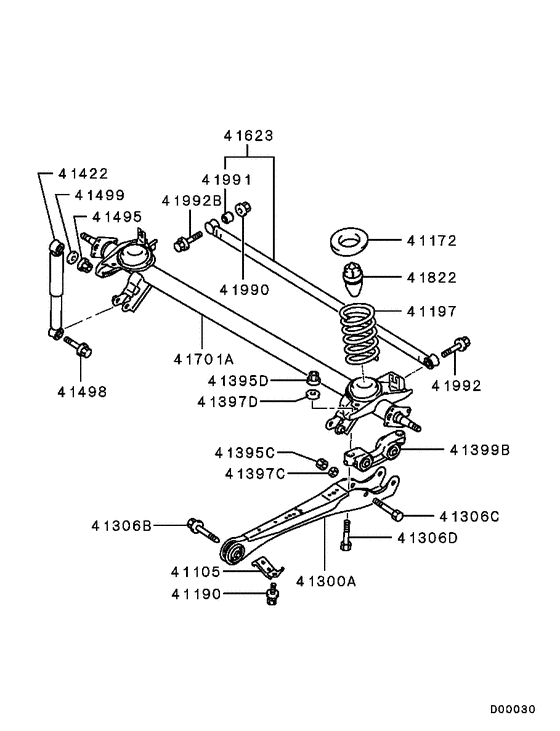

Rear susp (2WD..W/O TURBO) Diagram Mitsubishi EK-SERIES
- Year
- 2002 - 2003
- Sales region
- Japan
- Note
- Z(2WD),3CA/T<SPORT>
- drive
- 2WD
- transmission
- 3CA/T
- grade
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41172
|
41172
MB242736 SHEET, RR SUSP SPRING, UPR |
MB242736 |
from US $5.75 |
||
|
41197
|
41197
MN110290 SPRING, RR SUSP COIL |
MN110290 |
US $74 |
||
|
41197
|
41197
MN113608 SPRING, RR SUSP COIL |
MN113608 |
US $69.08 |
||
|
41300A
|
41300A
MN110241
ARM ASSY, RR SUSP, LWR
|
MN110241 |
— | ||
| replacement | |||||
|
41300A
|
41300A
MN110242 ARM ASSY, RR SUSP, LWR |
MN110242 |
US $119.70 |
||
|
41306B
|
41306B
MU001072 BOLT, RR SUSP TORSION AXLE |
MU001072 |
US $4.59 |
||
|
41306B
|
41306B
MU140035 BOLT, RR SUSP LWR ARM |
MU140035 |
from US $4.39 |
||
|
41306C
|
41306C
MU100045 BOLT, RR SUSP LWR ARM |
MU100045 |
US $5.88 |
||
|
41306D
|
41306D
MF106094 BOLT, RR SUSP LWR ARM10x55 |
MF106094 |
US $4.88 |
||
|
41395C
|
41395C
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.21 |
||
|
41395D
|
41395D
MR519248 NUT, RR SUSP LWR ARM |
MR519248 |
US $2.37 |
||
|
41397C
|
41397C
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
41397D
|
41397D
MD320625 WASHER, P/S OIL PUMPPlain,10.5 |
MD320625 |
US $2.60 |
||
|
41399B
|
41399B
MR519191 BUSHING, RR SUSP LWR ARM |
MR519191 |
US $52.54 |
||
|
41422
|
41422
MN110292 SHOCK ABSORBER, RR SUSP |
MN110292 |
US $117.66 |
||
|
41495
|
41495
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
41498
|
41498
MU140046 BOLT, RR SWAY BAR |
MU140046 |
US $5.62 |
||
|
41499
|
41499
MD320625 WASHER, P/S OIL PUMPPlain,10.5 |
MD320625 |
US $2.60 |
||
|
41623
|
41623
MR319262 ROD, RR SUSP LATERAL |
MR319262 |
US $40.70 |
||
|
41701A
|
41701A
MR589606 AXLE & ARM ASSY, RR SUSP TORSION |
MR589606 |
US $358.18 |
||
|
41701A
|
41701A
MR589607 AXLE & ARM ASSY, RR SUSP TORSION |
MR589607 |
US $324.69 |
||
|
41822
|
41822
MB242737 STOPPER, RR SUSP LWR ARM BUMP |
MB242737 |
US $27.36 |
||
|
41822
|
41822
MN110294 STOPPER, RR SUSP LWR ARM BUMP |
MN110294 |
US $14.50 |
||
|
41990
|
41990
MH004161 NUT, CHASSIS FRAMEFlange,12 |
MH004161 |
from US $1.91 |
||
|
41991
|
41991
MT190817 BUSHING, RR SWAY BAR |
MT190817 |
US $3.42 |
||
|
41992
|
41992
MU140080 BOLT, FR SUSP CTR MEMBERFlange,12x56 |
MU140080 |
from US $2.65 |
||
|
41992B
|
41992B
MU140080 BOLT, FR SUSP CTR MEMBERFlange,12x56 |
MU140080 |
from US $2.65 |
||
