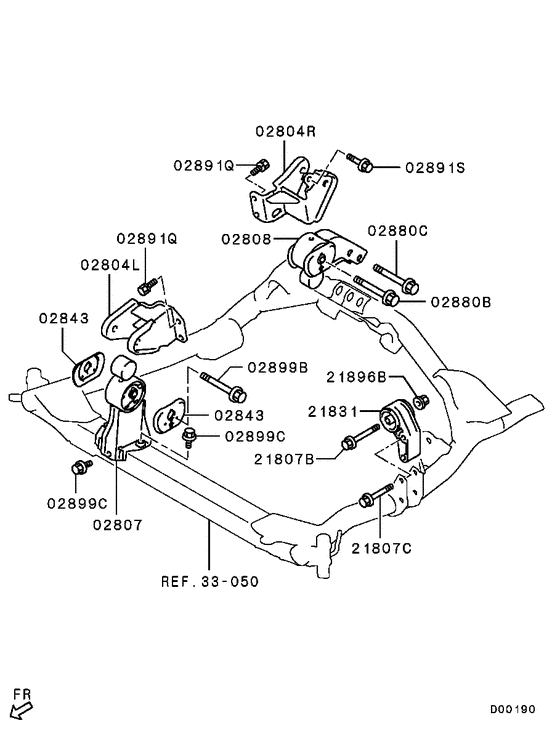

Engine mounting & support (M/T) Diagram Mitsubishi EK-SERIES
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- M(2WD),5FM/T<WAGON>
- drive
- 2WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD357616 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD357616 |
US $71.78 |
||
|
02804R
|
02804R
MD357617 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD357617 |
US $79.18 |
||
|
02807
|
02807
1091A007 BRACKET, ENG FR MOUNTING |
1091A007 |
US $78.44 |
||
|
02808
|
02808
1091A008 BRACKET, ENG RR MOUNTING |
1091A008 |
US $69.56 |
||
|
02843
|
02843
MR448333 STOPPER, ENG FR MOUNTING CUSHION |
MR448333 |
US $4.44 |
||
|
02880B
|
02880B
MU140044 BOLT, FR DIFF MOUNTINGFlange,12x90 |
MU140044 |
US $6.98 |
||
|
02880C
|
02880C
MU140062 BOLT, RR SWAY BARFlange,12x65 |
MU140062 |
US $6.16 |
||
|
02891Q
|
02891Q
MF241881 BOLT, ENG MOUNTINGWasher assembled,10x22 |
MF241881 |
US $2.52 |
||
|
02891S
|
02891S
MF140269 BOLT, ENG RR PLATEFlange,10x55 |
MF140269 |
from US $2.52 |
||
|
02899B
|
02899B
MU140044 BOLT, FR DIFF MOUNTINGFlange,12x90 |
MU140044 |
US $6.98 |
||
|
02899C
|
02899C
MU140050 BOLT, ENG FR MOUNTINGFlange,10x25 |
MU140050 |
from US $1.17 |
||
|
21807B
|
21807B
MU140048 BOLT, T/M MOUNTINGFlange,10x76 |
MU140048 |
US $2.07 |
||
|
21807C
|
21807C
MU140047 BOLT, ENG RR MOUNTINGFlange,10x60 |
MU140047 |
US $3.55 |
||
|
21831
|
21831
MR319230 BRACKET, T/M MOUNTING BODY SIDE |
MR319230 |
US $24.42 |
||
|
21896B
|
21896B
MB200979 NUT, ENG RR MOUNTINGFlange,10 |
MB200979 |
from US $1.58 |
||
|
