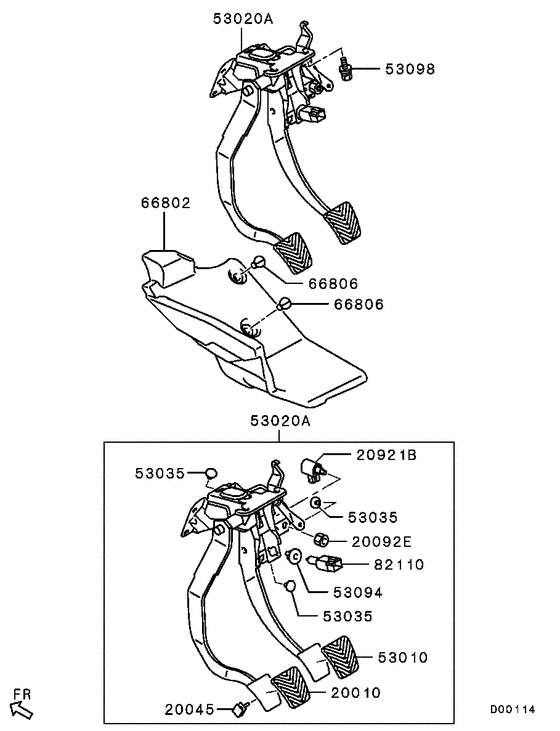

Brake & clutch pedal (M/T) Diagram Mitsubishi EK-SERIES
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- M(4WD),5FM/T<WAGON>
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20045
|
20045
MB599166 STOPPER, CLUTCH PEDAL |
MB599166 |
from US $1.46 |
||
|
20092E
|
20092E
MF430726 NUT, FLYWHEEL HOUSINGJam,10 |
MF430726 |
from US $1.01 |
||
|
20921B
|
20921B
8606A002 SWITCH, CLUTCH |
8606A002 |
US $10.95 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53020A
|
53020A
4620A129 PEDAL & BRACKET ASSY, BRAKE & CLUTCH |
4620A129 |
US $96.20 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR228931 CLIP, BRAKE PEDAL |
MR228931 |
US $3.70 |
||
|
53098
|
53098
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66802
|
66802
7655A028 FOOTREST |
7655A028 |
US $15.54 |
||
|
66806
|
66806
MB662196 CLIP, FOOTREST6 |
MB662196 |
US $3.28 |
||
|
82110
|
82110
8614A049 SWITCH, STOP LAMP |
8614A049 |
US $17.02 |
