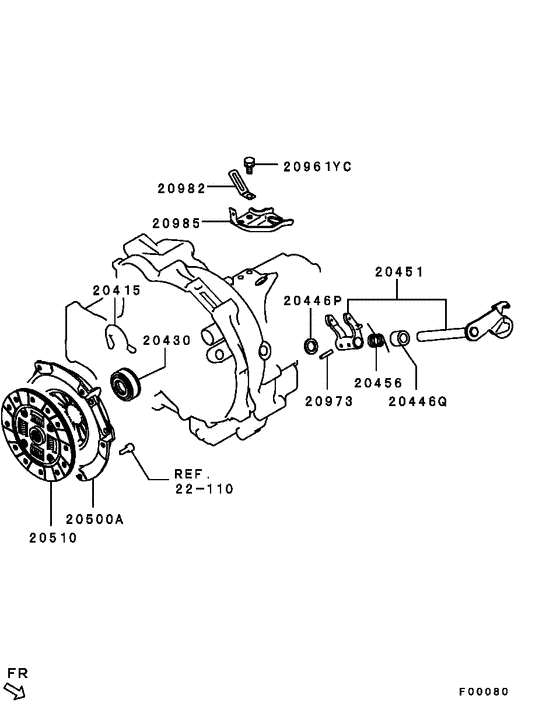

Clutch & clutch release (4WD) Diagram Mitsubishi EK-SERIES
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- M(4WD),5FM/T<WAGON>
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20415
|
20415
MD739624 CLIP, M/T CLUTCH CONTROL EQUIP |
MD739624 |
US $4.14 |
||
|
20430
|
20430
MR388803 BEARING, CLUTCH RELEASEBall,57.6 |
MR388803 |
US $37.62 |
||
|
20446P
|
20446P
MD706196 SEAL, CLUTCH RELEASE FORK SHAFT |
MD706196 |
US $2.07 |
||
|
20446Q
|
20446Q
MD706195 SEAL, CLUTCH RELEASE FORK SHAFT |
MD706195 |
US $4.65 |
||
|
20451
|
20451
MR430723 SHAFT & FORK, CLUTCH RELEASE |
MR430723 |
US $82.14 |
||
|
20456
|
20456
MD711742 SPRING, CLUTCH RELEASE FORK RETURN |
MD711742 |
US $1.92 |
||
|
20500A
|
20500A
MN113766 COVER ASSY, CLUTCH |
MN113766 |
US $110.12 |
||
|
20510
|
20510
MN113767 DISC, CLUTCH170 |
MN113767 |
US $110.12 |
||
|
20961YC
|
20961YC
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
20973
|
20973
MF472572 SPRING PIN, M/T CLUTCH CONTROL EQUIP5x22 |
MF472572 |
US $2.60 |
||
|
20982
|
20982
MS470057 CLIP, ENG BREATHERL=40 |
MS470057 |
US $3.69 |
||
|
20985
|
20985
MR453075 BRACKET, M/T CLUTCH CONTROL EQUIP |
MR453075 |
US $11.84 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
