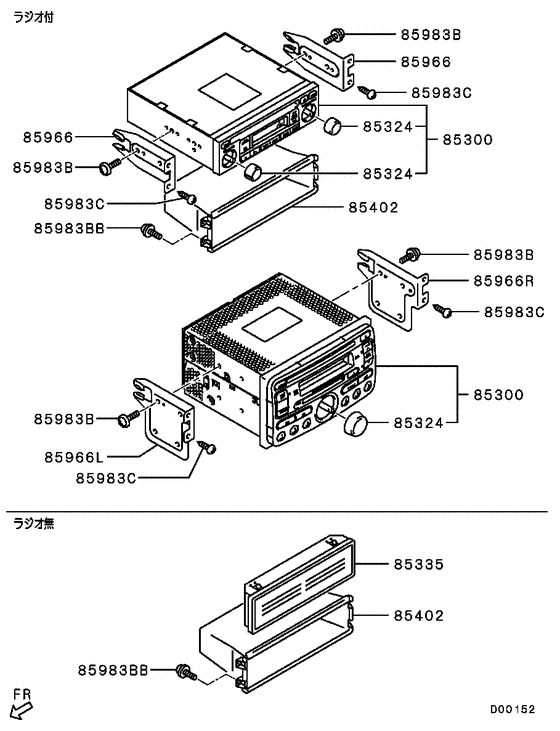

Radio & audio accessories (RADIO,ETC.) Diagram Mitsubishi EK-SERIES
- Year
- 2008 - 2009
- Sales region
- Japan
- Note
- MX(2WD),4A/T<WAGON>
- drive
- 2WD
- grade
- MX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85300
|
85300
8701A124
RADIO
|
8701A124 |
— | ||
|
85300
|
85300
8701A125HB RADIOAm/fm,etr,cd,md,2din |
8701A125HB |
US $1,004.64 |
||
|
85300
|
85300
8701A125WA RADIOAm/fm,etr,cd,md,2din |
8701A125WA |
US $931.84 |
||
|
85324
|
85324
8701A177
KNOB, AUDIO EQUIP
|
8701A177 |
— | ||
|
85324
|
85324
MR309958 KNOB, AUDIO EQUIPMain,vol |
MR309958 |
US $5.64 |
||
|
85402
|
85402
MB898861 BOX, STEREO ACCESSORY |
MB898861 |
US $29.60 |
||
| replacement | |||||
|
85402
|
85402
MN124542 BOX, STEREO ACCESSORY |
MN124542 |
US $28.12 |
||
|
85966
|
85966
MR330703 BRACKET, AUDIO EQUIP |
MR330703 |
US $7.93 |
||
|
85966L
|
85966L
8701A133 BRACKET, AUDIO EQUIP, LH |
8701A133 |
US $7.99 |
||
|
85966R
|
85966R
8701A134 BRACKET, AUDIO EQUIP, RH |
8701A134 |
US $7.99 |
||
|
85983B
|
85983B
MS200329 SCREW, ENG CONTROL EQUIPMachine flange,5x8 |
MS200329 |
from US $2.22 |
||
|
85983BB
|
85983BB
MB409436 SCREW, STEERING COLUMN COVERTapping,4x12 |
MB409436 |
US $4.10 |
||
|
85983C
|
85983C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
