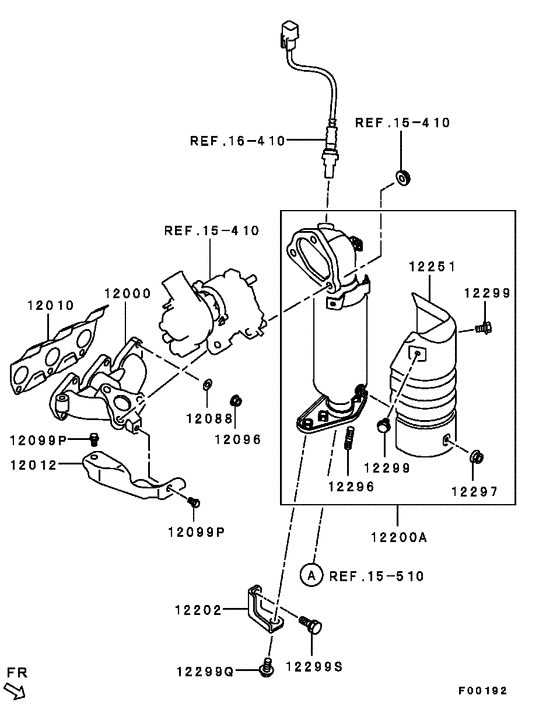

Exhaust manifold (W/TURBO) Diagram Mitsubishi EK-SERIES
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- RS(2WD/TURBO/SLIDE DOOR),4A/T<SPORT>
- drive
- 2WD
- grade
- RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12000
|
12000
MN122371 MANIFOLD, EXHAUST |
MN122371 |
US $241.24 |
||
|
12010
|
12010
MR561862 GASKET, EXHAUST MANIFOLD |
MR561862 |
US $13.91 |
||
|
12012
|
12012
MR988418 COVER, EXHAUST MANIFOLD |
MR988418 |
US $28.12 |
||
|
12088
|
12088
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
12096
|
12096
MR212302 NUT, EXHAUST MANIFOLDFlange,8 |
MR212302 |
from US $1.33 |
||
|
12099P
|
12099P
MD067956 BOLT, EXHAUST MANIFOLDFlange,8x12 |
MD067956 |
from US $1.23 |
||
|
12200A
|
12200A
1584A314 CONVERTER ASSY, CATALYTIC |
1584A314 |
US $767.31 |
||
|
12202
|
12202
MR450961 BRACKET, EXHAUST MANIFOLD |
MR450961 |
US $13.47 |
||
|
12251
|
12251
1555A303 PROTECTOR, CATALYTIC CONVERTER |
1555A303 |
US $29.60 |
||
|
12296
|
12296
MR373990 STUD, CATALYTIC CONVERTER10x23 |
MR373990 |
US $3.40 |
||
|
12297
|
12297
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
12299
|
12299
MD185674 BOLT, EXHAUST MANIFOLDFlange,6x10 |
MD185674 |
US $1.92 |
||
|
12299Q
|
12299Q
MF244879 BOLT, RR SEATWasher assembled,10x22 |
MF244879 |
US $4.24 |
||
|
12299S
|
12299S
MF241283 BOLT, CYLINDER BLOCKWasher assembled,10x28 |
MF241283 |
from US $1.58 |
||
|
