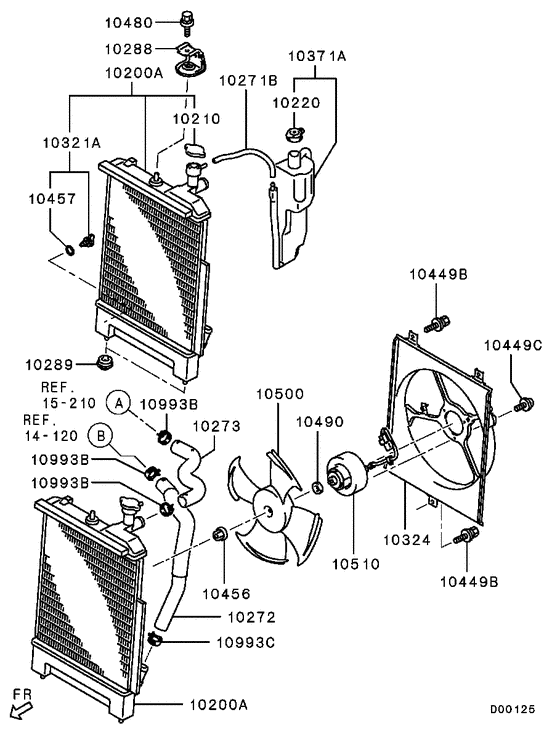

Radiator,hose & condenser tank (W/TURBO) Diagram Mitsubishi EK-SERIES
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- RS(2WD/TURBO/SLIDE DOOR),4A/T<SPORT>
- drive
- 2WD
- grade
- RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MR597551 RADIATOR ASSY |
MR597551 |
US $851.76 |
||
|
10210
|
10210
MR968532 CAP, RADIATOR |
MR968532 |
from US $13.83 |
||
|
10220
|
10220
MR597536 CAP, RADIATOR CONDENSER TANK |
MR597536 |
from US $2.94 |
||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10272
|
10272
MN115479 HOSE, RADIATOR, LWR |
MN115479 |
US $30.34 |
||
|
10273
|
10273
1370A362 HOSE, RADIATOR, UPR LH |
1370A362 |
US $16.28 |
||
|
10273
|
10273
MN115478 HOSE, RADIATOR, UPR |
MN115478 |
US $18.50 |
||
| replacement | |||||
|
10273
|
10273
1370A362 HOSE, RADIATOR, UPR LH |
1370A362 |
US $16.28 |
||
|
10288
|
10288
MN135627 SUPPORT, RADIATOR |
MN135627 |
US $13.32 |
||
|
10289
|
10289
MN115254 INSULATOR, RADIATOR SUPPORT, LWR |
MN115254 |
US $5.18 |
||
|
10321A
|
10321A
MB860977 PLUG ASSY, RADIATOR |
MB860977 |
from US $5.48 |
||
|
10324
|
10324
MN115003 SHROUD, COOLING FAN |
MN115003 |
US $80.66 |
||
|
10371A
|
10371A
1375A070 TANK ASSY, RADIATOR CONDENSER |
1375A070 |
US $20.72 |
||
|
10449B
|
10449B
MN115002 BOLT, RADIATORWasher assembled |
MN115002 |
US $1.92 |
||
|
10449C
|
10449C
MN115006 BOLT, RADIATOR |
MN115006 |
US $10.21 |
||
|
10456
|
10456
MR993124 NUT, RADIATOR |
MR993124 |
US $1.92 |
||
|
10457
|
10457
MB845093 O-RING, RADIATOR |
MB845093 |
US $2.07 |
||
|
10480
|
10480
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10490
|
10490
MR993125 SPACER, RADIATOR |
MR993125 |
US $3.40 |
||
|
10500
|
10500
MN115005 FAN, COOLING |
MN115005 |
US $41.44 |
||
|
10510
|
10510
MN115004 MOTOR, COOLING FAN |
MN115004 |
US $263.44 |
||
|
10993B
|
10993B
MR404537 CLIP, RADIATOR PIPINGD=31 |
MR404537 |
from US $3.26 |
||
|
10993C
|
10993C
MR993230 CLIP, RADIATOR PIPINGD=32.4 |
MR993230 |
from US $2.93 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
