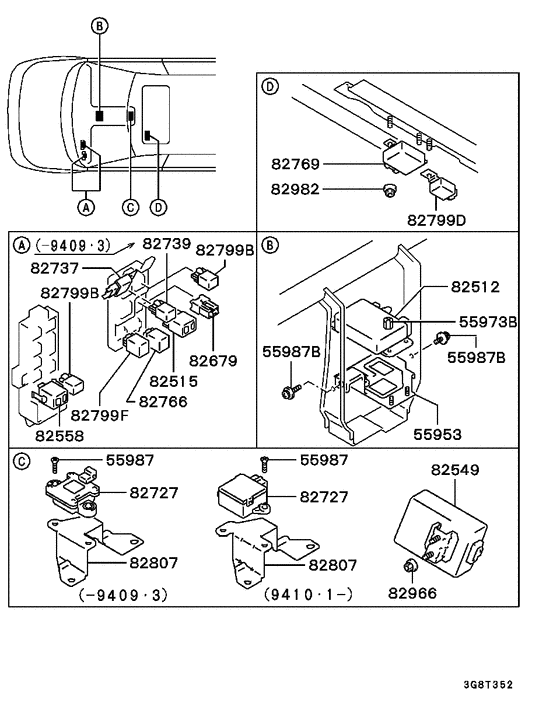

Relay,flasher & sensor (RELAY(AROUND COWL SIDE & DASH PANEL)) Diagram Mitsubishi EXPO
- Year
- 1991 - 1992
- Sales region
- MMNA
- Note
- LOW LINE,5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- LOW LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55973B
|
55973B
MB823327 NUT, ABS CONTROL EQUIP20(6x11) |
MB823327 |
US $7.84 |
||
|
55973B
|
55973B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
55987B
|
55987B
MS350134 SCREW, ENG CONTROL EQUIPWasher assembled,6x12 |
MS350134 |
US $3.40 |
||
|
82515
|
82515
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
||
|
82549
|
82549
MB801346
CONTROL UNIT,AUTO SEAT BELT
|
MB801346 |
— | ||
|
82549
|
82549
MR122516
CONTROL UNIT,AUTO SEAT BELT
|
MR122516 |
— | ||
|
82558
|
82558
MB338226 FLASHER UNIT, HAZARD & TURN SIGNAL LAMP466052 0000 |
MB338226 |
from US $31.82 |
||
|
82679
|
82679
MB823550
CONNECTOR,MAIN HARNESS JUMPER
|
MB823550 |
— | ||
|
82766
|
82766
MB629081
RELAY
|
MB629081 |
— | ||
|
82799B
|
82799B
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82799F
|
82799F
MB629080 RELAY, SPECIAL LAMP156700-0110 |
MB629080 |
US $43.66 |
||
|
82966
|
82966
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
82982
|
82982
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
