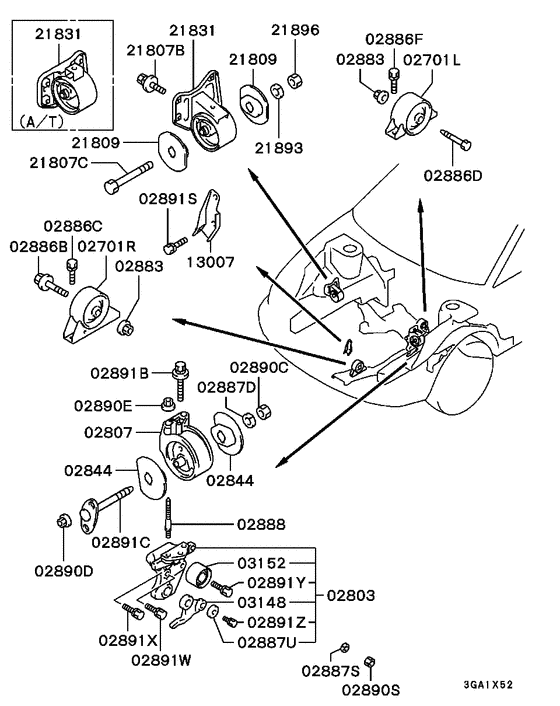

Engine mounting & support (ALL) Diagram Mitsubishi EXPO
- Year
- 1991 - 1996
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MB581301 BRACKET, ENG ROLL STOPPER, LH |
MB581301 |
US $147.26 |
||
|
02701L
|
02701L
MB691491 BRACKET, ENG ROLL STOPPER, LH |
MB691491 |
from US $76.01 |
||
|
02701R
|
02701R
MB581286 BRACKET, ENG ROLL STOPPER, RH |
MB581286 |
US $147.26 |
||
|
02701R
|
02701R
MB910982 BRACKET, ENG ROLL STOPPER, RH |
MB910982 |
US $158.36 |
||
|
02803
|
02803
MD121146 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD121146 |
US $124.32 |
||
|
02803
|
02803
MD189178 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD189178 |
US $155.40 |
||
|
02807
|
02807
MB581515
BRACKET,ENG FR MOUNTING
|
MB581515 |
— | ||
|
02807
|
02807
MB948000 BRACKET, ENG FR MOUNTING |
MB948000 |
US $169.63 |
||
|
02844
|
02844
MB691476 STOPPER, ENG RR MOUNTING CUSHION |
MB691476 |
US $22.94 |
||
|
02844
|
02844
MB892818
STOPPER, ENG RR MOUNTING CUSHION
|
MB892818 |
— | ||
|
02883
|
02883
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883
|
02883
MB288462V
nut
|
MB288462V |
— | ||
|
02886B
|
02886B
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.40 |
||
|
02886C
|
02886C
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
02886D
|
02886D
MB691358 BOLT, ENG SUPPORT RODCone point,10x85 |
MB691358 |
US $6.36 |
||
|
02886F
|
02886F
MU240128
BOLT, ENG SUPPORT ROD
|
MU240128 |
— | ||
|
02887D
|
02887D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02887S
|
02887S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02887U
|
02887U
MD129421 WASHER, ENG MOUNTINGPlain,8 |
MD129421 |
US $8.21 |
||
|
02888
|
02888
MD184155
STUD, ENG MOUNTING
|
MD184155 |
— | ||
| replacement | |||||
|
02888
|
02888
MD327165 STUD, ENG MOUNTING10x71 |
MD327165 |
US $11.49 |
||
|
02890C
|
02890C
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
02890D
|
02890D
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02890E
|
02890E
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
02890S
|
02890S
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02891B
|
02891B
MB006929 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB006929 |
US $7.66 |
||
|
02891B
|
02891B
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891C
|
02891C
MB175769
BOLT, ENG MOUNTING
|
MB175769 |
— | ||
|
02891S
|
02891S
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
02891S
|
02891S
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02891W
|
02891W
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891W
|
02891W
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891X
|
02891X
MD194109 BOLT, ENG MOUNTINGW/sealant,10x22 |
MD194109 |
US $3.15 |
||
|
02891X
|
02891X
MD194110 BOLT, ENG MOUNTINGW/sealant,10x30 |
MD194110 |
US $3.55 |
||
|
02891X
|
02891X
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891Y
|
02891Y
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891Z
|
02891Z
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
03148
|
03148
MD170402 ARM, TIMING BELT TENSIONER |
MD170402 |
US $59.20 |
||
|
03152
|
03152
MD156604 PULLEY, TIMING BELT IDLER |
MD156604 |
from US $38.63 |
||
|
13007
|
13007
MD083606 BRACKET, EXHAUST PIPE SUPPORT |
MD083606 |
US $11.25 |
||
|
13007
|
13007
MD124901 BRACKET, EXHAUST PIPE SUPPORT |
MD124901 |
US $27.38 |
||
|
21807B
|
21807B
MB309345
BOLT, ENG RR MOUNTING
|
MB309345 |
— | ||
|
21807C
|
21807C
MF104927 BOLT, ENG FR MOUNTING12x100 |
MF104927 |
US $4.92 |
||
|
21809
|
21809
MB691477 STOPPER, T/M MOUNTING |
MB691477 |
US $12.28 |
||
|
21809
|
21809
MB949453 STOPPER, T/M MOUNTING |
MB949453 |
US $12.28 |
||
|
21831
|
21831
MB581330 BRACKET, T/M MOUNTING BODY SIDE |
MB581330 |
US $156.88 |
||
|
21831
|
21831
MB948004 BRACKET, T/M MOUNTING BODY SIDE |
MB948004 |
US $156.88 |
||
|
21893
|
21893
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
21896
|
21896
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
