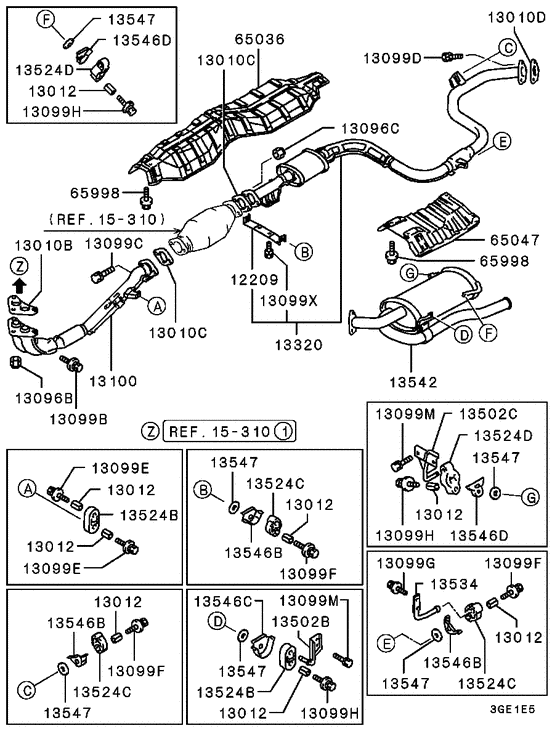

Exhaust pipe & muffler (W/O FCC) Diagram Mitsubishi EXPO
- Year
- 1991 - 1996
- Sales region
- MMNA
- Note
- PREMIUM LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB687220 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB687220 |
US $17.02 |
||
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012
|
13012
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099B
|
13099B
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
13099C
|
13099C
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099D
|
13099D
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099E
|
13099E
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099E
|
13099E
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099G
|
13099G
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
13099H
|
13099H
MF243661 BOLT, EXHAUST PIPEWasher assembled,8x50 |
MF243661 |
from US $1.50 |
||
|
13099M
|
13099M
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099X
|
13099X
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13100
|
13100
MB687311
PIPE,EXHAUST,FR
|
MB687311 |
— | ||
|
13100
|
13100
MB906021
PIPE,EXHAUST,FR
|
MB906021 |
— | ||
|
13100
|
13100
MB906776
PIPE,EXHAUST,FR
|
MB906776 |
— | ||
|
13320
|
13320
MB687319
PIPE,EXHAUST,CTR
|
MB687319 |
— | ||
|
13320
|
13320
MB924818
PIPE,EXHAUST,CTR
|
MB924818 |
— | ||
|
13320
|
13320
MB924819
PIPE,EXHAUST,CTR
|
MB924819 |
— | ||
|
13502B
|
13502B
MB925364 BRACKET, EXHAUST MUFFLER HANGER |
MB925364 |
US $22.20 |
||
|
13502C
|
13502C
MB925376 BRACKET, EXHAUST MUFFLER HANGER |
MB925376 |
US $26.64 |
||
|
13524B
|
13524B
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524B
|
13524B
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524C
|
13524C
MB577484 HANGER, EXHAUST MUFFLER |
MB577484 |
from US $8.99 |
||
|
13524D
|
13524D
MB514063
HANGER, EXHAUST MUFFLER
|
MB514063 |
— | ||
| replacement | |||||
|
13524D
|
13524D
MR281858 HANGER, EXHAUST MUFFLER |
MR281858 |
US $11.22 |
||
|
13534
|
13534
MB906702 HOOK, EXHAUST MUFFLER HANGER O-RING |
MB906702 |
US $25.16 |
||
|
13542
|
13542
MB687326
MUFFLER,EXHAUST MAIN
|
MB687326 |
— | ||
|
13542
|
13542
MB925385
MUFFLER,EXHAUST MAIN
|
MB925385 |
— | ||
|
13542
|
13542
MR204017
MUFFLER,EXHAUST MAIN
|
MR204017 |
— | ||
|
13546B
|
13546B
MB549135 PROTECTOR, EXHAUST MUFFLER HANGER |
MB549135 |
US $5.62 |
||
|
13546C
|
13546C
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
13546D
|
13546D
MB313866 PROTECTOR, EXHAUST MUFFLER HANGER |
MB313866 |
US $16.28 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
65036
|
65036
MB688205 PROTECTOR, CATALYTIC CONVERTER |
MB688205 |
US $113.96 |
||
|
65047
|
65047
MB688206 PROTECTOR, UNDER RR FLOOR HEAT |
MB688206 |
US $53.28 |
||
|
65047
|
65047
MB934121 PROTECTOR, UNDER RR FLOOR HEAT |
MB934121 |
US $87.32 |
||
|
65998
|
65998
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
