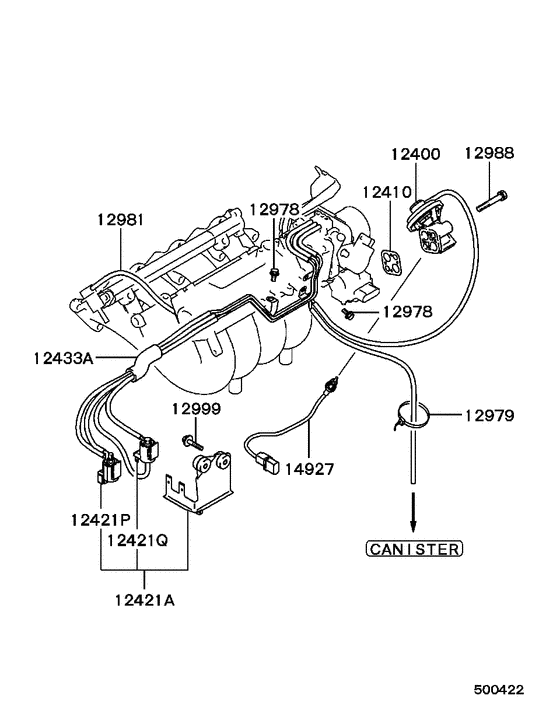

Emission control (9306.1-9405.3) Diagram Mitsubishi EXPO-LRV
- Year
- 1992 - 1993
- Sales region
- MMNA
- Note
- MEDIUM LINE(4WD),4FA/T CAL
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD130841
VALVE,EGR
|
MD130841 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.42 |
||
|
12421A
|
12421A
MD164013
VALVE ASSY,EMISSION SOLENOID
|
MD164013 |
— | ||
|
12421P
|
12421P
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12433A
|
12433A
MD172764
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD172764 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
14927
|
14927
MD183699
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD183699 |
— | ||
