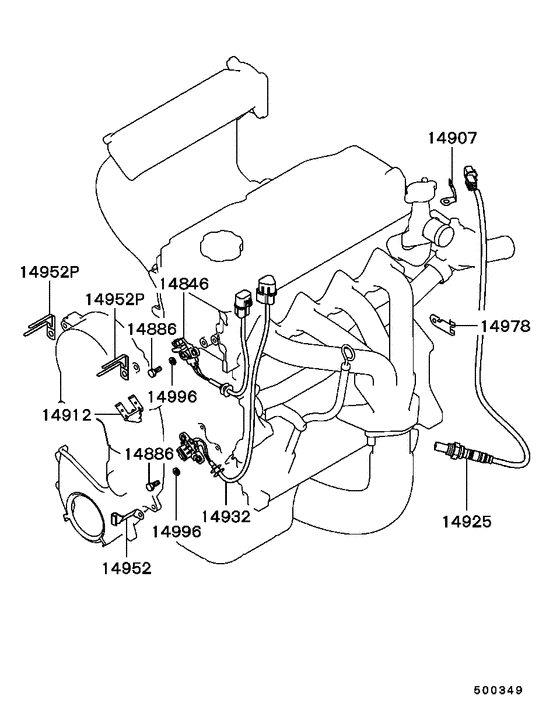

Electrical control (-9509.3 (CRANK ANGLE SENSOR ETC.)) Diagram Mitsubishi FTO
- Year
- 1994 - 2000
- Sales region
- Japan
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14846
|
14846
MD310199
SENSOR, CAMSHAFT POSITION
|
MD310199 |
— | ||
|
14846
|
14846
MD327107
SENSOR, CAMSHAFT POSITION
|
MD327107 |
— | ||
| replacement | |||||
|
14846
|
14846
23731W000P SENSOR, CAMSHAFT POSITION |
23731W000P |
from US $83.91 |
||
|
14886
|
14886
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14907
|
14907
MD318024 BRACKET, OXYGEN SENSOR CONNECTOR |
MD318024 |
US $5.62 |
||
|
14912
|
14912
MD308405 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD308405 |
US $7.84 |
||
|
14912
|
14912
MD338195 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD338195 |
US $4.59 |
||
|
14925
|
14925
MD194704 SENSOR, ENG CONTROL OXYGEN |
MD194704 |
US $556.19 |
||
|
14932
|
14932
MD303623 SENSOR, ENG CRANK ANGLE |
MD303623 |
US $136.90 |
||
|
14932
|
14932
MD327122
SENSOR, ENG CRANK ANGLE
|
MD327122 |
— | ||
| replacements | |||||
|
14932
|
14932
MR560276 SENSOR, ENG CRANK ANGLE |
MR560276 |
US $144.30 |
||
|
14932
|
14932
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14932
|
14932
MR560276 SENSOR, ENG CRANK ANGLE |
MR560276 |
US $144.30 |
||
|
14952
|
14952
MD310207 CLIP, CRANK ANGLE SENSOR |
MD310207 |
US $5.62 |
||
|
14952
|
14952
MD327102 CLIP, CRANK ANGLE SENSOR |
MD327102 |
US $4.14 |
||
|
14952P
|
14952P
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
14952P
|
14952P
MD330834 CLIP, CRANK ANGLE SENSOR |
MD330834 |
US $3.85 |
||
|
14952P
|
14952P
MD341135 CLIP, CRANK ANGLE SENSOR |
MD341135 |
US $4.14 |
||
|
14978
|
14978
MD320612 CLIP, OXYGEN SENSOR |
MD320612 |
US $5.77 |
||
|
14996
|
14996
M906987 WASHER, CRANK ANGLE SENSOR |
M906987 |
US $2.22 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
