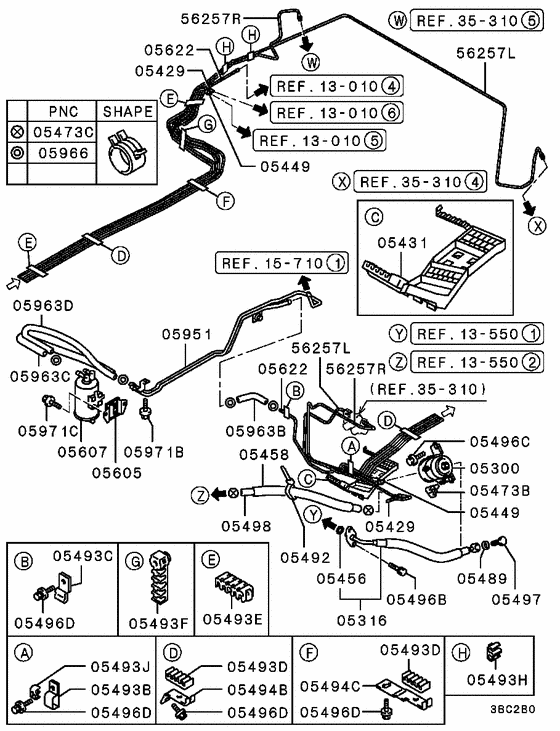

Fuel line & vapor gas control (ALL) Diagram Mitsubishi FTO
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- GP SPECIAL(MIVEC),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GP SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05300
|
05300
MB868459 FUEL FILTER |
MB868459 |
US $103.28 |
||
|
05316
|
05316
MR160246
HOSE, FUEL FILTER HIGH PRESSURE
|
MR160246 |
— | ||
|
05429
|
05429
MR160243 PIPE, FUEL RETURN |
MR160243 |
US $44.40 |
||
|
05431
|
05431
MR224943 PROTECTOR, FUEL PIPE |
MR224943 |
US $10.53 |
||
|
05449
|
05449
MR160242 PIPE, FUEL LINE |
MR160242 |
US $82.88 |
||
|
05449
|
05449
MR312503 PIPE, FUEL LINE |
MR312503 |
US $81.40 |
||
|
05456
|
05456
MB554317 O-RING, FUEL LINE11.8 |
MB554317 |
from US $2.07 |
||
|
05458
|
05458
MB044011
TUBE, FUEL RETURN LINE
|
MB044011 |
— | ||
|
05473B
|
05473B
MB906166 CLIP, FUEL LINE |
MB906166 |
US $4.74 |
||
|
05473C
|
05473C
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05489
|
05489
MB906711 GASKET, FUEL LINE |
MB906711 |
US $3.69 |
||
|
05492
|
05492
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
05493B
|
05493B
MB220876 CLIP, FUEL TANK |
MB220876 |
US $3.83 |
||
|
05493C
|
05493C
MR160249 CLIP, FUEL LINE |
MR160249 |
US $4.14 |
||
|
05493D
|
05493D
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493E
|
05493E
MB329982 CLIP, FUEL LINE |
MB329982 |
US $8.21 |
||
|
05493F
|
05493F
MB678929 CLIP, FUEL LINE |
MB678929 |
US $5.77 |
||
|
05493H
|
05493H
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493J
|
05493J
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
05494B
|
05494B
MB678928 CLAMP, FUEL LINE |
MB678928 |
US $7.80 |
||
|
05494C
|
05494C
MB845579 CLAMP, FUEL LINE |
MB845579 |
US $7.80 |
||
|
05496B
|
05496B
MU240020 BOLT, FUEL LINEWasher assembled,6x20 |
MU240020 |
US $2.37 |
||
|
05496C
|
05496C
MS240147 BOLT, GLOW CONTROL EQUIPWasher assembled,8x30 |
MS240147 |
from US $1.44 |
||
|
05496D
|
05496D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498
|
05498
MU600860 HOSE, FUEL RETURN LINE6x600 |
MU600860 |
US $24.62 |
||
|
05605
|
05605
MR160247 BRACKET, FUEL VAPOR CANISTER |
MR160247 |
US $8.73 |
||
|
05607
|
05607
MB868875
CANISTER, FUEL VAPOR
|
MB868875 |
— | ||
|
05622
|
05622
MR160244 PIPE, FUEL VAPOR |
MR160244 |
US $38.48 |
||
|
05951
|
05951
MR160250 PIPE, FUEL VAPOR CONTROL LINE |
MR160250 |
US $51.80 |
||
|
05963B
|
05963B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963C
|
05963C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963D
|
05963D
MS605298 HOSE, FUEL TANK4x2000 |
MS605298 |
US $16.28 |
||
|
05966
|
05966
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05971B
|
05971B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05971C
|
05971C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
56257L
|
56257L
MR128985 TUBE, BRAKE MAIN |
MR128985 |
US $75.48 |
||
|
56257R
|
56257R
MR128986 TUBE, BRAKE MAIN |
MR128986 |
US $62.16 |
||
|
